AIAA S-017B-2015 (R2019)

Aerodynamic Decelerator and Parachute Drawings

American Institute of Aeronautics and Astronautics , 04/30/2015

Publisher: AIAA

File Format: PDF

$47.00$94.00

Description

Standard By:American Institute of Aeronautics and Astronautics , 04/30/2015

Published:04/30/2015

Pages:84

ISBN(s):9781624103742

File Size:1 file , 13 MB

Language:English

Note:This product is restricted and cannot be purchased in the following countries Ukraine, Russia, Belarus

AIAA S-017B-2015 (R2019) PDF

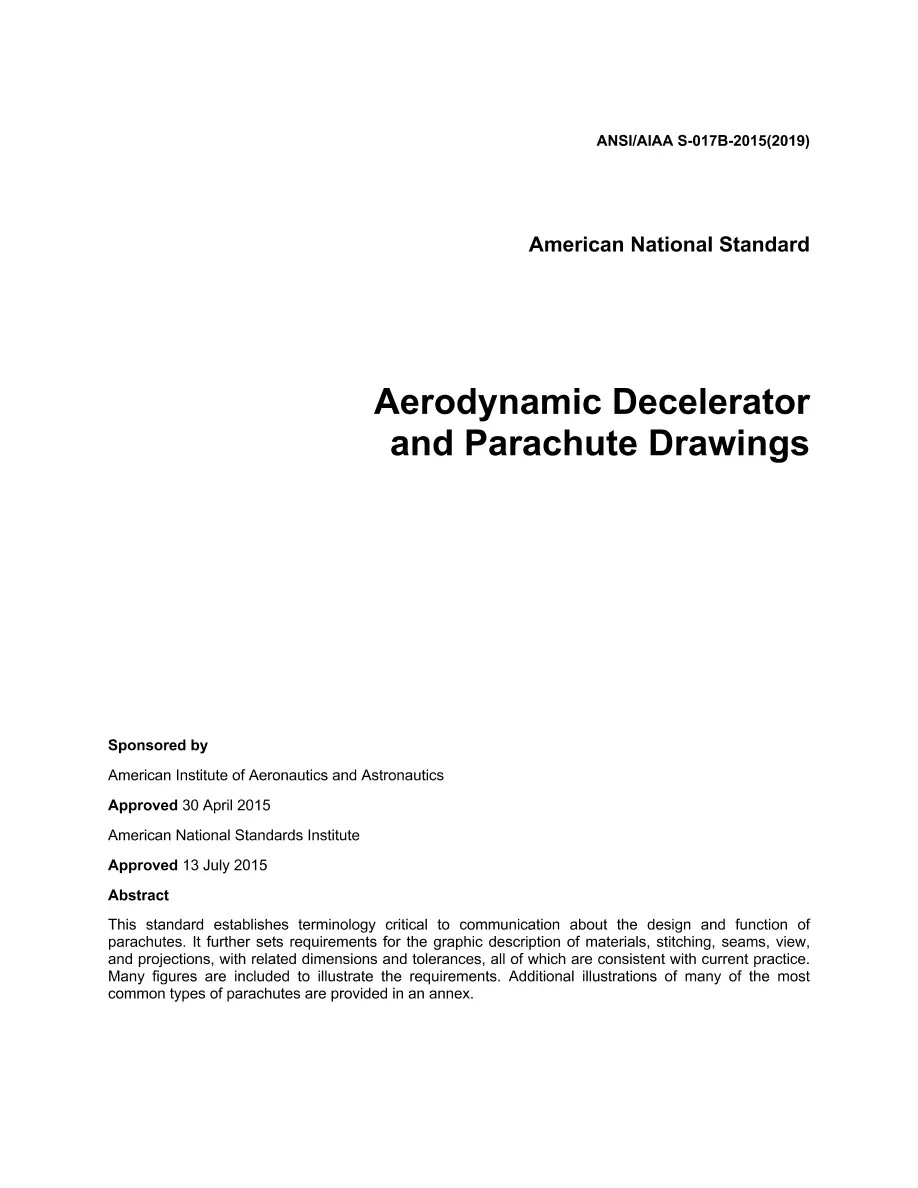

AIAA S-017B-2015 (R2019) establishes terminology for 270 terms critical to communication about the design and function of parachutes. It further sets requirements for the graphic description of materials, stitching, seams, view, and projections, with related dimensions and tolerances, all of which are consistent with current procurement practice. Many figures are included to illustrate the requirements. Additional illustrations of many of the most common types of parachutes are provided in an annex.
