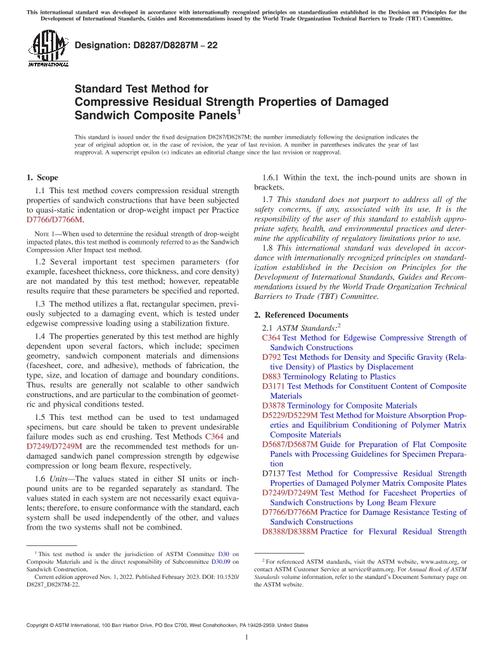

ASTM D8287/D8287M-22

1.1This test method covers compression residual strength properties of sandwich constructions that have been subjected to quasi-static indentation or drop-weight impact per Practice D7766/D7766M.

1.2Several important test specimen parameters (for example, facesheet thickness, core thickness, and core density) are not mandated by this test method; however, repeatable results require that these parameters be specified and reported.

1.3The method utilizes a flat, rectangular specimen, previously subjected to a damaging event, which is tested under edgewise compressive loading using a stabilization fixture.

1.4The properties generated by this test method are highly dependent upon several factors, which include; specimen geometry, sandwich component materials and dimensions (facesheet, core, and adhesive), methods of fabrication, the type, size, and location of damage and boundary conditions. Thus, results are generally not scalable to other sandwich constructions, and are particular to the combination of geometric and physical conditions tested.

1.5This test method can be used to test undamaged specimens, but care should be taken to prevent undesirable failure modes such as end crushing. Test Methods C364 and D7249/D7249M are the recommended test methods for undamaged sandwich panel compression strength by edgewise compression or long beam flexure, respectively.

1.6Units-The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system are not necessarily exact equivalents; therefore, to ensure conformance with the standard, each system shall be used independently of the other, and values from the two systems shall not be combined.

1.7This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.

1.8This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
