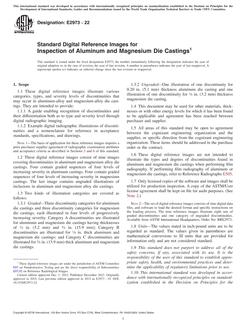

ASTM E2973-22

Standard Digital Reference Images for Inspection of Aluminum and Magnesium Die Castings

ASTM International , 12/01/2022

Publisher: ASTM

File Format: PDF

$28.00$57.00

Description

Standard By:ASTM International , 12/01/2022

Published:12/01/2022

Pages:5

File Size:1 file , 82 KB

Language:English

Note:This product is unavailable in Russia, Ukraine, Belarus

1.1These digital reference images illustrate various categories, types, and severity levels of discontinuities that may occur in aluminum-alloy and magnesium-alloy die castings. They are intended to provide:

1.1.1A guide enabling recognition of discontinuities and their differentiation both as to type and severity level through digital radiographic imaging.

1.1.2Example digital radiographic illustrations of discontinuities and a nomenclature for reference in acceptance standards, specifications, and drawings.

Note 1:The basis of application for these reference images requires a prior purchaser supplier agreement of radiographic examination attributes and acceptance criteria as described in Sections 5 and 6 of this standard.

1.2These digital reference images consist of nine images covering discontinuities in aluminum and magnesium alloy die castings. Four contain graded sequences of four levels of increasing severity in aluminum castings. Four contain graded sequences of four levels of increasing severity in magnesium castings. The last image contains ungraded illustrations of inclusions in aluminum and magnesium alloy die castings.

1.3Two kinds of illustration categories are covered as follows:

1.3.1Graded-Three discontinuity categories for aluminum die castings and three discontinuity categories for magnesium die castings, each illustrated in four levels of progressively increasing severity. Category A discontinuities are illustrated for aluminum and magnesium die castings having thicknesses of ¹/₈in. (3.2 mm) and ⁵/₈in. (15.9 mm); Category B discontinuities are illustrated for ¹/₈in. thick aluminum and magnesium die castings; and Category C discontinuities are illustrated for ⁵/₈in. (15.9 mm) thick aluminum and magnesium die castings.

1.3.2Ungraded-One illustration of one discontinuity for 0.20 in. (5.1 mm) thickness aluminum die casting and one illustration of one discontinuity for ¹/₈in. (3.2 mm) thickness magnesium die casting.

1.4This document may be used for other materials, thicknesses or with other energy levels for which it has been found to be applicable and agreement has been reached between purchaser and supplier.

1.5All areas of this standard may be open to agreement between the cognizant engineering organization and the supplier, or specific direction from the cognizant engineering organization. These items should be addressed in the purchase order or the contract.

1.6These digital reference images are not intended to illustrate the types and degrees of discontinuities found in aluminum and magnesium die castings when performing film radiography. If performing film radiography of aluminum or magnesium die castings, refer to Reference Radiographs E505.

1.7Only licensed copies of the software and images shall be utilized for production inspection. A copy of the ASTM/User license agreement shall be kept on file for audit purposes. (See Note 2.)

Note 2:The set of digital reference images consists of nine digital data files, and software to load the desired format and specific instructions on the loading process. The nine reference images illustrate eight sets of graded discontinuities and one category of ungraded discontinuities. Available from ASTM International Headquarters, Order No: RRE2973.

1.8Units-The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.

1.9This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.

1.10This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

ASTM E2973-22

Standard Digital Reference Images for Inspection of Aluminum and Magnesium Die Castings
