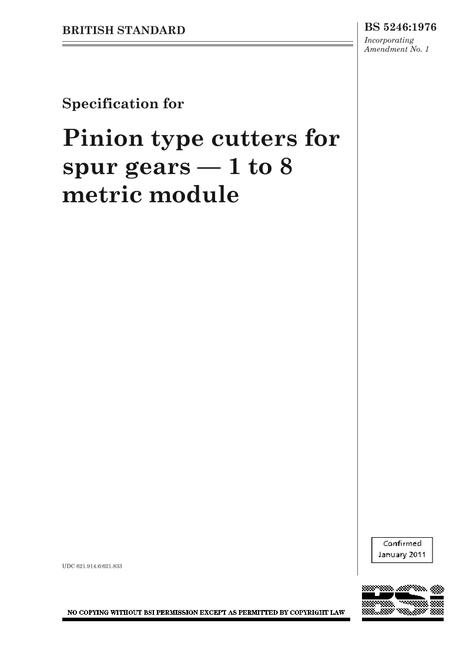

BS 5246:1976

Specification for pinion type cutters for spur gears - 1 to 8 metric module

BSI Group , 02/27/1976

Publisher: BS

File Format: PDF

$95.00$190.50

Description

Standard By:BSI Group , 02/27/1976

Published:02/27/1976

Pages:18

ISBN(s):0580085767

File Size:1 file , 530 KB

Language:English

Note:This product is unavailable in Ukraine, Russia, Belarus

Dimensions and accuracy requirements for cutters for generating involute spur gear teeth. Two tolerance grades. Covers disc, extended and screwed hub, parallel, large and No. 2 Morse stub shank types. Markings for pinion type cutters and information to give when ordering. Module gears comply with ISO 53 and 54 but more information is given in this standard.Cross References:BS 436:Part 2BS 2519ISO/R 701
