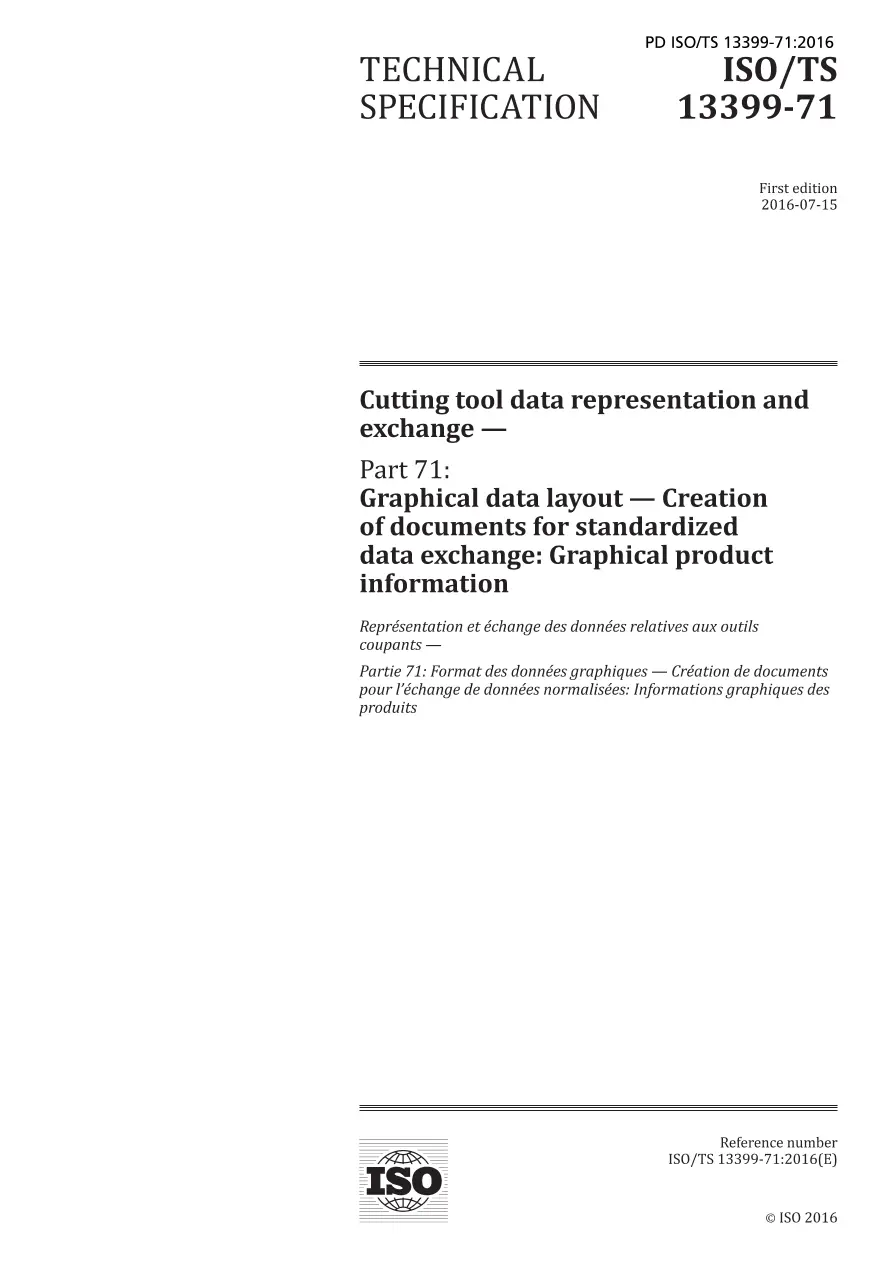

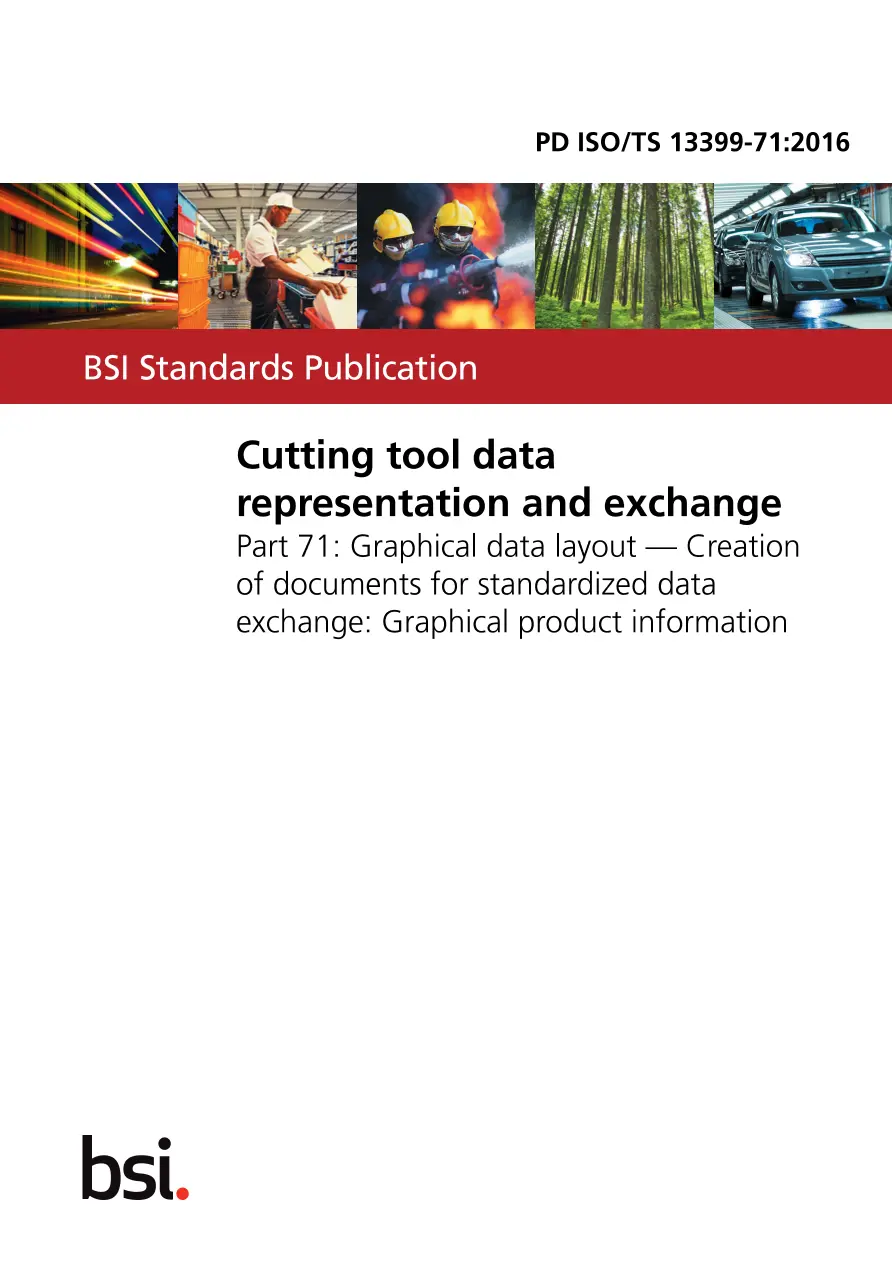

BS PD ISO/TS 13399-71:2016

BS PD ISO/TS 13399-71:2016 determines the elements to be used for the creation of 2D documentation.The individual parts of documentation are drawing content, geometrical data, drawing frame anddrawing header data as shown in Figure 1.The standardization of drawing formats, e.g. drawing frame, structure of the bill of material, are out ofthe scope of this part of ISO/TS 13399. Furthermore, it is intended to standardize the data exchange ofthe product documentation.This part of ISO/TS 13399 specifies a common way for the basic principles for the creation of productdocumentation that contain the following:

• definitions and identifications of the elements of a product documentation;
• definitions and identifications of the internal structure of the product documentation;
• definitions and identifications of those elements and features that are necessary to show theprotection notices and the copyrights of the originator of the document.

The following are outside the scope of this part of ISO/TS 13399:

• layer settings as defined in ISO/TS 13399-70;
• structure of the data exchange file using extensible mark-up language (XML);
• applications where these standard data may be stored or referenced;
• concept of the classification of cutting tool data and their properties;
• concept of the design of 2D drawings for cutting tools;
• concept of the design of 3D models for cutting tools;
• application data for the use of those cutting tools;
• information about the reconditioning of cutting tools;
• information about additional application and usage data (e.g. coolant supply).

Cross References:ISO/TS 13399-70ISO/TS 13399-72ISO 128-20ISO 6428ISO 10303-28ISO 16016ISO/TS 13399-2ISO/TS 13399-3ISO/TS 13399-4ISO/TS 13399-5
