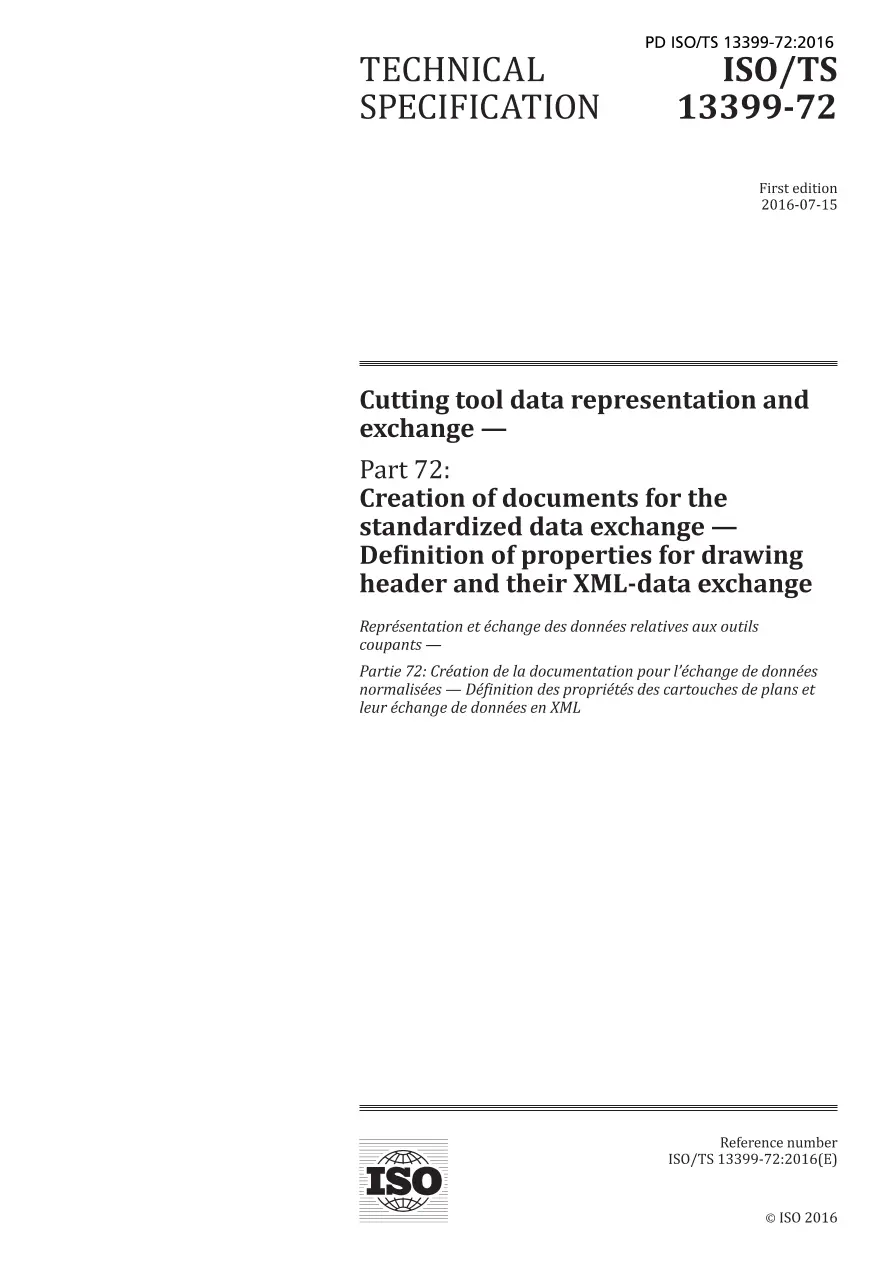

BS PD ISO/TS 13399-72:2016

BS PD ISO/TS 13399-72:2016 defines the necessary text elements of a drawing frame and determinesa standardized data exchange format. Therefore, the effort is reduced for the maintenance ofdocumentation because the content of a drawing header is mated into a specific drawing frameby means of using XML technology and an individual mapping table. The benefit of this concept formanufacturer/supplier and end user is the advantage of a central maintenance of the appropriatetemplates.This part of ISO/TS 13399 covers the following:

• identification and definition of the data fields;
• identification and definition of the structure of the data fields;
• structure of the data exchange file.

The standardization of drawing formats, e.g. drawing frame, structure of the bill of material, are outsidethe scope of this part of ISO/TS 13399 which is rather more intended to standardize the data exchangeof the product documentations.The following are outside the scope of this part of ISO/TS 13399:

• layer settings as defined in ISO/TS 13399-70;
• structure of the tool documentation as defined in ISO/TS 13399-71;
• applications where these standard data may be stored or referenced;
• concept of the classification of cutting tool data and their properties;
• concept of the design of 2D drawings for cutting tools;
• concept of the design of 3D models for cutting tools;
• application data for the use of those cutting tools;
• information about the reconditioning of cutting tools;
• information about additional application and usage data (e.g. coolant supply).

Cross References:ISO 10303-28ISO 5610-9ISO 13399-1:2006ISO/TS 13399-2 ISO/TS 13399-3ISO/TS 13399-4ISO/TS 13399-70ISO/TS 13399-71
