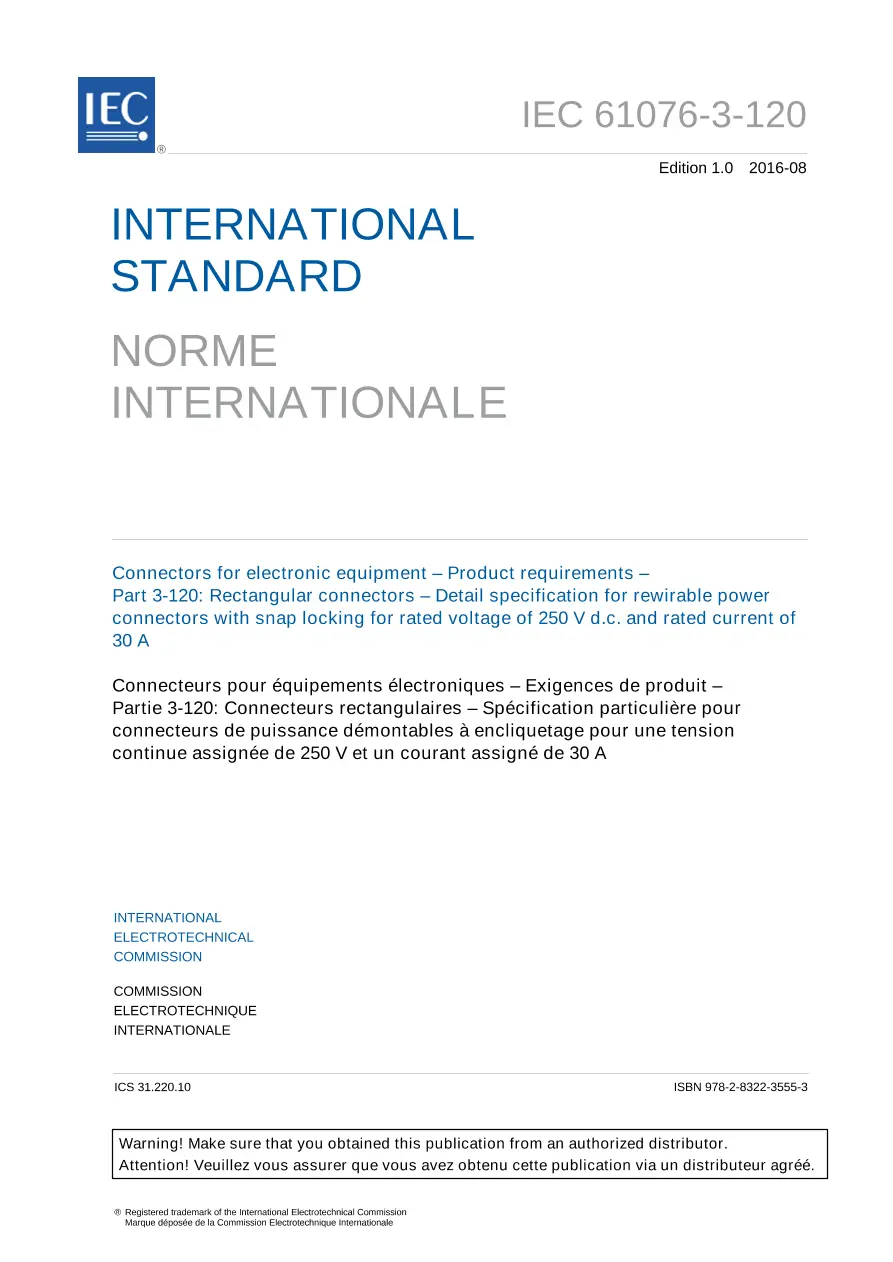

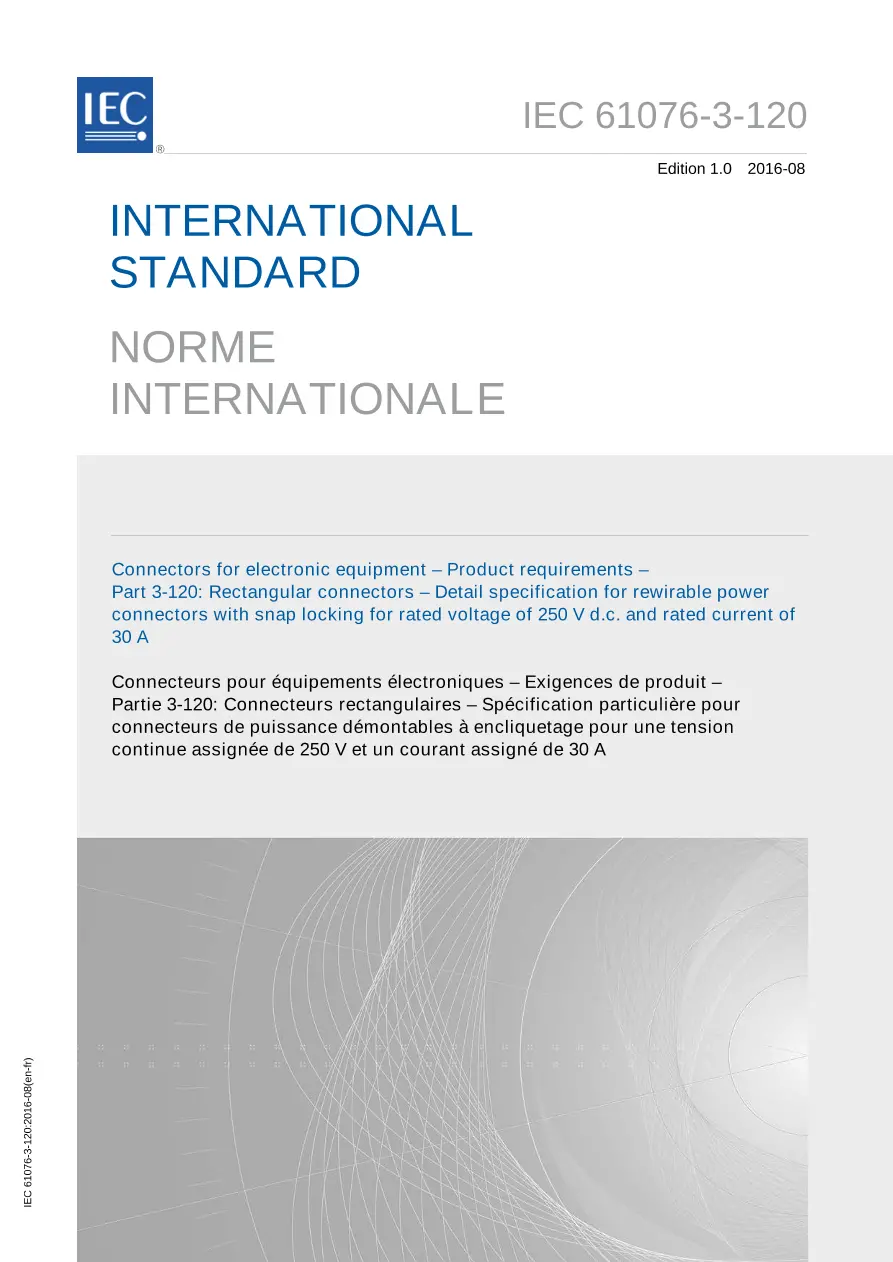

IEC 61076-3-120 Ed. 1.0 b:2016

Connectors for electronic equipment - Product requirements - Part 3-120: Rectangular connectors - Detail specification for rewirable power connectors with snap locking for rated voltage of 250 V d.c. and rated current of 30 A

International Electrotechnical Commission , 08/25/2016

Publisher: IEC

File Format: PDF

$95.00$190.00

Description

Standard By:International Electrotechnical Commission , 08/25/2016

Published:08/25/2016

Pages:50

File Size:1 file , 1.1 MB

Language:English, French

Note:This product is unavailable in Ukraine, Russia, Belarus

IEC 61076-3-120:2016 describes a 2 pole 30 A rectangular power connector with snap locking (hereinafter shortly referred to as connector), including overall dimensions, interface dimensions, technical characteristics, performance requirements and test methods. The products covered by this detail specification are connectors without breaking capacity according to IEC 61984:2008 which are mainly for use in DC power distribution equipment in the telecommunications field, such as in outdoor telecom modules, distributed frames, etc. Key words: Connectors, Rectangular Connectors, Rewirable, Snap Locking

IEC 61076-3-120 Ed. 1.0 b:2016

Connectors for electronic equipment - Product requirements - Part 3-120: Rectangular connectors - Detail specification for rewirable power connectors with snap locking for rated voltage of 250 V d.c. and rated current of 30 A
