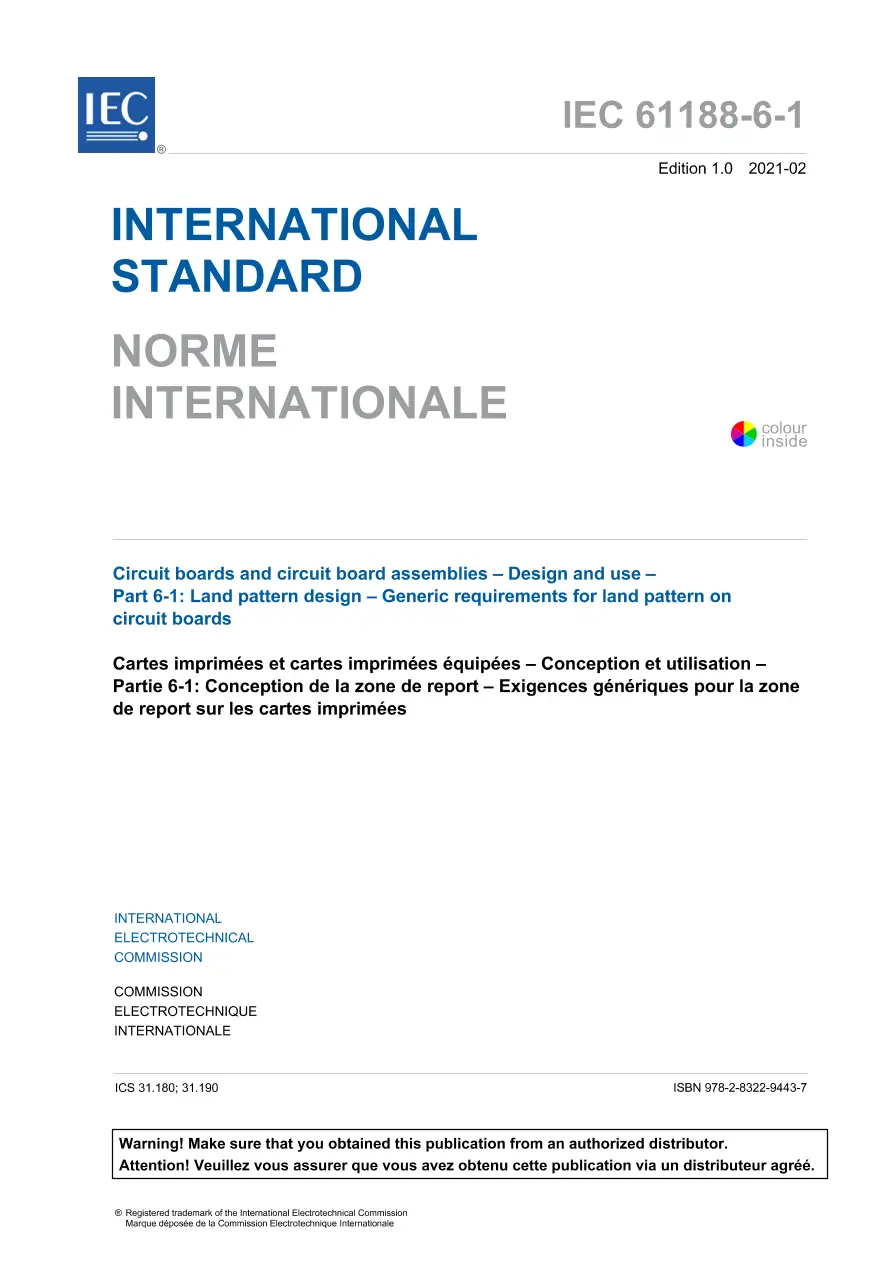

IEC 61188-6-1 Ed. 1.0 b:2021

Circuit boards and circuit board assemblies - Design and use - Part 6-1: Land pattern design - Generic requirements for land pattern on circuit boards

International Electrotechnical Commission , 02/23/2021

Publisher: IEC

File Format: PDF

$139.00$278.00

Description

Standard By:International Electrotechnical Commission , 02/23/2021

Published:02/23/2021

Pages:63

File Size:1 file , 5.7 MB

Language:English, French

Note:This product is unavailable in Ukraine, Russia, Belarus

IEC 61188-6-1:2021 specifies the requirements for soldering surfaces on circuit boards. This includes lands and land pattern for surface mounted components and also solderable hole configurations for through-hole mounted components. These requirements are based on the solder joint requirements of the IEC 61191-1, IEC 61191-2, IEC 61191-3 and IEC 61191-4.
