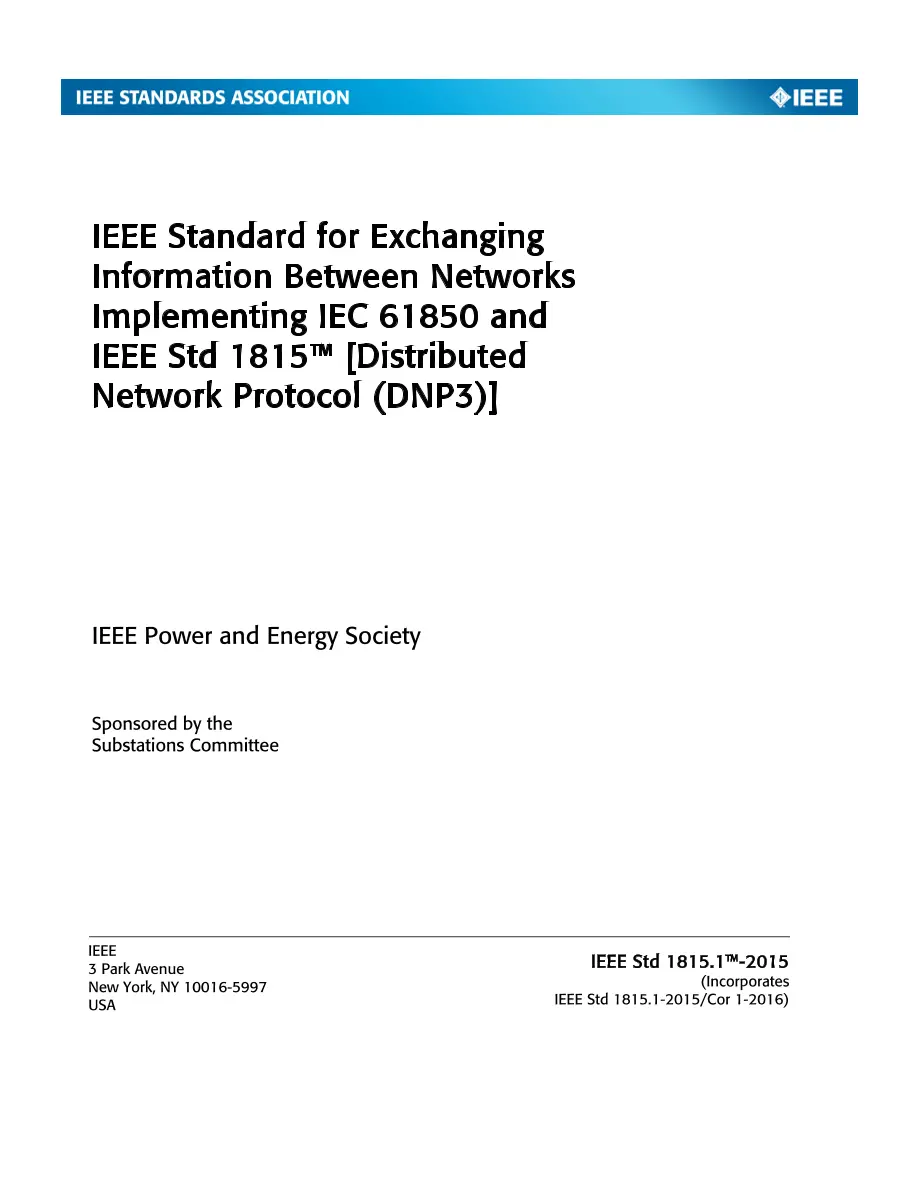

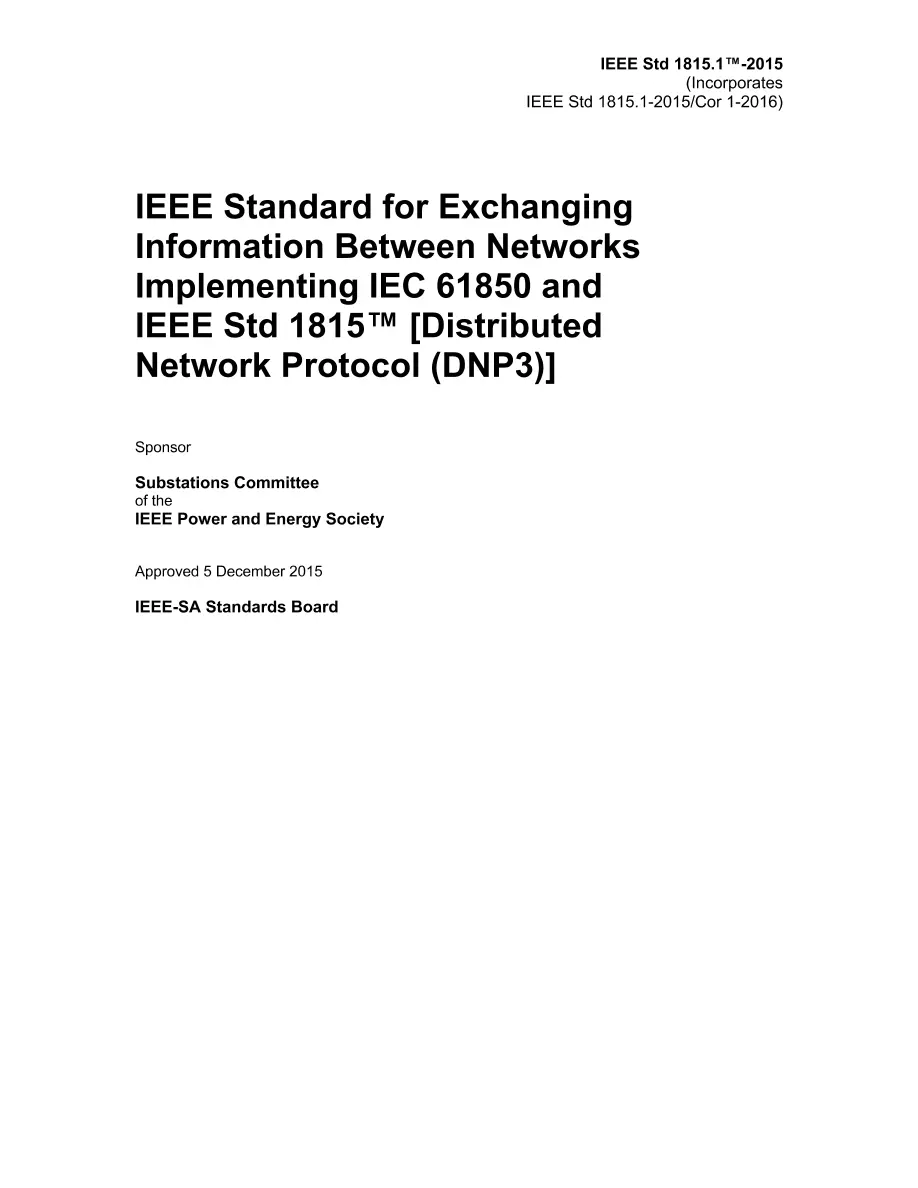

IEEE 1815.1-2015

IEEE 1815.1-2015 PDF

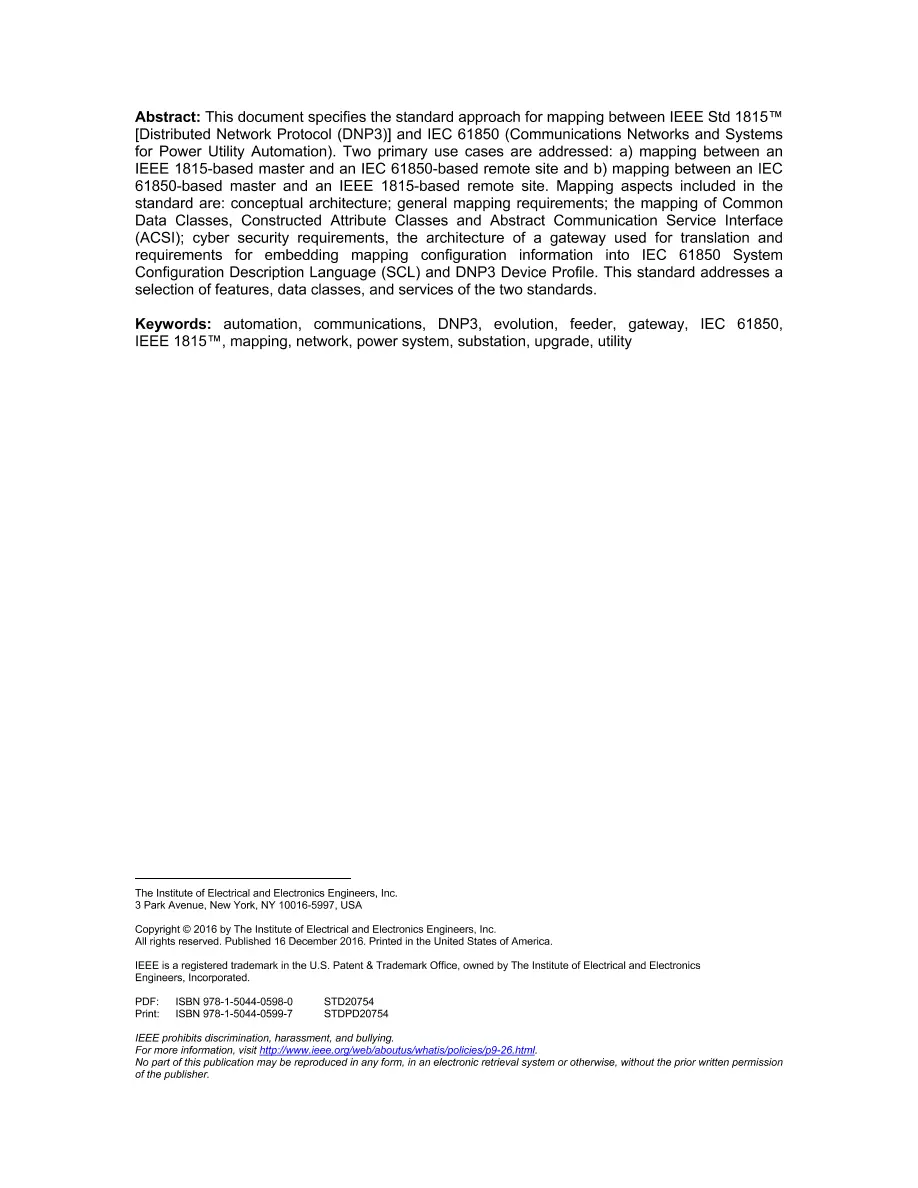

This document specifies the standard approach for mapping between IEEE Std 1815™, IEEE Standard for Electric Power Systems Communications – Distributed Network Protocol (DNP3)1,2,3 and IEC 61850, Communication networks and systems for power utility automation. Two primary use cases are addressed: Mapping between an IEEE Std 1815-based master and an IEC 61850-based server; Mapping between an IEC 61850-based client and an IEEE Std 1815-based outstation. Mapping aspects included in the standard are: conceptual architecture; general mapping requirements; the mapping of Common Data Classes, Constructed Attribute Classes and Abstract Communication Service Interface (ACSI); cyber security requirements, the architecture of a gateway used for translation and requirements for embedding mapping configuration information into IEC 61850 System Configuration Language (SCL) and DNP3 Device Profile. This standard addresses a selection of features, data classes, and services of the two standards. This Standard defines rules and methods for the exchange of information between networks implementing IEC 61850 and IEEE Std 1815 by describing the following: --Methods for mapping run-time information between the IEEE 1815 devices and the IEC 61850 devices through a gateway. The methods for doing this are described in clauses 6, 7 and 8. --Methods for automating configuration of a gateway using an IEC 61850 configuration file and a DNP3-XML file. The methods for doing are described in clause 9. Within the capability of each protocol, some configuration attributes (IEC 61850-7-3 attributes with functional constraint FC) are also mapped in addition to the operational real-time data. New IEEE Standard - Active. This document specifies the standard approach for mapping between IEEE Std 1815™ [Distributed Network Protocol (DNP3)] and IEC 61850 (Communications Networks and Systems for Power Utility Automation). Two primary use cases are addressed: a) mapping between an IEEE 1815-based master and an IEC 61850-based remote site and b) mapping between an IEC 61850-based master and an IEEE 1815-based remote site. Mapping aspects included in the standard are: conceptual architecture; general mapping requirements; the mapping of Common Data Classes, Constructed Attribute Classes and Abstract Communication Service Interface (ACSI); cyber security requirements, the architecture of a gateway used for translation and requirements for embedding mapping configuration information into IEC 61850 System Configuration Description Language (SCL) and DNP3 Device Profile. This standard addresses a selection of features, data classes, and services of the two standards. ** NOTE: Incorporates IEEE Std 1815.1-2015/Cor 1-2016, which was not published as an individual corrigendum.
