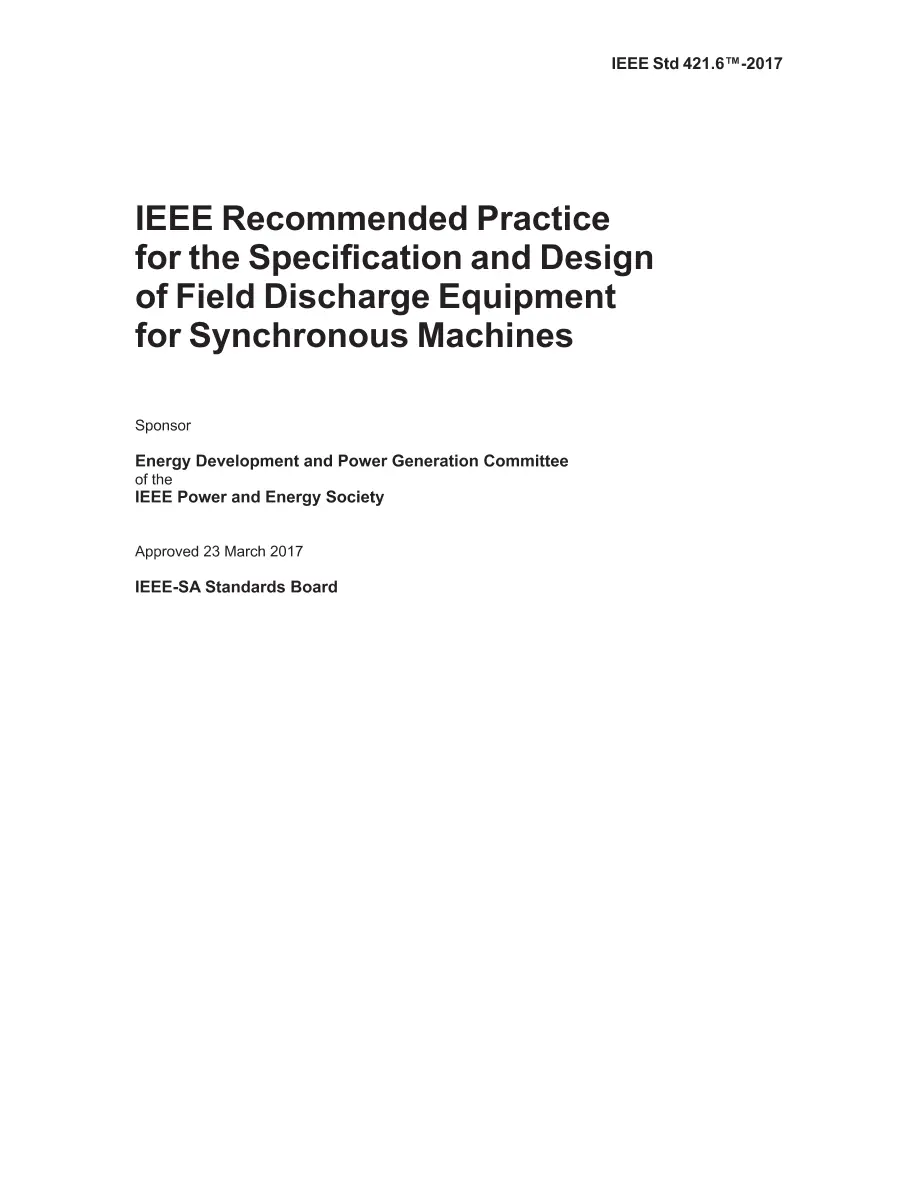

IEEE 421.6-2017

IEEE 421.6-2017 PDF

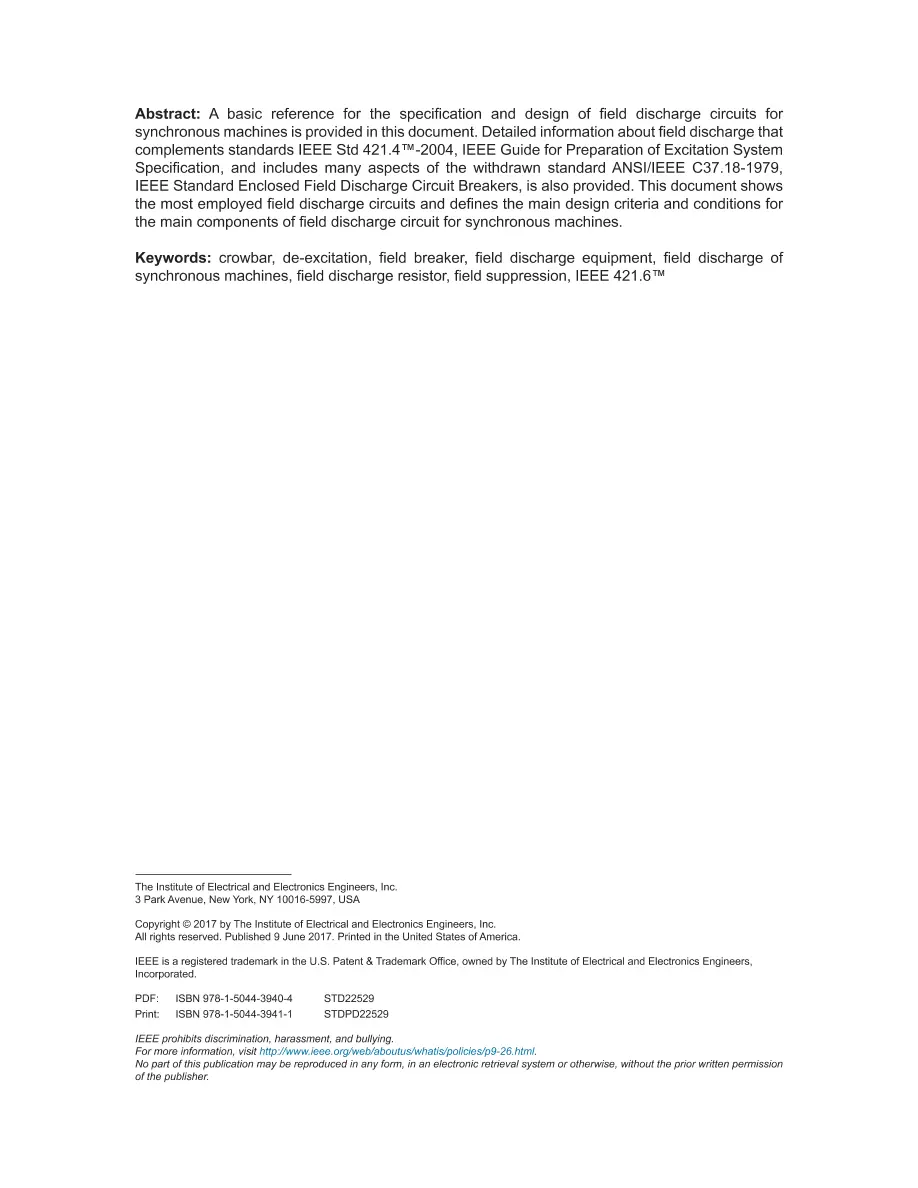

This recommended practice serves as basic reference for the specification and design of field discharge circuits for synchronous machines. It also provides detailed information about field discharge equipment complementing the IEEE 421.4(TM)-2004 Guide for Preparation of Excitation System Specification. This document includes many aspects of the withdrawn standard ANSI/IEEE C37.18-1979 IEEE Standard Enclosed Field Discharge Circuit Breakers New IEEE Standard - Active. This document is intended to serve as basic reference for the specification and design of field discharge circuits for synchronous machines. It is also intended to provide detailed information about field discharge that complements standards "IEEE 421.4.-2004 Guide for Preparation of Excitation System Specification" and includes many aspects of the withdrawn standard "ANSI/IEEE C37.18.1979 Standard Enclosed Field Discharge Circuit Breakers". This document shows the most employed field discharge circuits and defines the main design criteria and conditions for the main components of field discharge circuit for synchronous machines.
