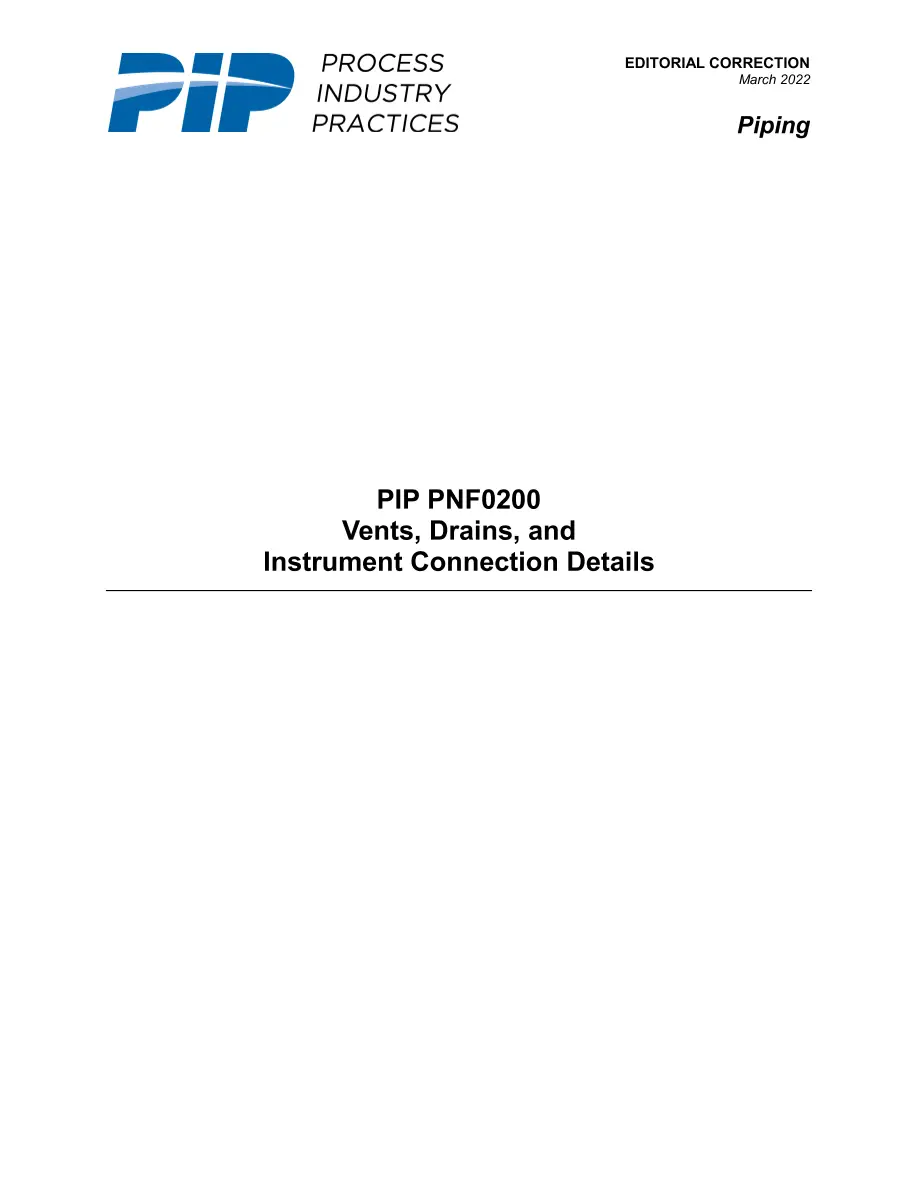

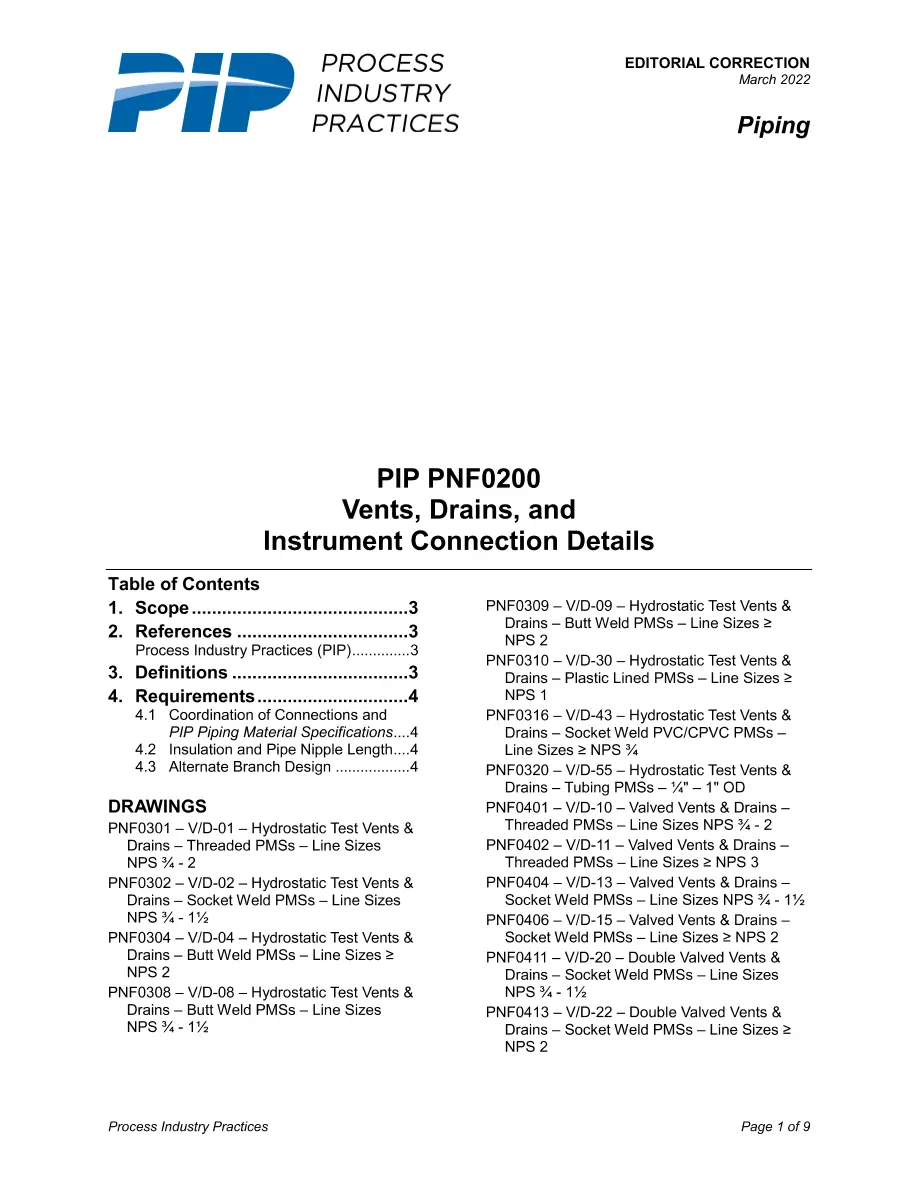

PIP PNF0200

Vents, Drains, and Instrument Connection Details [Editorial Correction]

Process Industry Practices , 03/01/2022

Publisher: PIP

File Format: PDF

$685.00$1,370.00

Description

Standard By:Process Industry Practices , 03/01/2022

Published:03/01/2022

Pages:64

File Size:1 file , 2.1 MB

Language:English

Note:This product is unavailable in Ukraine, Russia, Belarus

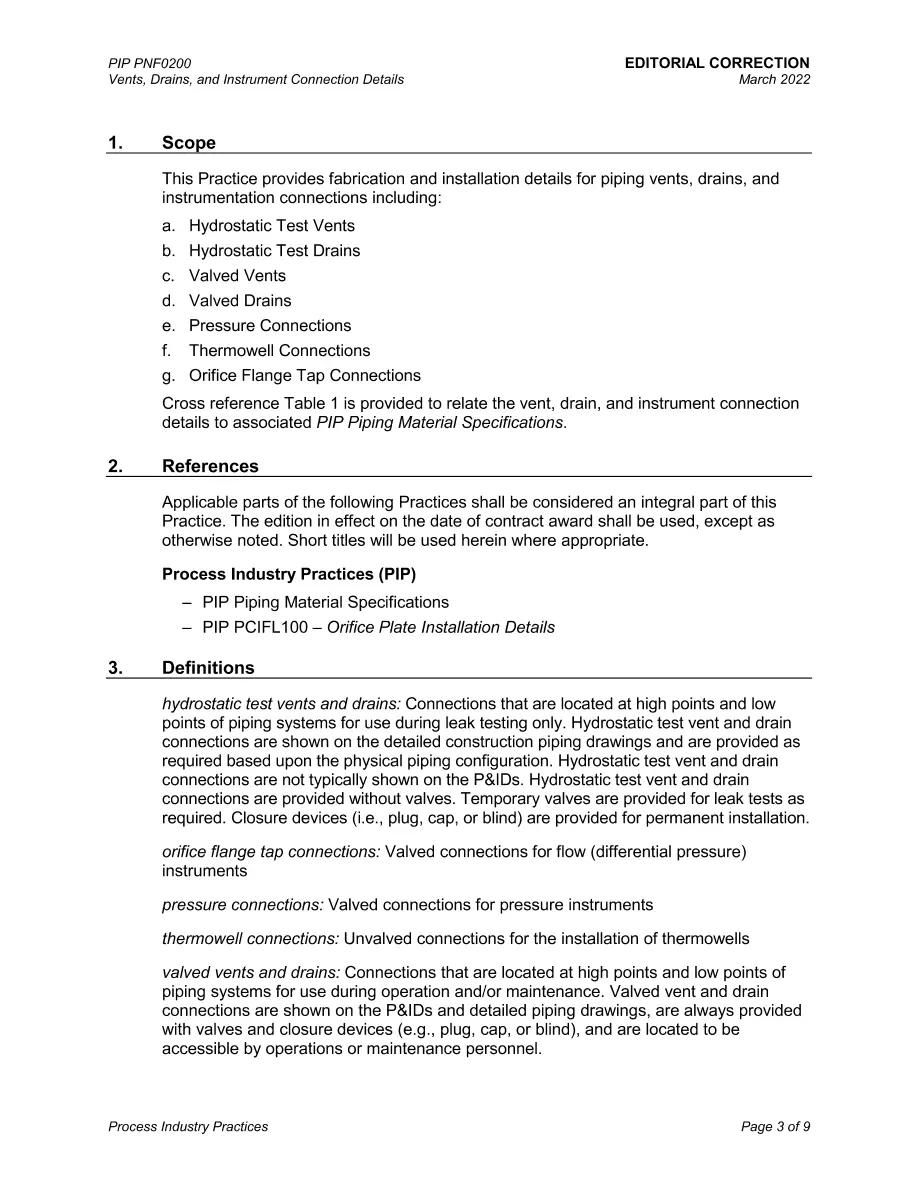

This Practice provides fabrication and installation details for piping vents, drains, and instrumentation connections including:
a. Hydrostatic Test Vents
b. Hydrostatic Test Drains
c. Valved Vents
d. Valved Drains
e. Pressure Connections
f. Thermowell Connections
g. Orifice Flange Tap Connections

Cross reference Table 1 is provided to relate the vent, drain, and instrument connection details to associated PIP Piping Material Specifications.
