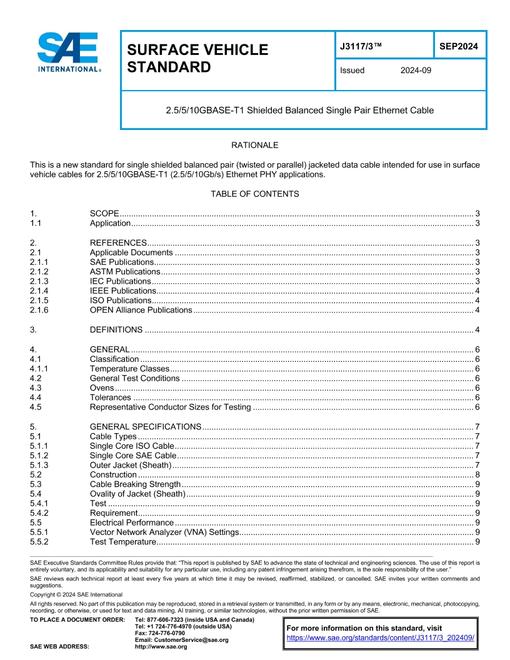

SAE J3117/3_202409

2.5/5/10GBASE-T1 Shielded Balanced Single Pair Ethernet Cable

SAE International , 09/10/2024

Publisher: SAE

File Format: PDF

$55.00$111.00

Description

Standard By:SAE International , 09/10/2024

Published:09/10/2024

File Size:1 file , 740 KB

Language:English

Note:This product is restricted and cannot be purchased in the following countries Ukraine, Russia, Belarus

This standard covers a single shielded balanced pair (twisted or parallel) jacketed data cable intended for use in surface vehicle cables for 2.5, 5, and 10 Gb/s Ethernet applications. The tests in this standard are intended to qualify cables for normal operation in an automotive environment while maintaining the necessary electrical properties for reliable data transmission.
