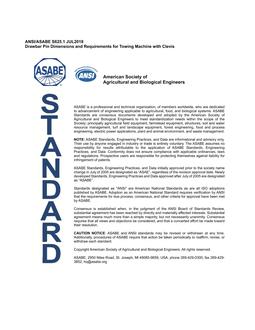

ASAE/ASABE S625.1 (R2023)

Drawbar Pin Dimensions and Requirements for Towing Machine with Clevis

The American Society of Agricultural and Biological Engineers , 06/30/2018

Publisher: ASABE

File Format: PDF

$39.00$78.00

Description

Standard By:The American Society of Agricultural and Biological Engineers , 06/30/2018

Published:06/30/2018

Pages:7

File Size:1 file , 1.7 MB

Language:English

This standard establishes dimensional and minimum strength requirements for agricultural drawbar hitch pins used in single point attaching of a towed machine to towing machines or leading machines. Application of this standard assumes a clevis on the towing machine conforming to ANSI/ASABE AD 6489-3:2004 and a ring on the towed machine conforming to ASABE/ISO 21244:2008. Additionally, this standard defines loading conditions for drawbar pin retention systems.

When the towing machine does not conform to ANSI/ASABE AD 6489-3:2004 or the towed machine does not conform to ASABE/ISO 21244:2008, fit and performance of pins designed per this standard may be affected. However, usage of applicable specifications derived from this standard is encouraged for such cases.

Note: ANSI/ASABE AD6489-3:2004 and ASABE/ISO 21244:2008 provide essential information related to tractor drawbars and associated implement hitch rings.
