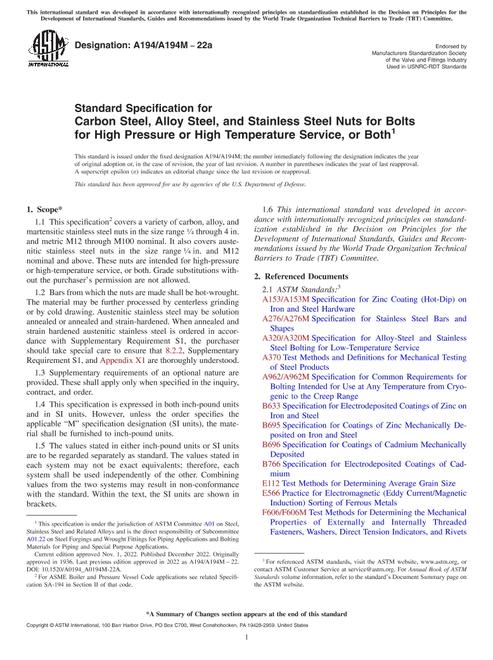

ASTM A194/A194M-22a

Standard Specification for Carbon Steel, Alloy Steel, and Stainless Steel Nuts for Bolts for High Pressure or High Temperature Service, or Both

ASTM International , 11/01/2022

Publisher: ASTM

File Format: PDF

$38.00$76.00

Description

Standard By:ASTM International , 11/01/2022

Published:11/01/2022

Pages:12

File Size:1 file , 140 KB

Language:English

Note:This product is unavailable in Russia, Ukraine, Belarus

1.1This specification2 covers a variety of carbon, alloy, and martensitic stainless steel nuts in the size range ¹/₄through 4 in. and metric M12 through M100 nominal. It also covers austenitic stainless steel nuts in the size range ¹/₄in. and M12 nominal and above. These nuts are intended for high-pressure or high-temperature service, or both. Grade substitutions without the purchaser's permission are not allowed.

1.2Bars from which the nuts are made shall be hot-wrought. The material may be further processed by centerless grinding or by cold drawing. Austenitic stainless steel may be solution annealed or annealed and strain-hardened. When annealed and strain hardened austenitic stainless steel is ordered in accordance with Supplementary Requirement S1, the purchaser should take special care to ensure that 8.2.2, Supplementary Requirement S1, and Appendix X1 are thoroughly understood.

1.3Supplementary requirements of an optional nature are provided. These shall apply only when specified in the inquiry, contract, and order.

1.4This specification is expressed in both inch-pound units and in SI units. However, unless the order specifies the applicable "M" specification designation (SI units), the material shall be furnished to inch-pound units.

1.5The values stated in either inch-pound units or SI units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard. Within the text, the SI units are shown in brackets.

1.6This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
