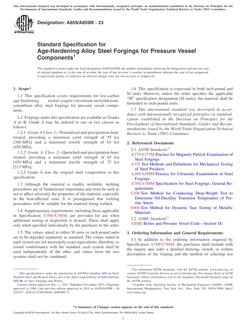

ASTM A859/A859M-23

Standard Specification for Age-Hardening Alloy Steel Forgings for Pressure Vessel Components

ASTM International , 11/01/2023

Publisher: ASTM

File Format: PDF

$31.00$63.00

Description

Standard By:ASTM International , 11/01/2023

Published:11/01/2023

Pages:5

File Size:1 file , 270 KB

Language:English

Note:This product is unavailable in Russia, Ukraine, Belarus

1.1This specification covers requirements for low-carbon age-hardening nickel-copper-chromium-molybdenum-columbium alloy steel forgings for pressure vessel components.

1.2Forgings under this specification are available as Grades A or B. Grade A may be ordered in one or two classes as follows:

1.2.1Grade A Class 1-Normalized-and-precipitation-heat-treated, providing a minimum yield strength of 55 ksi [380 MPa] and a minimum tensile strength of 65 ksi [450 MPa].

1.2.2Grade A Class 2-Quenched-and-precipitation-heat-treated, providing a minimum yield strength of 65 ksi [450 MPa] and a minimum tensile strength of 75 ksi [515 MPa].

1.2.3Grade A was the original steel composition in this specification.

1.3Although the material is readily weldable, welding procedures are of fundamental importance and must be such as not to affect adversely the properties of the material, especially in the heat-affected zone. It is presupposed that welding procedures will be suitable for the material being welded.

1.4Supplementary requirements, including those applicable in Specification A788/A788M, are provided for use when additional testing or inspection is desired. These shall apply only when specified individually by the purchaser in the order.

1.5The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system are not necessarily exact equivalents; therefore, to ensure conformance with the standard, each system shall be used independently of the other and values from the two systems shall not be combined.

1.6This specification is expressed in both inch-pound and SI units. However, unless the order specifies the applicable "M" specification designation [SI units], the material shall be furnished to inch-pound units.

1.7This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
