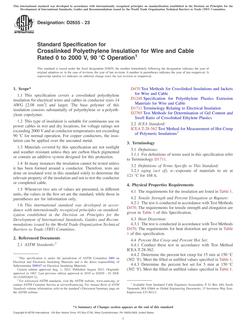

ASTM D2655-23

Standard Specification for Crosslinked Polyethylene Insulation for Wire and Cable Rated 0 to 2000 V, 90 °C Operation

ASTM International , 08/01/2023

Publisher: ASTM

File Format: PDF

$25.00$50.00

Description

Standard By:ASTM International , 08/01/2023

Published:08/01/2023

Pages:3

File Size:1 file , 250 KB

Language:English

Note:This product is unavailable in Russia, Ukraine, Belarus

1.1This specification covers a crosslinked polyethylene insulation for electrical wires and cables in conductor sizes 14 AWG [2.08 mm²] and larger. The base polymer of this insulation consists substantially of polyethylene or a polyethylene copolymer.

1.2This type of insulation is suitable for continuous use on power cables in wet and dry locations, for voltage ratings not exceeding 2000 V and at conductor temperatures not exceeding 90 °C for normal operation. For copper conductors, the insulation can be applied over the uncoated metal.

1.3Materials covered by this specification are not sunlight and weather resistant unless they are carbon black pigmented or contain an additive system designed for this protection.

1.4In many instances the insulation cannot be tested unless it has been formed around a conductor. Therefore, tests are done on insulated wire in this standard solely to determine the relevant property of the insulation and not to test the conductor or completed cable.

1.5Whenever two sets of values are presented, in different units, the values in the first set are the standard, while those in parentheses are for information only.

1.6This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

ASTM D2655-23

Standard Specification for Crosslinked Polyethylene Insulation for Wire and Cable Rated 0 to 2000 V, 90 °C Operation

ASTM D2655-23 History

ASTM D2655-23

ASTM D2655-19

ASTM D2655-17
