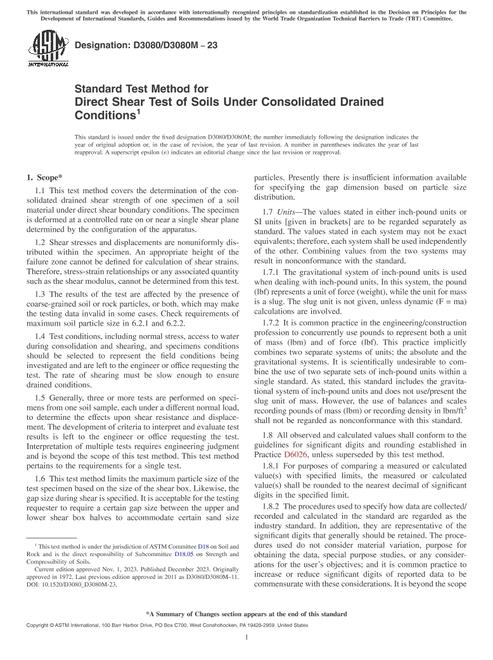

ASTM D3080/D3080M-23

Standard Test Method for Direct Shear Test of Soils Under Consolidated Drained Conditions

ASTM International , 11/01/2023

Publisher: ASTM

File Format: PDF

$31.00$63.00

Description

Standard By:ASTM International , 11/01/2023

Published:11/01/2023

Pages:10

File Size:1 file , 430 KB

Language:English

Note:This product is unavailable in Russia, Ukraine, Belarus

1.1This test method covers the determination of the consolidated drained shear strength of one specimen of a soil material under direct shear boundary conditions. The specimen is deformed at a controlled rate on or near a single shear plane determined by the configuration of the apparatus.

1.2Shear stresses and displacements are nonuniformly distributed within the specimen. An appropriate height of the failure zone cannot be defined for calculation of shear strains. Therefore, stress-strain relationships or any associated quantity such as the shear modulus, cannot be determined from this test.

1.3The results of the test are affected by the presence of coarse-grained soil or rock particles, or both, which may make the testing data invalid in some cases. Check requirements of maximum soil particle size in 6.2.1 and 6.2.2.

1.4Test conditions, including normal stress, access to water during consolidation and shearing, and specimens conditions should be selected to represent the field conditions being investigated and are left to the engineer or office requesting the test. The rate of shearing must be slow enough to ensure drained conditions.

1.5Generally, three or more tests are performed on specimens from one soil sample, each under a different normal load, to determine the effects upon shear resistance and displacement. The development of criteria to interpret and evaluate test results is left to the engineer or office requesting the test. Interpretation of multiple tests requires engineering judgment and is beyond the scope of this test method. This test method pertains to the requirements for a single test.

1.6This test method limits the maximum particle size of the test specimen based on the size of the shear box. Likewise, the gap size during shear is specified. It is acceptable for the testing requester to require a certain gap size between the upper and lower shear box halves to accommodate certain sand size particles. Presently there is insufficient information available for specifying the gap dimension based on particle size distribution.

1.7Units-The values stated in either inch-pound units or SI units [given in brackets] are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in nonconformance with the standard.

1.7.1The gravitational system of inch-pound units is used when dealing with inch-pound units. In this system, the pound (lbf) represents a unit of force (weight), while the unit for mass is a slug. The slug unit is not given, unless dynamic (F = ma) calculations are involved.

1.7.2It is common practice in the engineering/construction profession to concurrently use pounds to represent both a unit of mass (lbm) and of force (lbf). This practice implicitly combines two separate systems of units; the absolute and the gravitational systems. It is scientifically undesirable to combine the use of two separate sets of inch-pound units within a single standard. As stated, this standard includes the gravitational system of inch-pound units and does not use/present the slug unit of mass. However, the use of balances and scales recording pounds of mass (lbm) or recording density in lbm/ft³ shall not be regarded as nonconformance with this standard.

1.8All observed and calculated values shall conform to the guidelines for significant digits and rounding established in Practice D6026, unless superseded by this test method.

1.8.1For purposes of comparing a measured or calculated value(s) with specified limits, the measured or calculated value(s) shall be rounded to the nearest decimal of significant digits in the specified limit.

1.8.2The procedures used to specify how data are collected/recorded and calculated in the standard are regarded as the industry standard. In addition, they are representative of the significant digits that generally should be retained. The procedures used do not consider material variation, purpose for obtaining the data, special purpose studies, or any considerations for the user''s objectives; and it is common practice to increase or reduce significant digits of reported data to be commensurate with these considerations. It is beyond the scope of these test methods to consider significant digits used in analysis methods for engineering design.

1.9This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.

1.10This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
