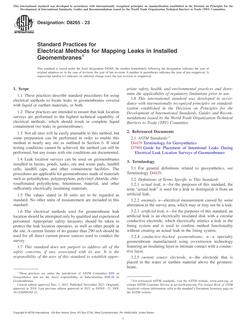

ASTM D8265-23

Standard Practices for Electrical Methods for Mapping Leaks in Installed Geomembranes

ASTM International , 11/01/2023

Publisher: ASTM

File Format: PDF

$31.00$63.00

Description

Standard By:ASTM International , 11/01/2023

Published:11/01/2023

Pages:6

File Size:1 file , 380 KB

Language:English

Note:This product is unavailable in Russia, Ukraine, Belarus

1.1These practices describe standard procedures for using electrical methods to locate leaks in geomembranes covered with liquid or earthen materials, or both.

1.2These practices are intended to ensure that leak location surveys are performed to the highest technical capability of electrical methods, which should result in complete liquid containment (no leaks in geomembrane).

1.3Not all sites will be easily amenable to this method, but some preparation can be performed in order to enable this method at nearly any site as outlined in Section 6. If ideal testing conditions cannot be achieved, the method can still be performed, but any issues with site conditions are documented.

1.4Leak location surveys can be used on geomembranes installed in basins, ponds, tanks, ore and waste pads, landfill cells, landfill caps, and other containment facilities. The procedures are applicable for geomembranes made of materials such as polyethylene, polypropylene, polyvinyl chloride, chlorosulfonated polyethylene, bituminous material, and other sufficiently electrically insulating materials.

1.5The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.

1.6The electrical methods used for geomembrane leak location should be attempted only by qualified and experienced personnel. Appropriate safety measures should be taken to protect the leak location operators, as well as other people at the site. A current limiter of no greater than 290 mA should be used for all direct current power sources used to conduct the survey.

1.7This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.

1.8This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
