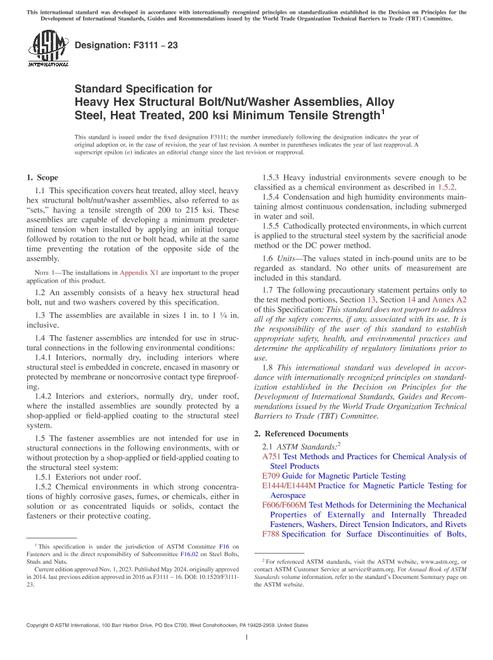

ASTM F3111-23

1.1This specification covers heat treated, alloy steel, heavy hex structural bolt/nut/washer assemblies, also referred to as "sets," having a tensile strength of 200 to 215 ksi. These assemblies are capable of developing a minimum predetermined tension when installed by applying an initial torque followed by rotation to the nut or bolt head, while at the same time preventing the rotation of the opposite side of the assembly.

1.2An assembly consists of a heavy hex structural head bolt, nut and two washers covered by this specification.

1.3The assemblies are available in sizes 1 in. to 1 ¹/₄in. inclusive.

1.4The fastener assemblies are intended for use in structural connections in the following environmental conditions:

1.5The fastener assemblies are not intended for use in structural connections in the following environments, with or without protection by a shop-applied or field-applied coating to the structural steel system:

1.6Units-The values stated in inch-pound units are to be regarded as standard. No other units of measurement are included in this standard.

1.7The following precautionary statement pertains only to the test method portions, Section 13, Section 14 and Annex A2 of this Specification: This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.

1.8This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
