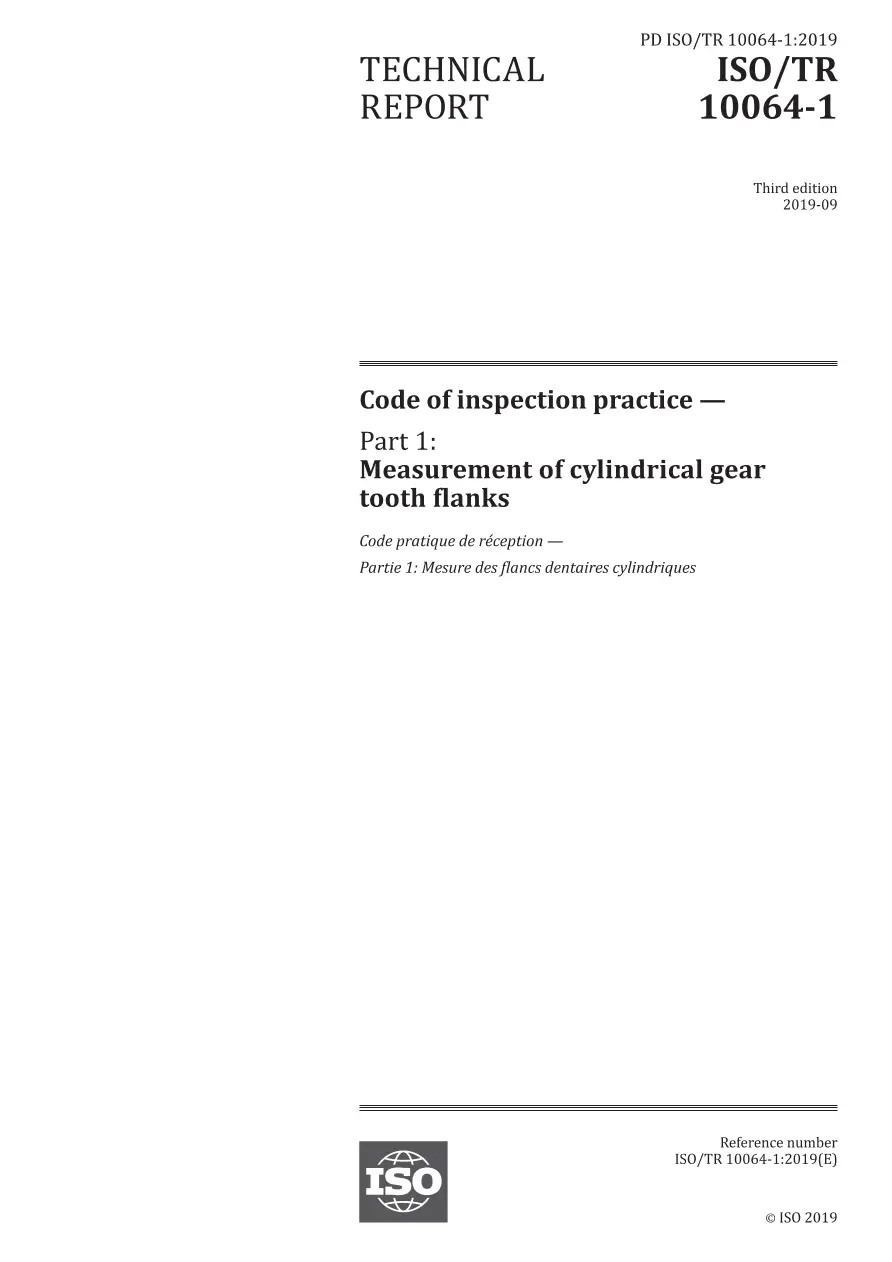

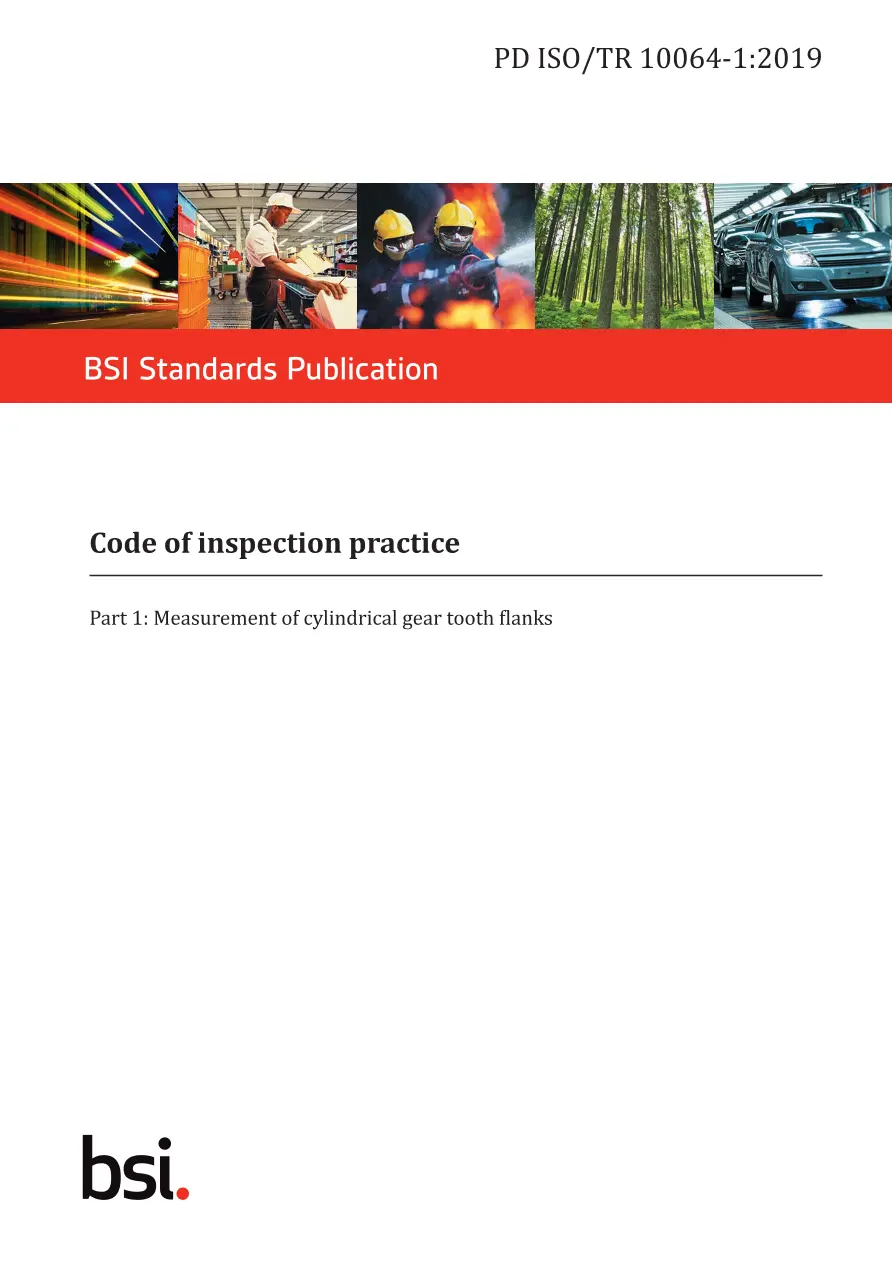

BS PD ISO/TR 10064-1:2019

Code of inspection practice-Measurement of cylindrical gear tooth flanks

BSI Group , 10/03/2019

Publisher: BS

File Format: PDF

$199.00$398.78

Description

Standard By:BSI Group , 10/03/2019

Published:10/03/2019

Pages:98

ISBN(s):9780539036350

File Size:1 file , 18 MB

Language:English

Note:This product is unavailable in Ukraine, Russia, Belarus

This document supplements ISO 1328-1:2013. It provides a code of practice dealing with measurementson flanks of individual cylindrical involute gears, i.e. with the measurement of pitch, profile, helixand tangential composite characteristics. It describes measuring equipment, provides advice for gearmeasuring methods and for the analysis of measurement results, and discusses the interpretation ofresults.

Measurements using a double flank tester are not included (see ISO/TR 10064-2). This document onlyapplies to involute gears.Cross References:ISO 21771ISO 53ISO 14638ISO 17450-1ISO 18653 ISO 22514-7ISO/TR 10064-4ISO/TR 10064-3ISO 54ISO 17450-2ISO 15530-3ISO 14253-2ISO/TR 10064-5ISO 14253-1 ISO 701ISO 1122-1ISO/TR 10064-2:1996ISO 1328-1:2013
