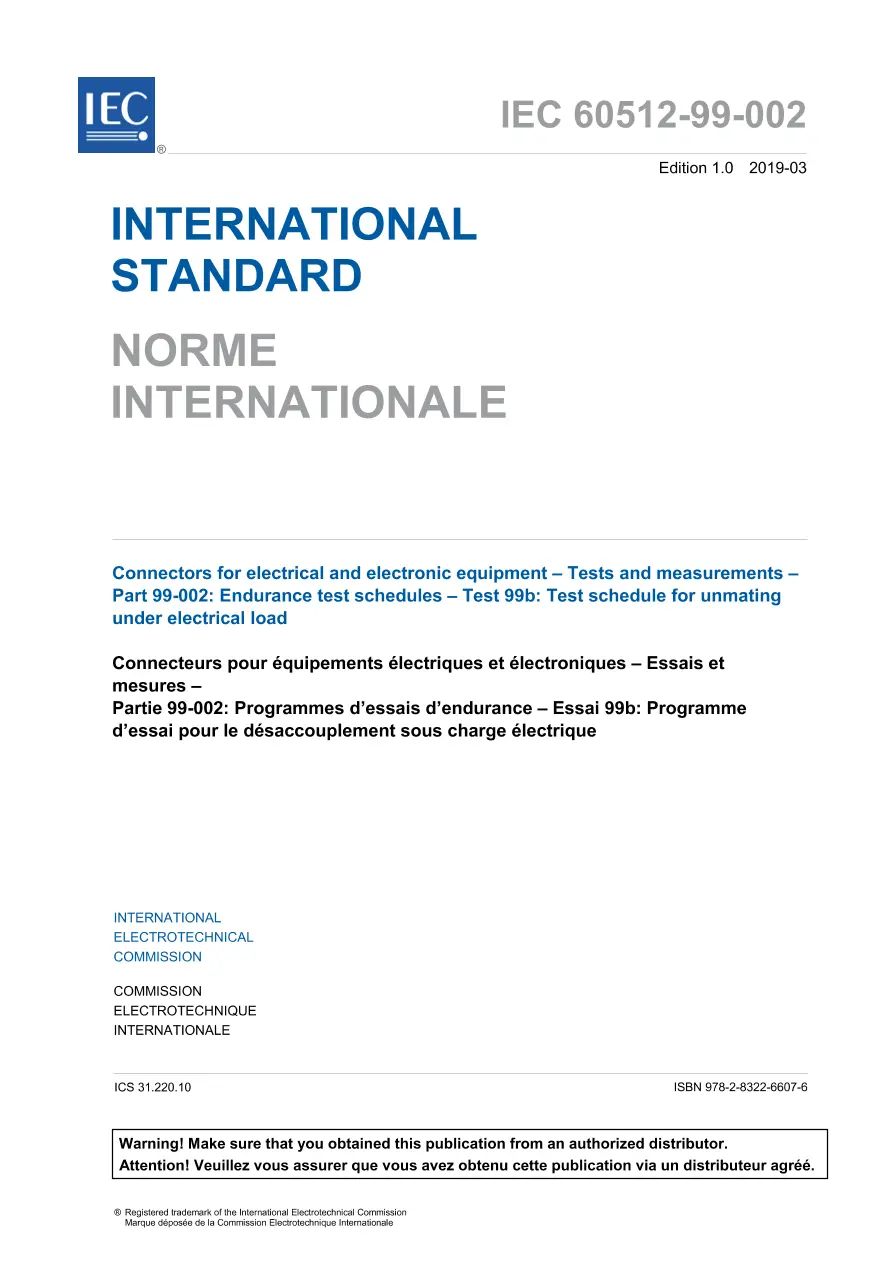

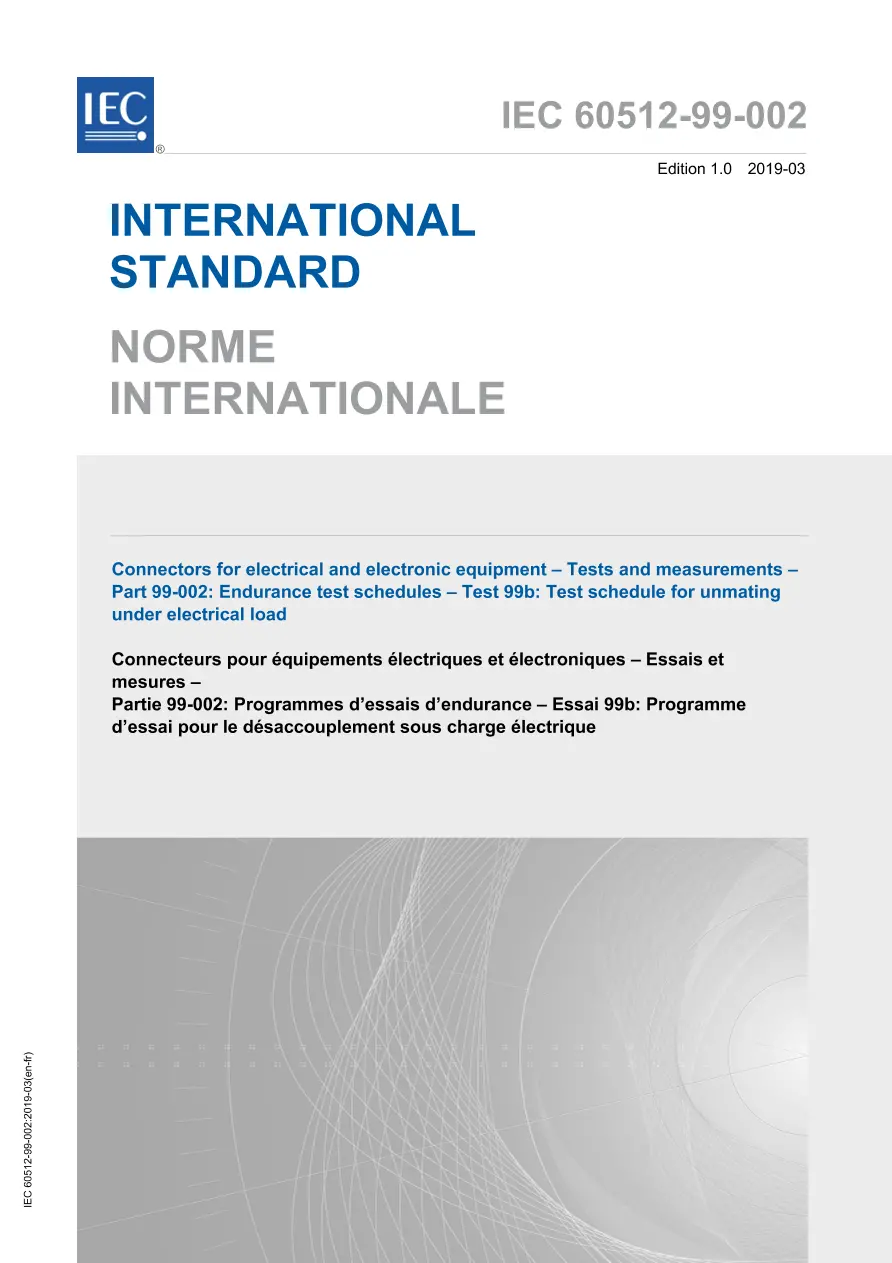

IEC 60512-99-002 Ed. 1.0 b:2019

Connectors for electrical and electronic equipment - Tests and measurements - Part 99-002: Endurance test schedules - Test 99b: Test schedule for unmating under electrical load

International Electrotechnical Commission , 03/08/2019

Publisher: IEC

File Format: PDF

$44.00$89.00

Description

Standard By:International Electrotechnical Commission , 03/08/2019

Published:03/08/2019

Pages:24

File Size:1 file , 1.1 MB

Language:English, French

Note:This product is unavailable in Ukraine, Russia, Belarus

IEC 60512-99-002:2019 is used for testing connectors within the scope of SC 48B that are used in twisted pair communication cabling with remote power, such as ISO/IEC 11801 Class D (or better), balanced cabling in support of IEEE Std 802.3bt™, (PoE Plus - Power over Ethernet Plus).

The object of this document is to detail a test schedule to determine the ability of pairs of connectors to withstand a sequence of tests with a total of 100 engagements and separations. The electrical current is passed through the connectors during the separation (unmating) step only, in accordance with IEC 60512-9-3.
