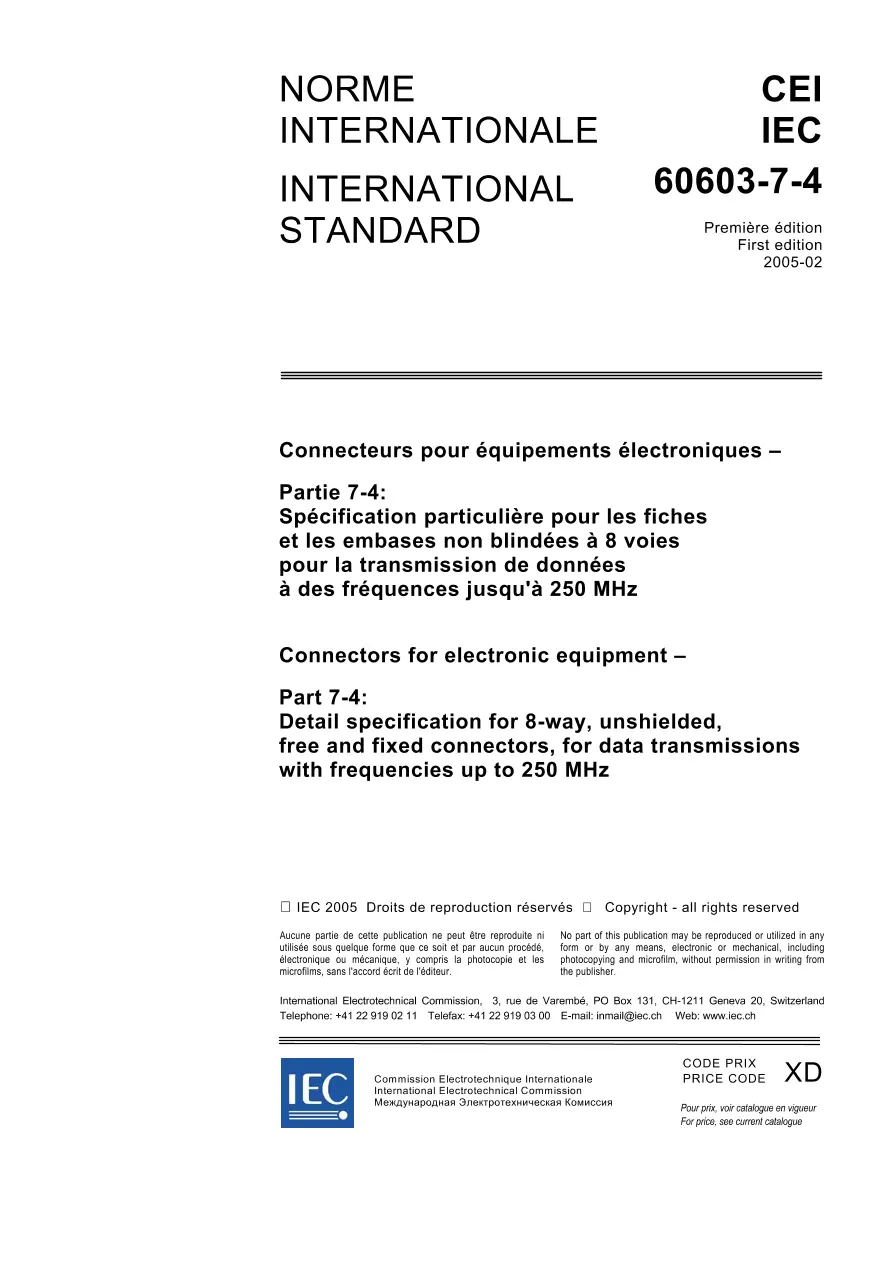

IEC 60603-7-4 Ed. 1.0 b:2005

Connectors for electronic equipment - Part 7-4: Detail specification for 8-way, unshielded, free and fixed connectors, for data transmissions with frequencies up to 250 MHz

International Electrotechnical Commission , 02/09/2005

Publisher: IEC

File Format: PDF

$130.00$260.00

Description

Standard By:International Electrotechnical Commission , 02/09/2005

Published:02/09/2005

Pages:185

File Size:1 file , 2.6 MB

Language:English, French

Note:This product is unavailable in Ukraine, Russia, Belarus

Covers 8-way unshielded free and fixed connectors and specifies mechanical and environmental requirements and electrical transmission requirements for frequencies up to 250 MHz. These connectors are typically used as category 6 connectors in class E cabling systems specified in ISO/IEC 11801:2002. These connectors are intermateable, interoperable, and backward compatible with other IEC 60603-7 series connectors.
