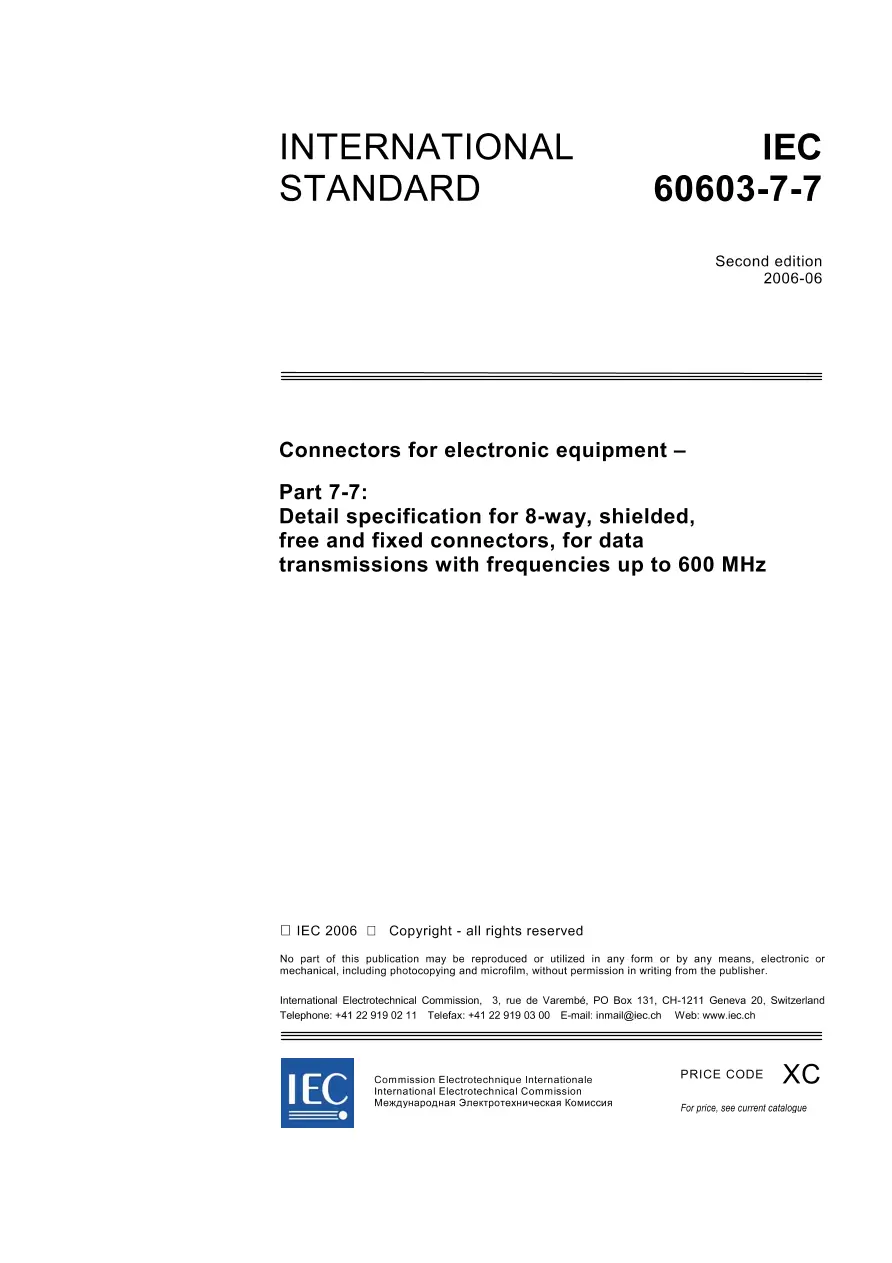

IEC 60603-7-7 Ed. 2.0 en:2006

Connectors for electronic equipment - Part 7-7: Detail specification for 8-way, shielded, free and fixed connectors, for data transmissions with frequencies up to 600 MHz

International Electrotechnical Commission , 06/22/2006

Publisher: IEC

File Format: PDF

$125.00$250.00

Description

Standard By:International Electrotechnical Commission , 06/22/2006

Published:06/22/2006

Pages:82

File Size:1 file , 830 KB

Language:English

Note:This product is unavailable in Ukraine, Russia, Belarus

Covers 8 way connectors, up to 4 pairs, and specifies mechanical and environmental requirements, and electrical transmission requirements for frequencies up to 600 MHz. These connectors are typically used as category 7 connectors in class F cabling systems specified in IS0/IEC 11801. They are intermateable, interoperable and backward compatible with IEC 60603-7-X series connectors.
