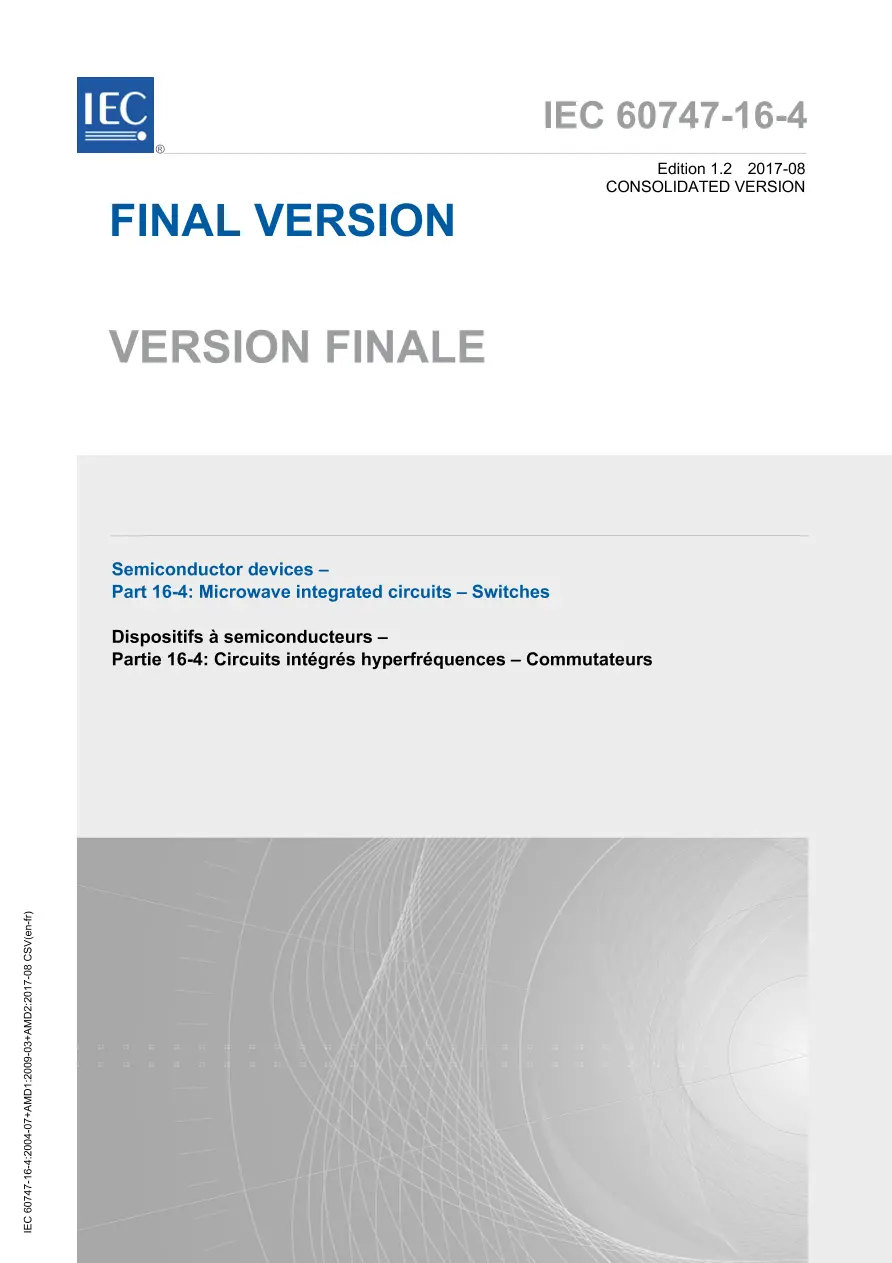

IEC 60747-16-4 Ed. 1.2 b:2017

Semiconductor devices - Part 16-4: Microwave integrated circuits - Switches CONSOLIDATED EDITION

International Electrotechnical Commission , 08/16/2017

Publisher: IEC

File Format: PDF

$186.00$373.00

Description

Standard By:International Electrotechnical Commission , 08/16/2017

Published:08/16/2017

Pages:112

File Size:1 file , 1.9 MB

Language:English, French

Note:This product is unavailable in Ukraine, Russia, Belarus

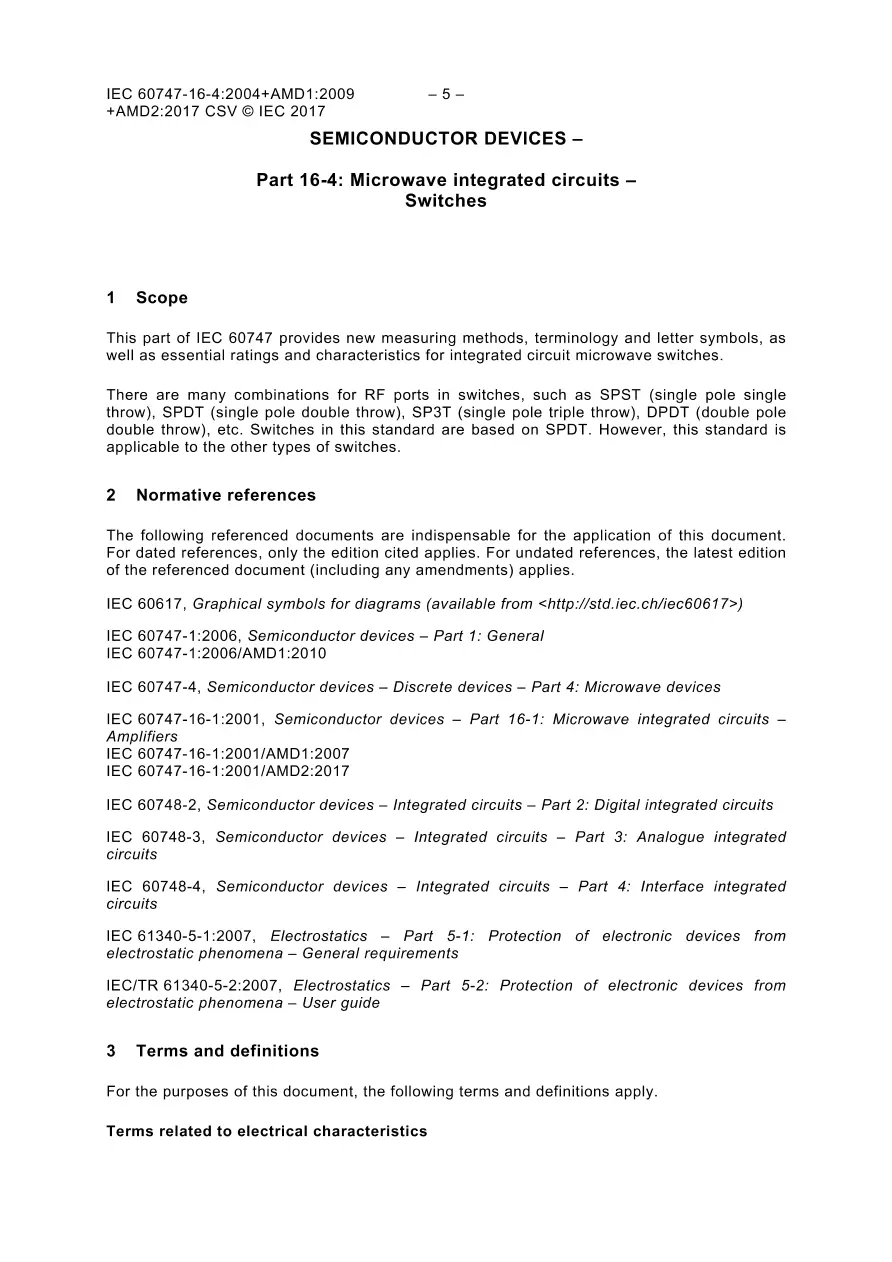

IEC 60747-16-4:2004+A1:2009+A2:2017(E) provides new measuring methods, terminology and letter symbols, as well as essential ratings and characteristics for integrated circuit microwave switches. There are many combinations for RF ports in switches, such as SPST (single pole single throw), SPDT (single pole double throw), SP3T (single pole triple throw), DPDT (double pole double throw), etc. Switches in this standard are based on SPDT. However, this standard is applicable to the other types of switches. This consolidated version consists of the first edition (2004), its amendment 1 (2009) and its amendment 2 (2017). Therefore, no need to order amendments in addition to this publication.
