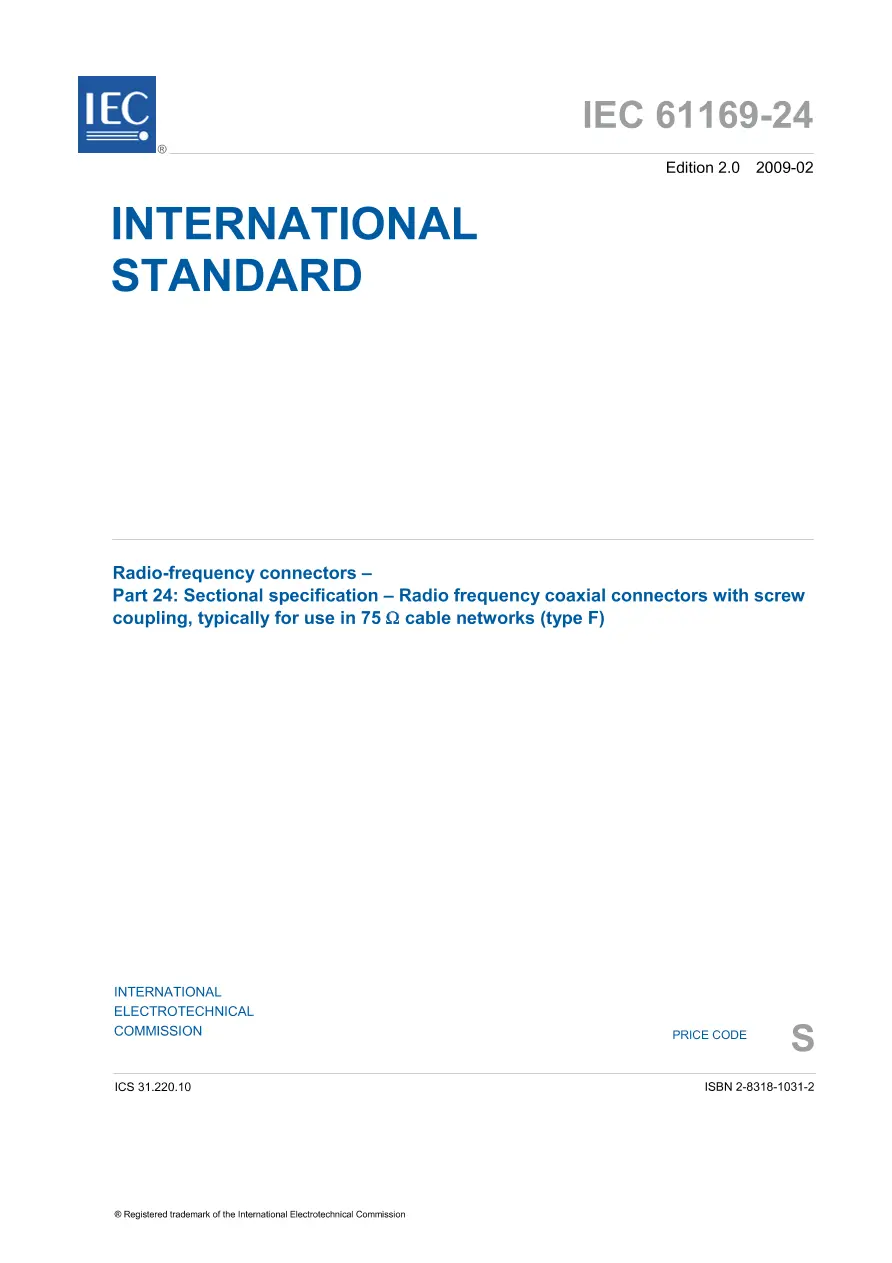

IEC 61169-24 Ed. 2.0 en:2009

Radio-frequency connectors - Part 24: Sectional specification - Radio frequency coaxial connectors with screw coupling, typically for use in 75 Ω cable networks (type F)

International Electrotechnical Commission , 02/23/2009

Publisher: IEC

File Format: PDF

$78.00$157.00


IEC 61169-24:2009(E), which is a sectional specification (SS), provides information and rules for the preparation of detail specifications (DS) for RF coaxial connectors with screw coupling, typically for use in 75 ohm cable networks (type F). It describes the interface dimensions with gauging information and the mandatory tests selected from IEC 61169-1, applicable to all DS relating to type F connectors. This second edition differs from the first edition in that all drawings have been reworked and improved to allow frequency extension up to 3 GHz.

IEC 61169-24 Ed. 2.0 en:2009 History

IEC 61169-24 Ed. 3.0 b:2019

IEC 61169-24 Ed. 3.0 b:2019

$117.00 $234.00

IEC 61169-24 Ed. 2.0 en:2009
IEC 61169-24 Ed. 2.0 b:2009
IEC 61169-24 Ed. 1.0 b:2001
