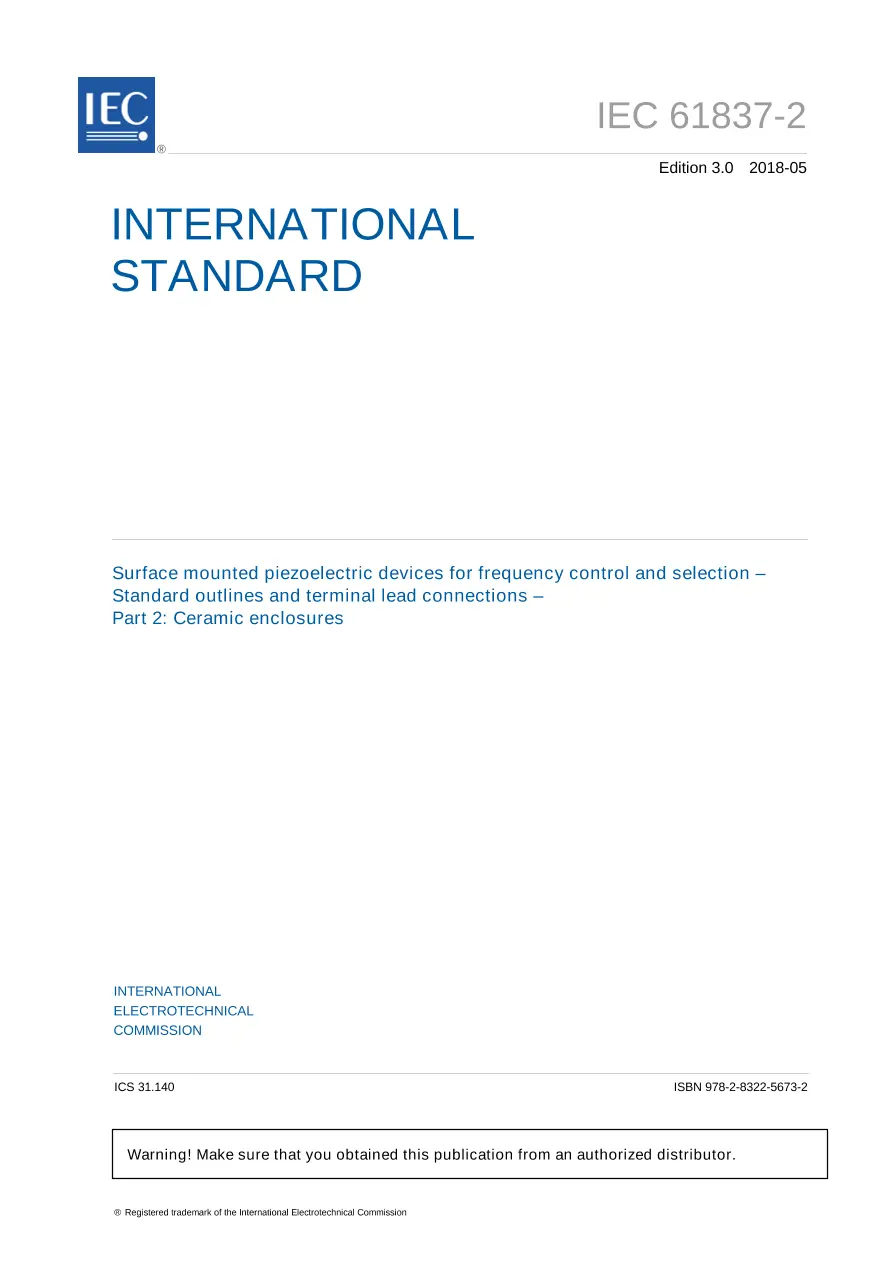

IEC 61837-2 Ed. 3.0 en:2018

Surface mounted piezoelectric devices for frequency control and selection - Standard outlines and terminal lead connections - Part 2: Ceramic enclosures

International Electrotechnical Commission , 05/08/2018

Publisher: IEC

File Format: PDF

$227.00$455.00

Description

Standard By:International Electrotechnical Commission , 05/08/2018

Published:05/08/2018

Pages:99

File Size:1 file , 1.5 MB

Language:English

Note:This product is unavailable in Ukraine, Russia, Belarus

IEC 61837-2:2018(E) deals with standard outlines and terminal lead connections as they apply to surface-mounted devices (SMD) for frequency control and selection in ceramic enclosures, and is based on IEC 61240:2016. This edition includes the following significant technical changes with respect to the previous edition:
a. revision of the figures to match the notation of the drawings of IEC 61240:2016;
b. addition of 7 enclosures as follows: DCC-6/5032A, DCC-6/3225A, DCC-4/3215C, DCC-6/2016A, DCC-2/2012C, DCC-2/1610C, DCC-4/1210C.
As a result, this third edition contains a total of 45 enclosure types, which are listed in Table 1.
