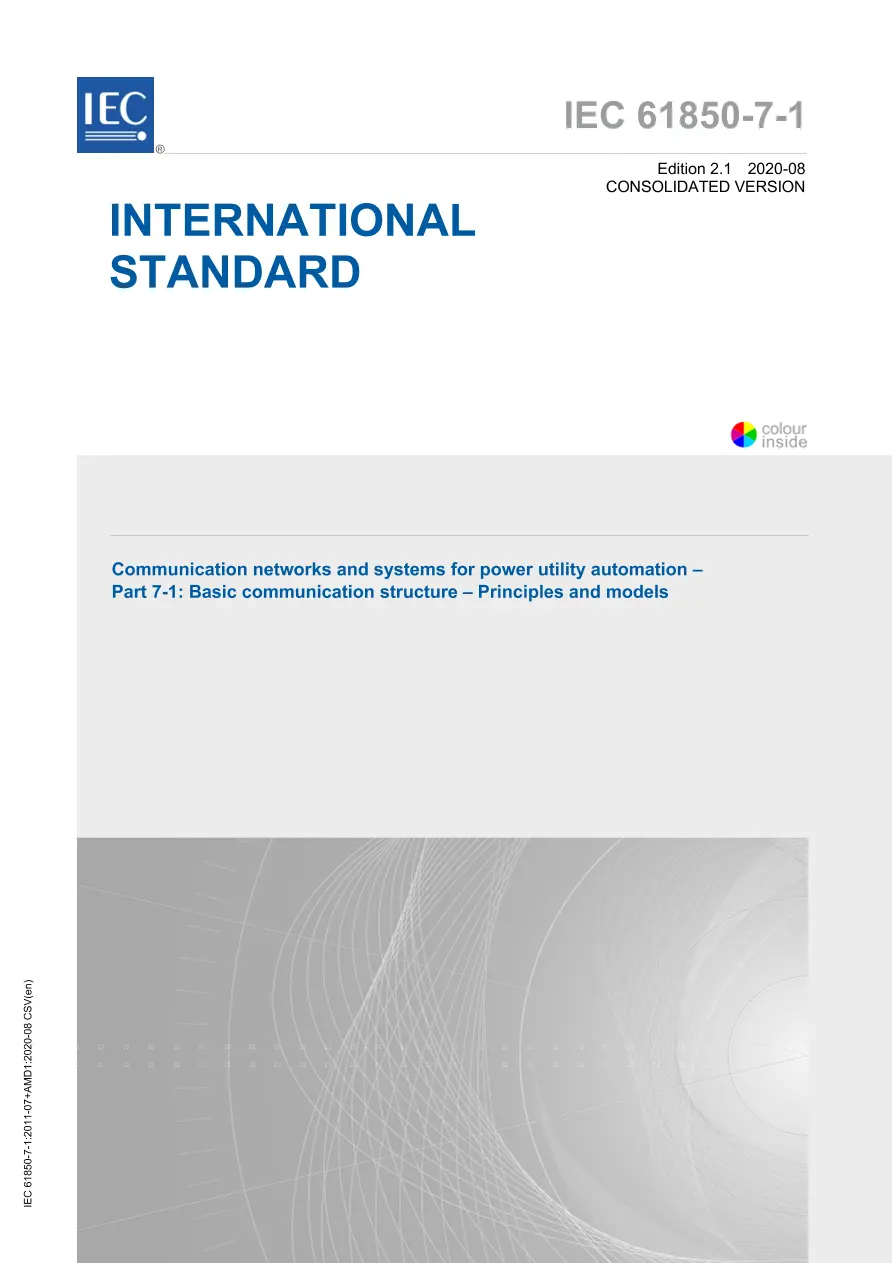

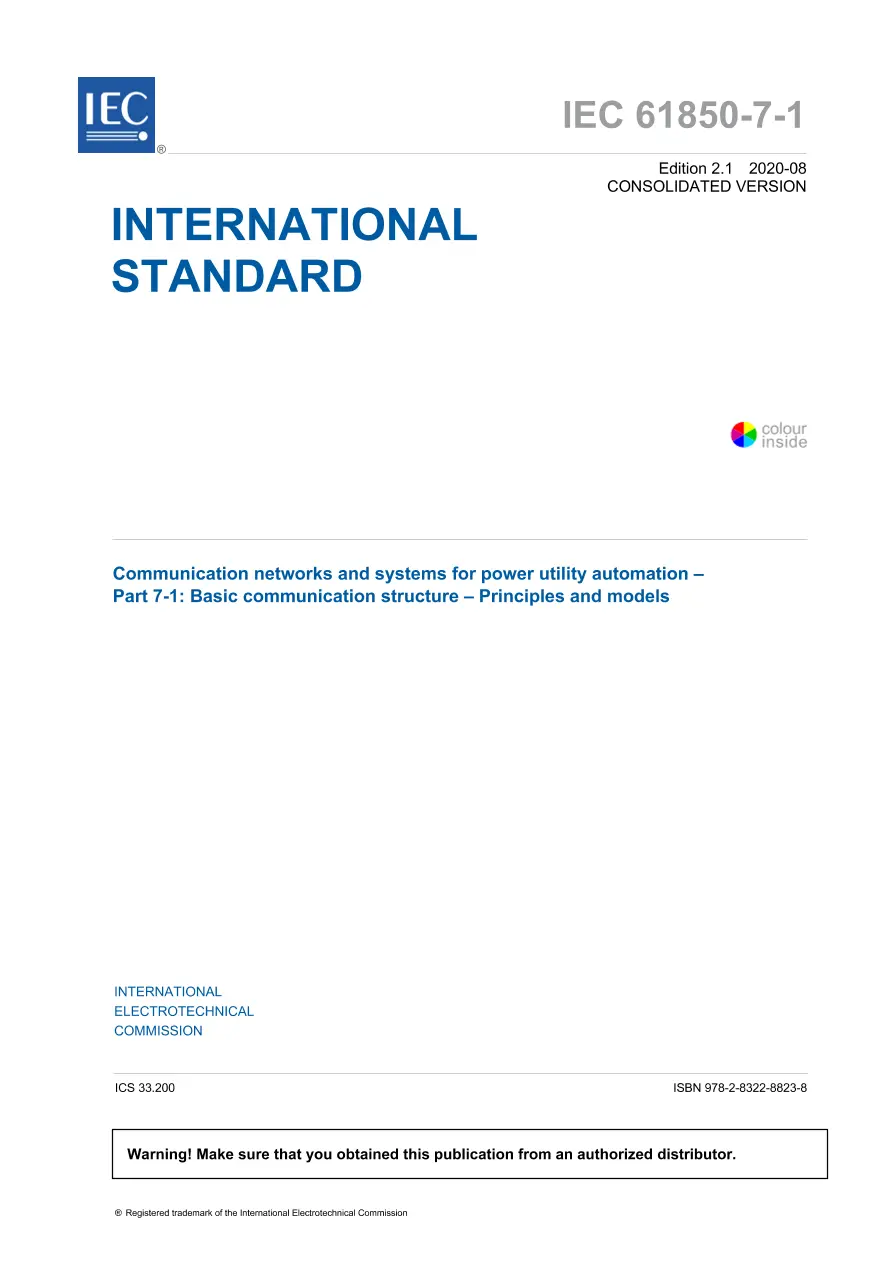

IEC 61850-7-1 Ed. 2.1 en:2020

Communication networks and systems for power utility automation - Part 7-1: Basic communication structure - Principles and models CONSOLIDATED EDITION

International Electrotechnical Commission , 08/31/2020

Publisher: IEC

File Format: PDF

$632.00$1,265.00

Description

Standard By:International Electrotechnical Commission , 08/31/2020

Published:08/31/2020

Pages:195

File Size:1 file , 6.1 MB

Language:English

Note:This product is unavailable in Ukraine, Russia, Belarus

IEC 61850-7-1:2020 introduces the modelling methods, communication principles, and information models that are used in the various parts of the IEC 61850-7 series. The purpose is to provide - from a conceptual point of view - assistance to understand the basic modelling concepts and description methods for:
- substation-specific information models for power utility automation systems,
- device functions used for power utility automation purposes, and
- communication systems to provide interoperability within power utility facilities. Compared to the first edition, this second edition introduces:
- the model for statistical and historical statistical data,
- the concepts of proxies, gateways, LD hierarchy and LN inputs,
- the model for time synchronisation,
- the concepts behind different testing facilities,
- the extended logging function. It also clarifies certain items.
