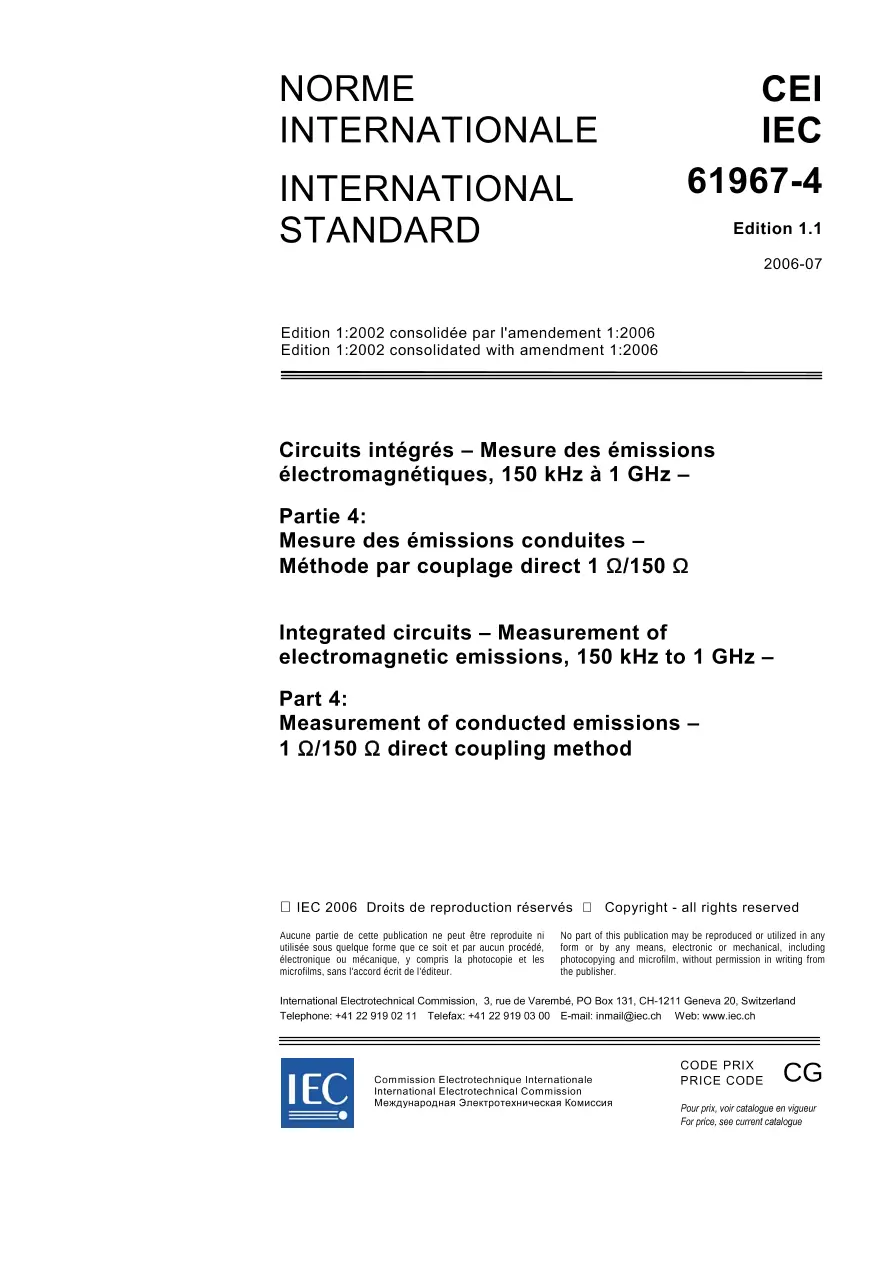

IEC 61967-4 Ed. 1.1 b:2006

Integrated circuits - Measurement of electromagnetic emissions, 150 kHz to 1 GHz - Part 4: Measurement of conducted emissions - 1 ¿¿/150 ¿¿ direct coupling method CONSOLIDATED EDITION

International Electrotechnical Commission , 07/27/2006

Publisher: IEC

File Format: PDF

$161.00$323.00

Description

Standard By:International Electrotechnical Commission , 07/27/2006

Published:07/27/2006

Pages:65

File Size:1 file , 2.4 MB

Language:English, French

Note:This product is unavailable in Ukraine, Russia, Belarus

Specifies a method to measure the conducted electromagnetic emission (EME) of integrated circuits by direct radio frequency (RF) current measurement with a 1 ohm resistive probe and RF voltage measurement using a 150 ohm coupling network. These methods guarantee a high degree of repeatability and correlation of EME measurements. IEC 61967-1 specifies general conditions and definitions of the test methods.
