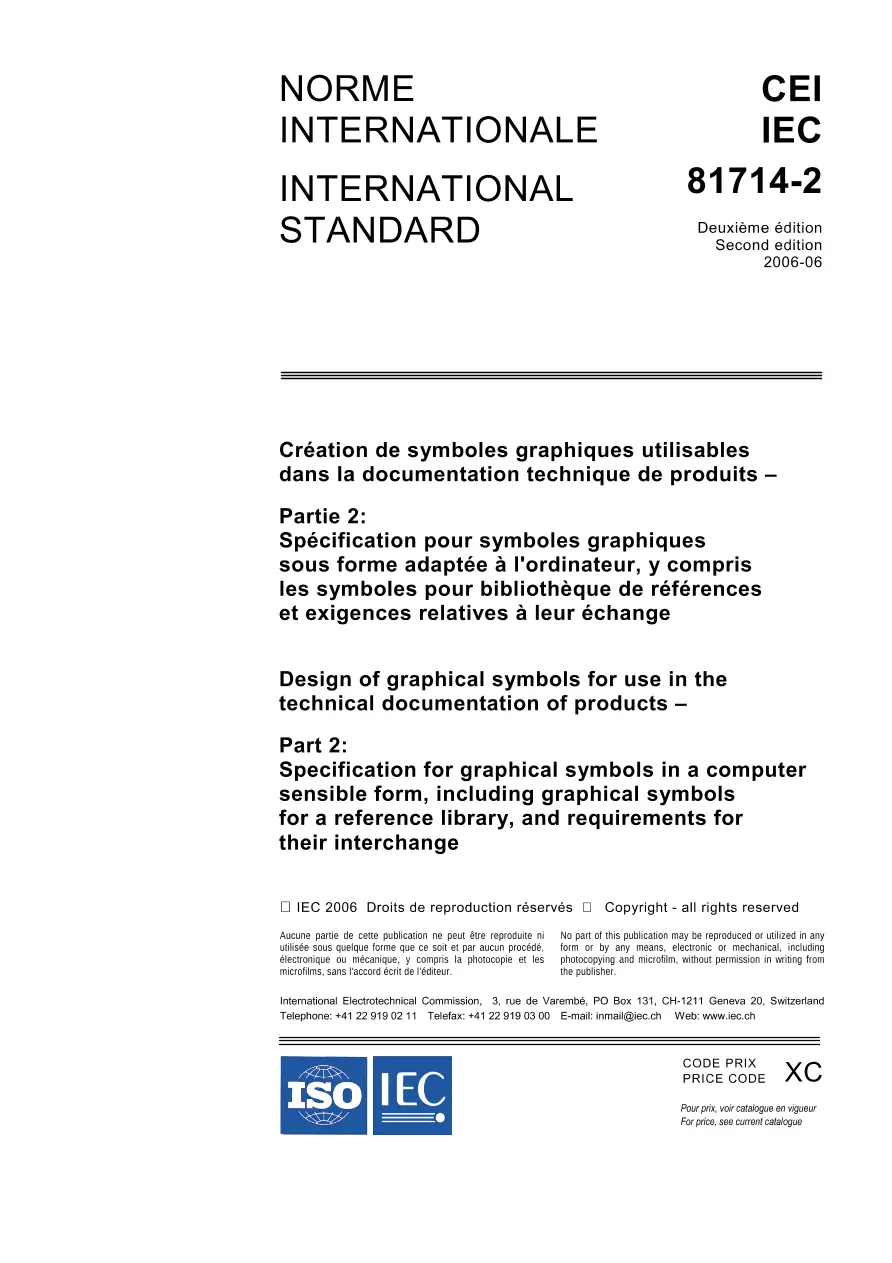

IEC 81714-2 Ed. 2.0 b:2006

Design of graphical symbols for use in the technical documentation of products - Part 2: Specification for graphical symbols in a computer sensible form, including graphical symbols for a reference library, and requirements for their interchange

International Electrotechnical Commission , 06/13/2006

Publisher: IEC

File Format: PDF

$208.00$417.00


Specifies requirements for graphical symbols to be included in a reference symbol library in a computer sensible form, and requirements for their interchange among computer aided tools. The reference symbol library may be used as a basis for the design and editing of documents, and for the interchange of documents and graphical symbol libraries among computer-aided tools.

IEC 81714-2 Ed. 2.0 b:2006 History

IEC 81714-2 Ed. 2.0 b:2006

IEC 81714-2 Ed. 2.0 b:2006

$208.00 $417.00

IEC 81714-2 Ed. 1.0 b:1998
