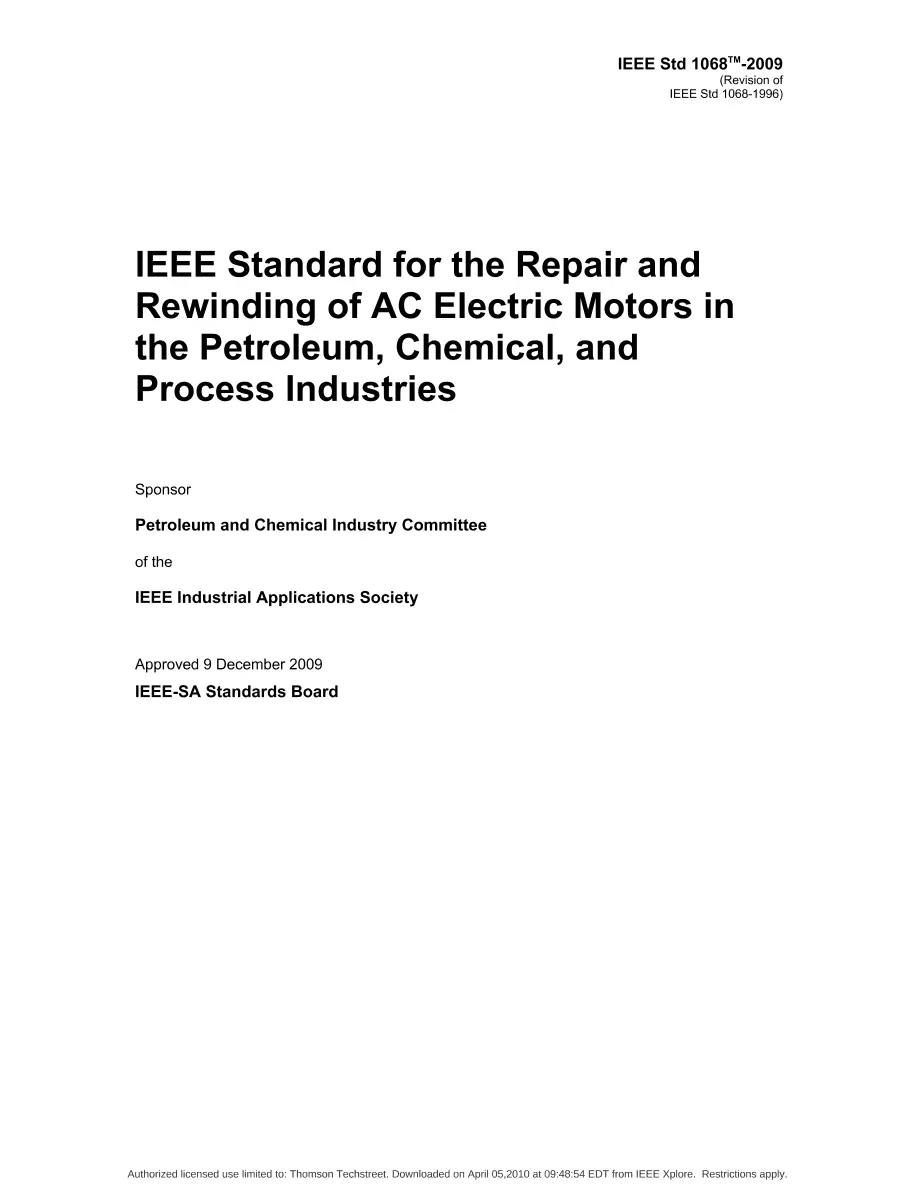

IEEE 1068-2009

This document covers general recommendations for the repair of alternating current (ac) electric motors and includes guidelines for both the user and the repair facility. It is not intended to replace specific instructions contained in the manufacturer's instruction book or in any contractual agreement between a manufacturer and a purchaser of a given machine. For the purpose of this document, the term "motor" is used in lieu of, and shall equate to, the terms wound rotor, generator, and machine. This standard covers reconditioning, repair, and rewind of horizontal and vertical induction motors and of synchronous motors. It applies to all voltages 15 kV and less, and all ratings above 0.75 kW (1 hp). This standard applies only to the repair of motors, and in cases involving modifications to the basic design, care must be taken so as not to negatively affect the safety and reliability of the motor. Excluded from the scope of this standard are the following: - Specific requirements, certification, and inspection required for explosion proof, dust ignition proof, flameproof, and like motors having a listing issued by a Nationally Recognized Testing Laboratory (NRTL), for example, Underwriters Laboratories, Inc. (UL), Factory Mutual (FM),and Canadian Standards Association (CSA). For motors in this category, the user shall verify if the repair facility shall be certified by such an agency. - Any specific or additional requirements for hermetic motors, hydrogen-cooled generators,submersible motors, or Class 1E nuclear service motors. - Direct current (dc) motors. This standard is intended to be used and referenced by users of motors that need repair as well as by owners and operators of establishments that offer motor repair services. It has been developed primarily for the needs of the petroleum and chemical industry but can be adapted to other applications or industries. The use of this standard by users and repair facilities is expected to result in higher quality, cost-effective, timely repairs. It also provides a means of evaluating repairs and facilities. Revision Standard - Superseded. This standard is intended to be a basic or primary document that can be utilized and referenced by owners of ac motors and generators (machines) that need refurbishment, repair, and/or rewinding, as well as service or repair facilities. It has been developed for the petroleum, chemical, and process industries, and it may be adapted to other areas of interest. The use of this standard is expected to result in higher quality and more cost effective, and timely repairs. A means of evaluating work performed and repair or service facilities is also provided.
