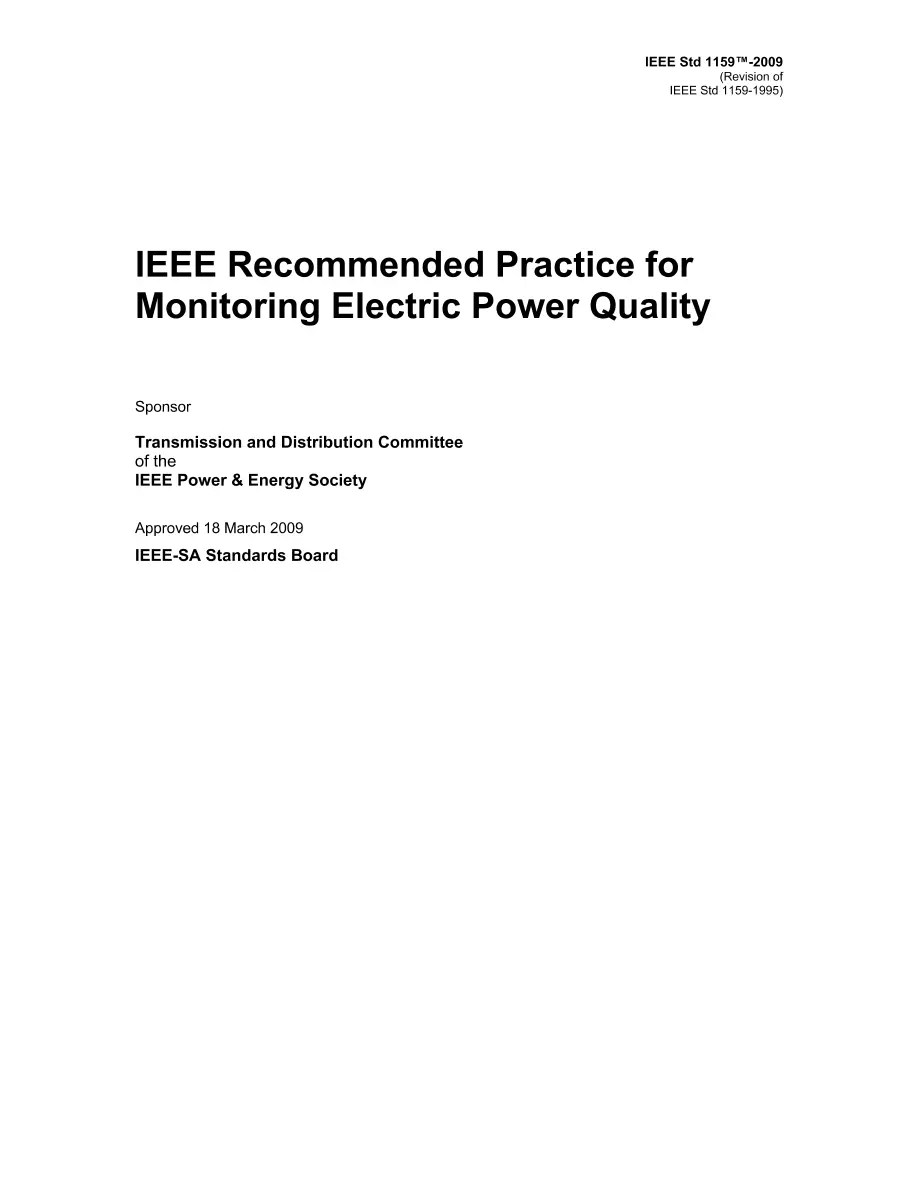

IEEE 1159-2009

This recommended practice encompasses the monitoring of electrical characteristics of single-phase and polyphase ac power systems. It includes consistent descriptions of conducted electromagnetic phenomena occurring on power systems. This recommended practice presents definitions of nominal conditions and deviations from these nominal conditions that may originate within the source of supply or load equipment or may originate from interactions between the source and the load. Also, this recommended practice discusses measurement techniques, application techniques, and the interpretation of monitoring results. The use of equipment that causes and is susceptible to various electromagnetic phenomena has heightened the interest in power quality. An increase in operational problems has led to a variety of attempts to describe the phenomena. Because different segments of the technical community have used different terminologies to describe these electromagnetic events, this recommended practice provides users with a consistent set of terms and definitions for describing these events. An understanding of how power quality events impact the power system and end-use equipment is required in order to make monitoring useful. Proper measuring techniques are required to safely obtain useful, accurate data. Appropriate location of monitors, systematic studies, and interpretation of results will enhance the value of power quality monitoring. The purpose of this recommended practice is to assist users as well as equipment and software manufacturers and vendors by describing techniques for defining, measuring, quantifying, and interpreting electromagnetic disturbances on the power system. Revision Standard - Superseded. This Recommended Practice encompasses the monitoring of electrical characteristics of single-phase and polyphase ac power systems. It includes consistent descriptions of conducted electromagnetic phenomena occurring on power systems. The document describes nominal conditions and deviations from these nominal conditions that may originate within the source of supply or load equipment, or from interactions between the source and the load. Also, this document discusses power quality monitoring devices, application techniques, and interpretation of monitoring results.
