IEEE 1799-2012

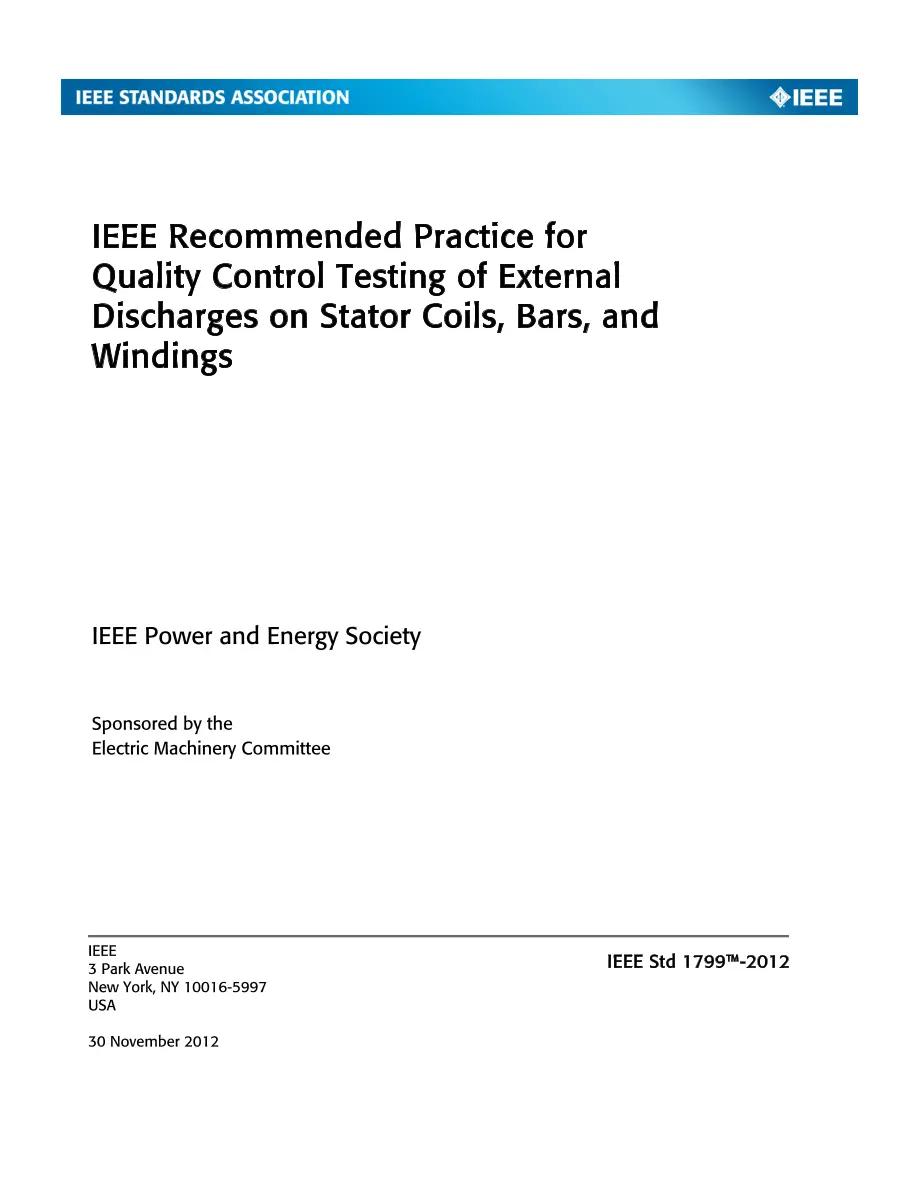

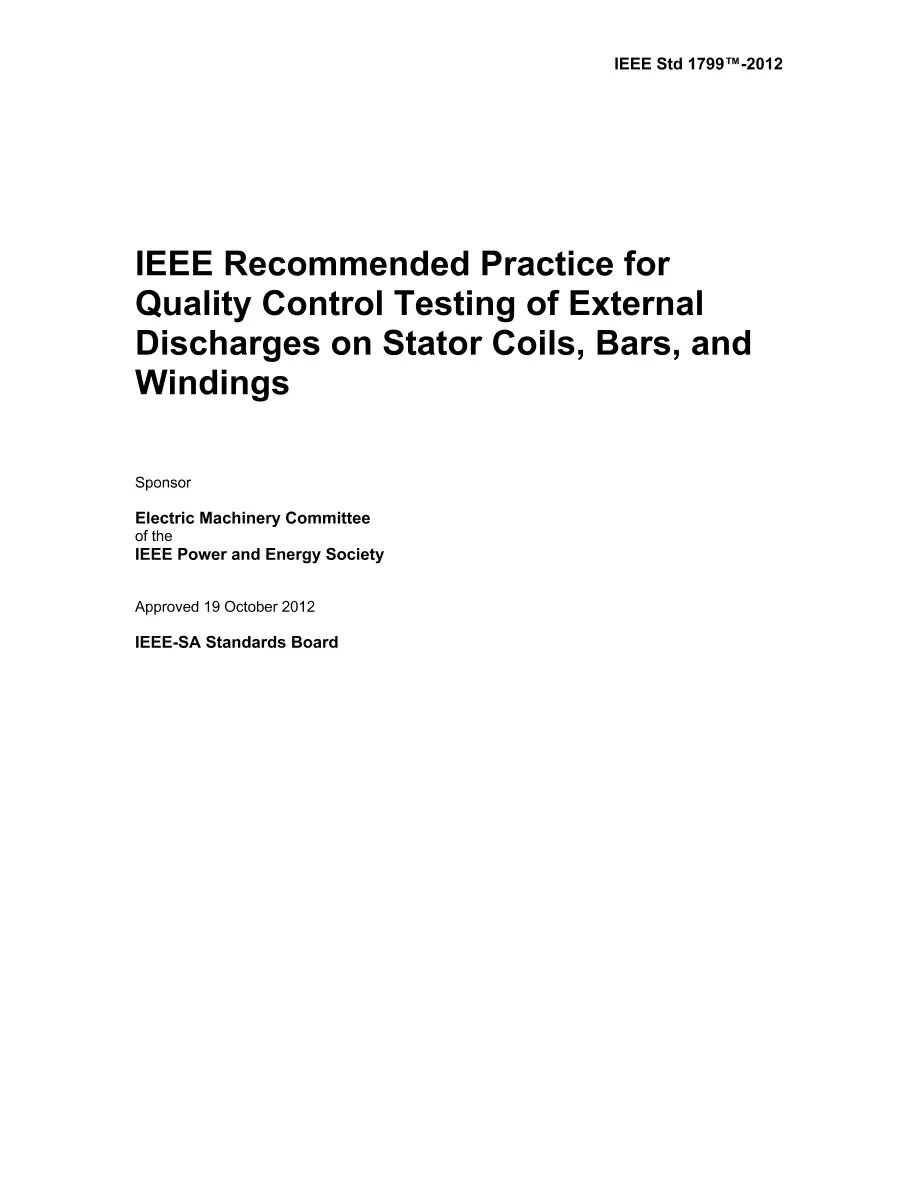

IEEE Recommended Practice for Quality Control Testing of External Discharges on Stator Coils, Bars, and Windings

IEEE , 11/30/2012

Publisher: IEEE

File Format: PDF

$42.00$84.00

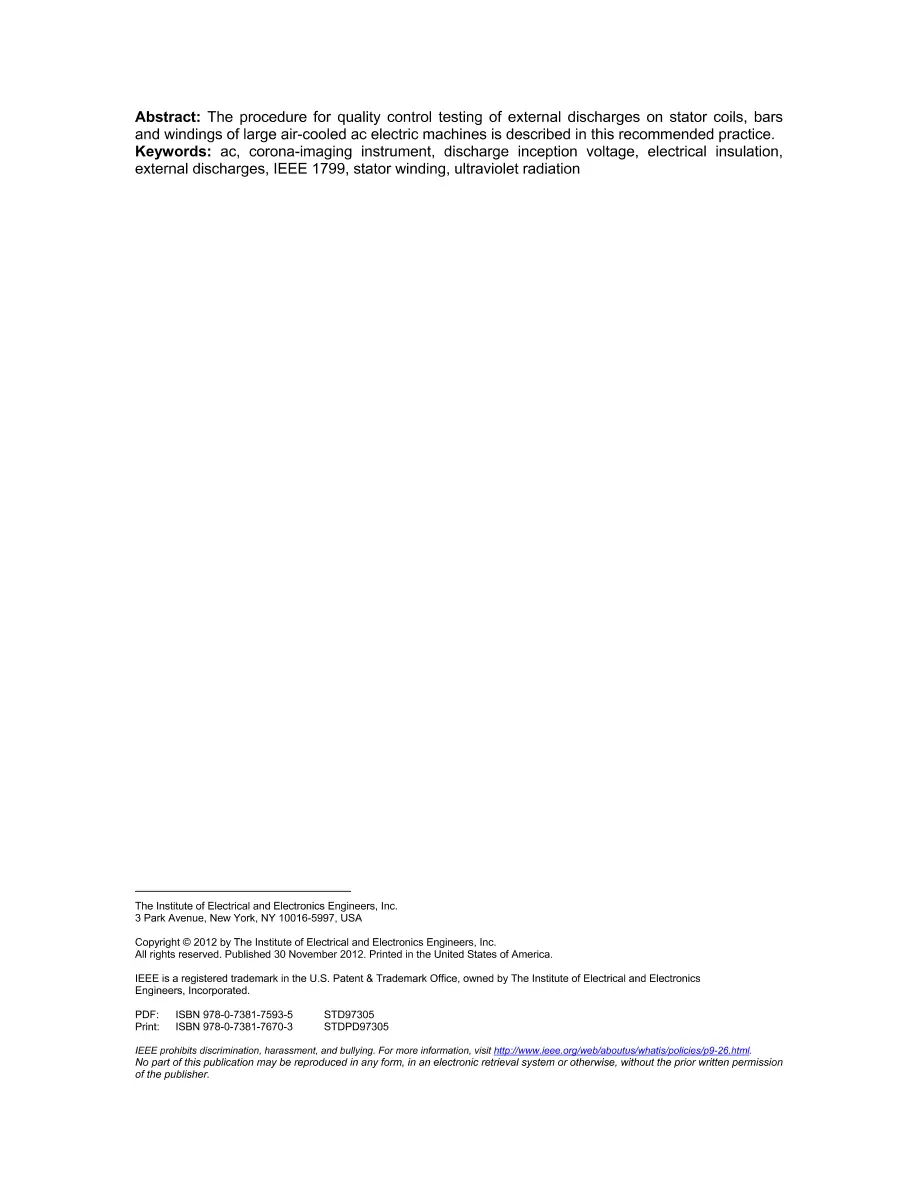

This recommended practice provides a procedure to detect external discharges in form-wound bars and coils and complete stator windings of rotating machines operating in air with a rated line-to-line voltage greater than 4200 V at power frequency. The recommended practice is applicable to bars, coils, and complete stator windings. The recommended practice covers two inspection methods: the visual blackout test, and the use of corona imaging instruments. The purpose of this recommended practice is to suggest specimen preparation, test parameters, and procedures for detecting external discharges associated with bars, coils, and complete stator windings using the above mentioned methods. It also recommends acceptance criteria and a procedure for retest in the event of a test failure. New IEEE Standard - Superseded. The procedure for quality control testing of external discharges on stator coils, bars and windings of large air-cooled ac electric machines is described in this recommended practice.

IEEE 1799-2012 History

IEEE 1799-2022

IEEE 1799-2022

$38.00 $76.00

IEEE 1799-2012

IEEE 1799-2012

$42.00 $84.00
