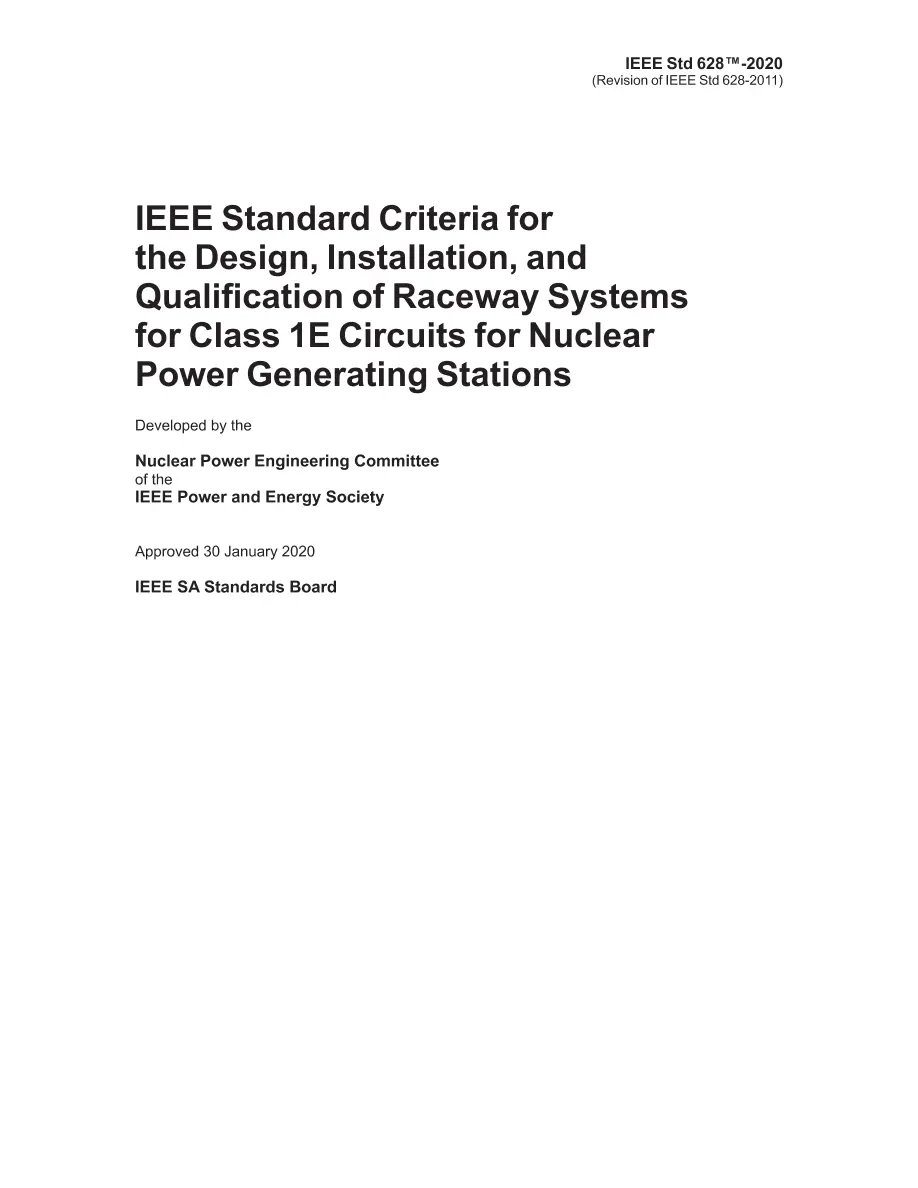

IEEE 628-2020

IEEE 628-2020 PDF

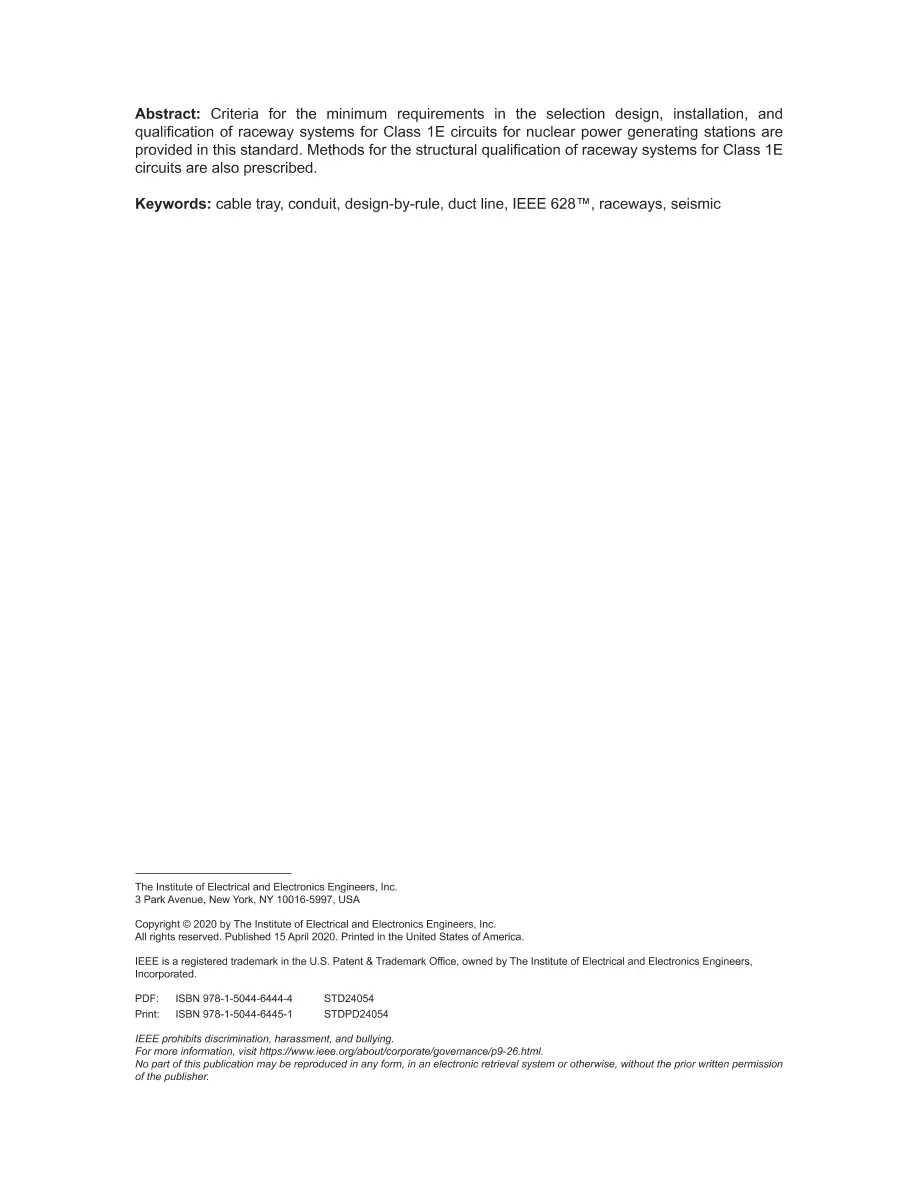

This standard contains the requirements for the design, installation, and qualification of raceway systems for Class 1E circuits external to electric equipment and components for nuclear power generating stations. Because aging and radiation have no known detrimental effects on metallic raceway systems and because nonmetallic raceway systems are limited to underground or embedded applications, aging and radiation are not considered in this standard. The embedments or structural members to which a support is attached are beyond the scope of this standard. The purpose of this standard is to provide criteria for the minimum requirements in the selection, design, installation, and qualification of raceway systems for Class 1E circuits for nuclear power generating stations. It also prescribes methods for the structural qualification of raceway systems for Class 1E circuits. Revision Standard - Active. Criteria for the minimum requirements in the selection design, installation, and qualification of raceway systems for Class 1E circuits for nuclear power generating stations are provided in this standard. Methods for the structural qualification of raceway systems for Class 1E circuits are also prescribed.
