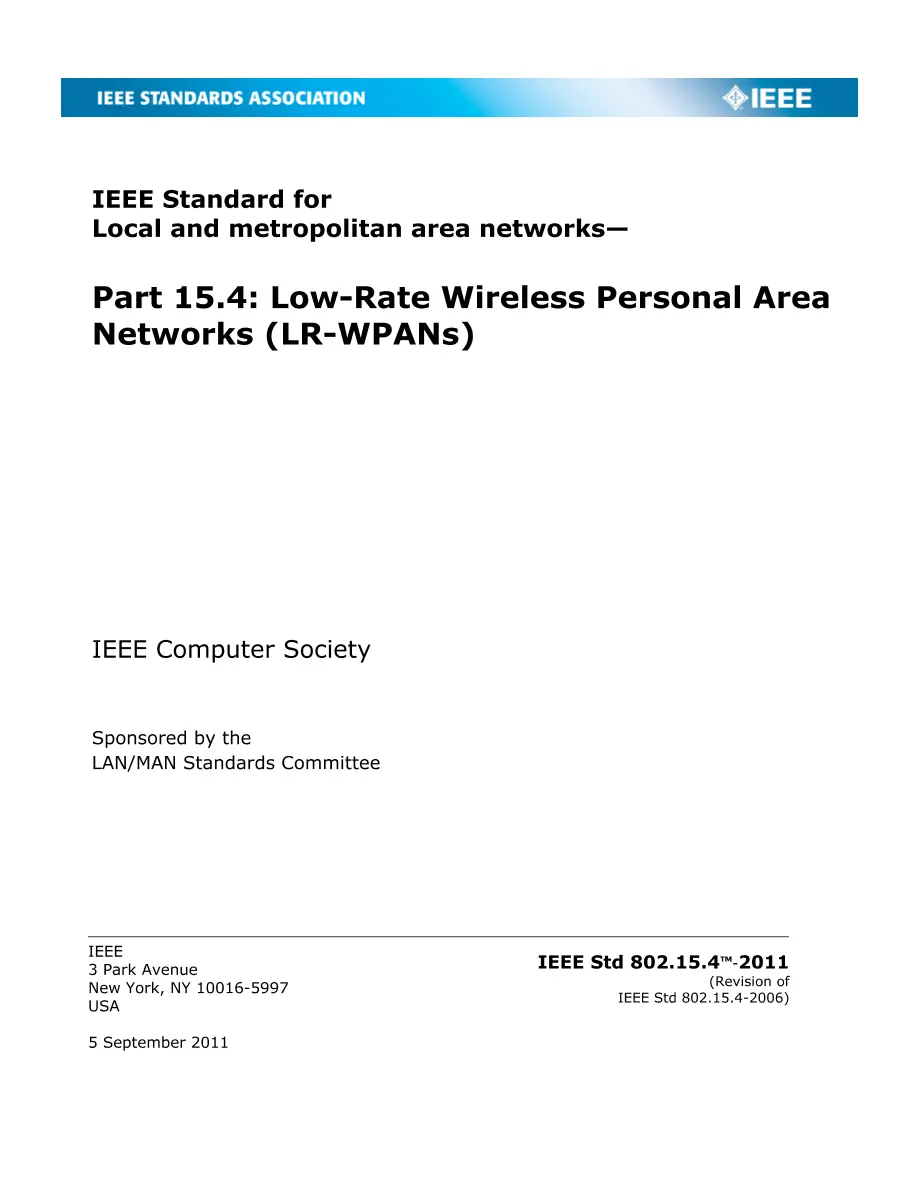

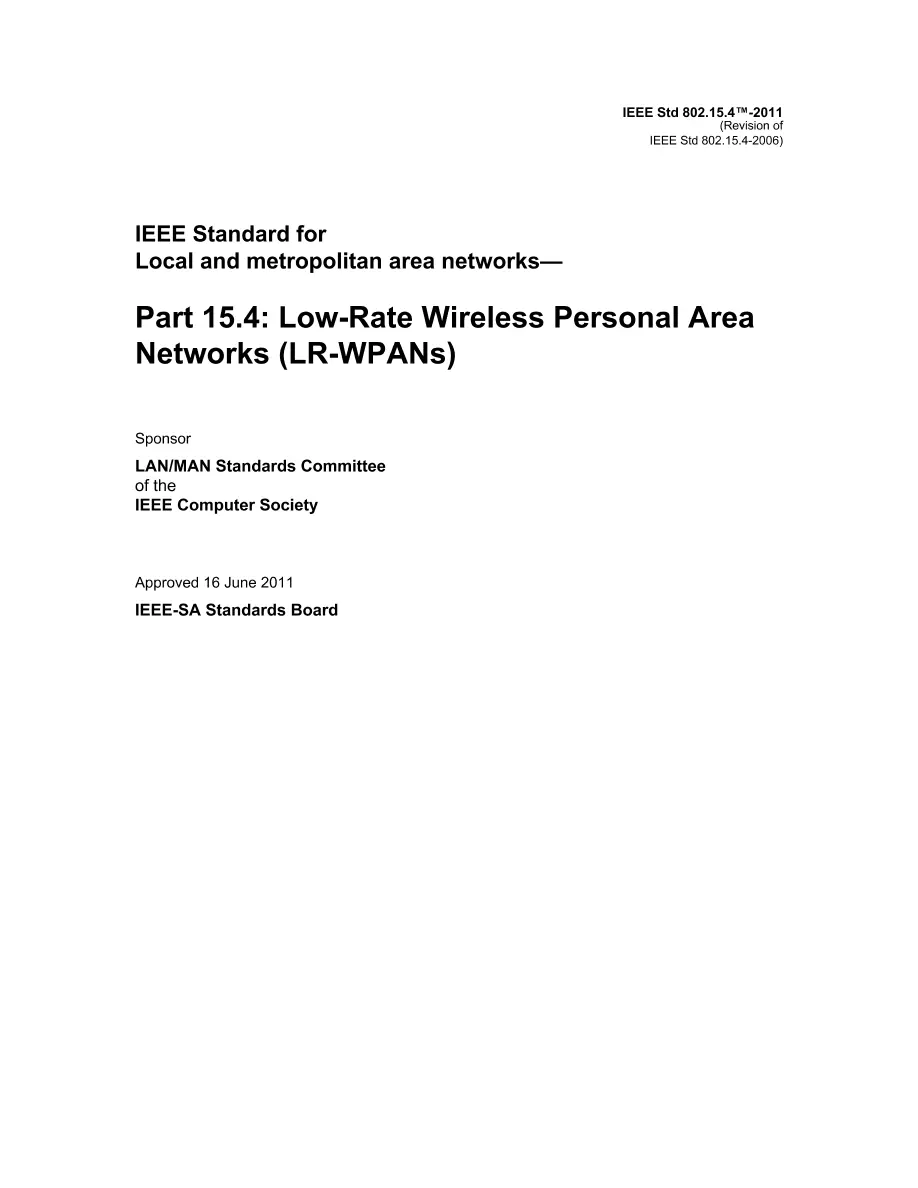

IEEE 802.15.4-2011

This standard defines the physical layer (PHY) and medium access control (MAC) sublayer specifications for low-data-rate wireless connectivity with fixed, portable, and moving devices with no battery or very limited battery consumption requirements typically operating in the personal operating space (POS) of 10 m. Physical layers (PHYs) are defined for -- Devices operating in the license-free 868-868.6 MHz, 902-928 MHz, and 2400-2483.5 MHz bands -- Devices with precision ranging, extended range, and enhanced robustness and mobility -- Devices operating according the Chinese regulations, Radio Management of P. R. of China doc. #6326360786867187500 or current document, for one or more of the 314-316 MHz, 430-434 MHz, and 779-787 MHz frequency bands -- Devices operating in the 950-956 MHz allocation in Japan and coexisting with passive tag systems in the band The standard provides for ultra low complexity, ultra low cost, ultra low power consumption, and low data rate wireless connectivity among inexpensive devices. The raw data rate is high enough (250 kb/s) to satisfy a set of applications but is also scaleable down to the needs of sensor and automation needs (20 kb/s or below) for wireless communications. In addition, one of the alternate PHYs provides precision ranging capability that is accurate to one meter. Multiple PHYs are defined to support a variety of frequency bands including -- 868-868.6 MHz -- 902-928 MHz -- 2400-2483.5 MHz -- 314-316 MHz, 430-434 MHz, and 779-787 MHz band for LR-WPAN systems in China -- 950-956 MHz in Japan Revision Standard - Superseded. The protocol and compatible interconnection for data communication devices using low-data-rate, low-power, and low-complexity short-range radio frequency (RF) transmissions in a wireless personal area network (WPAN) were defined in IEEE Std 802.15.4-2006. In this revision, the market applicability of IEEE Std 802.15.4 is extended, the ambiguities in the standard are removed, and the improvements learned from implementations of IEEE Std 802.15.4-2006 are included.
