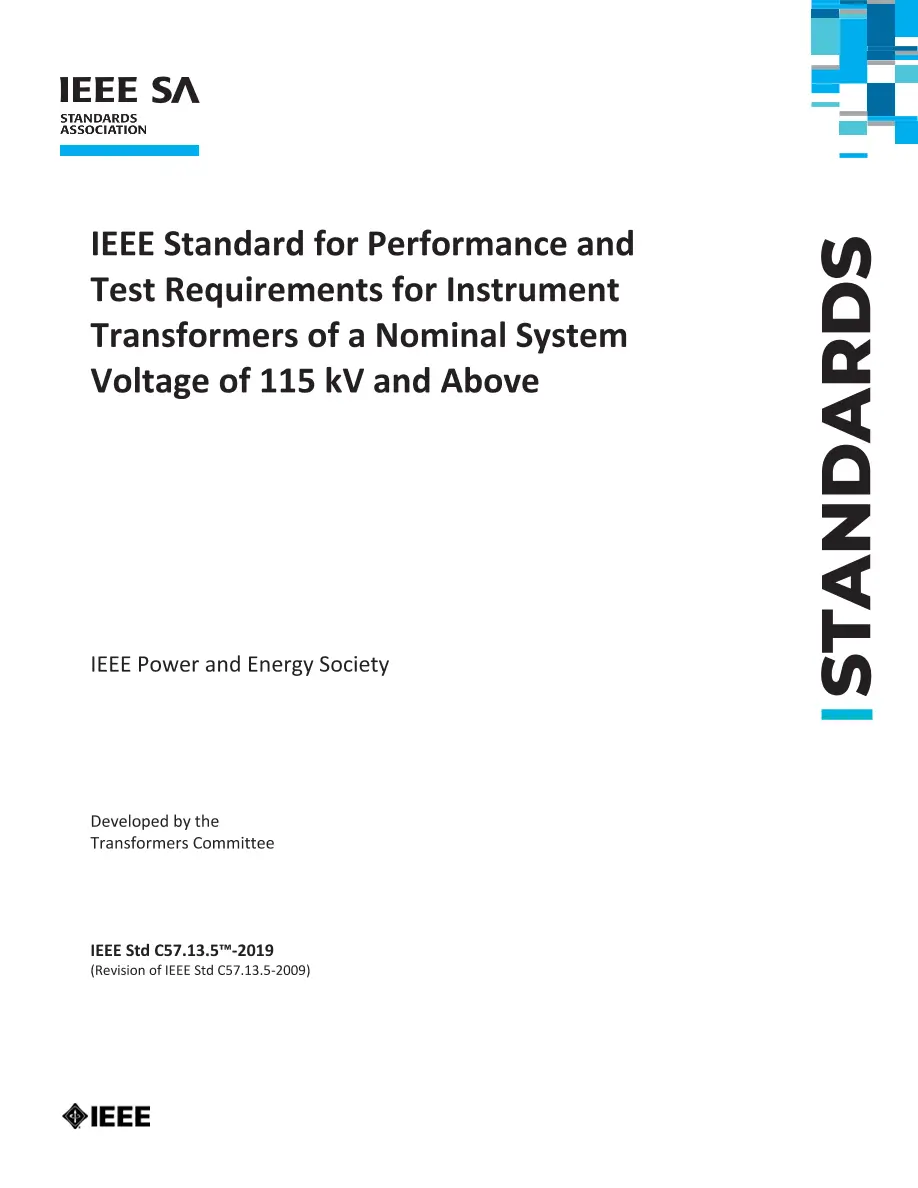

IEEE C57.13.5-2019

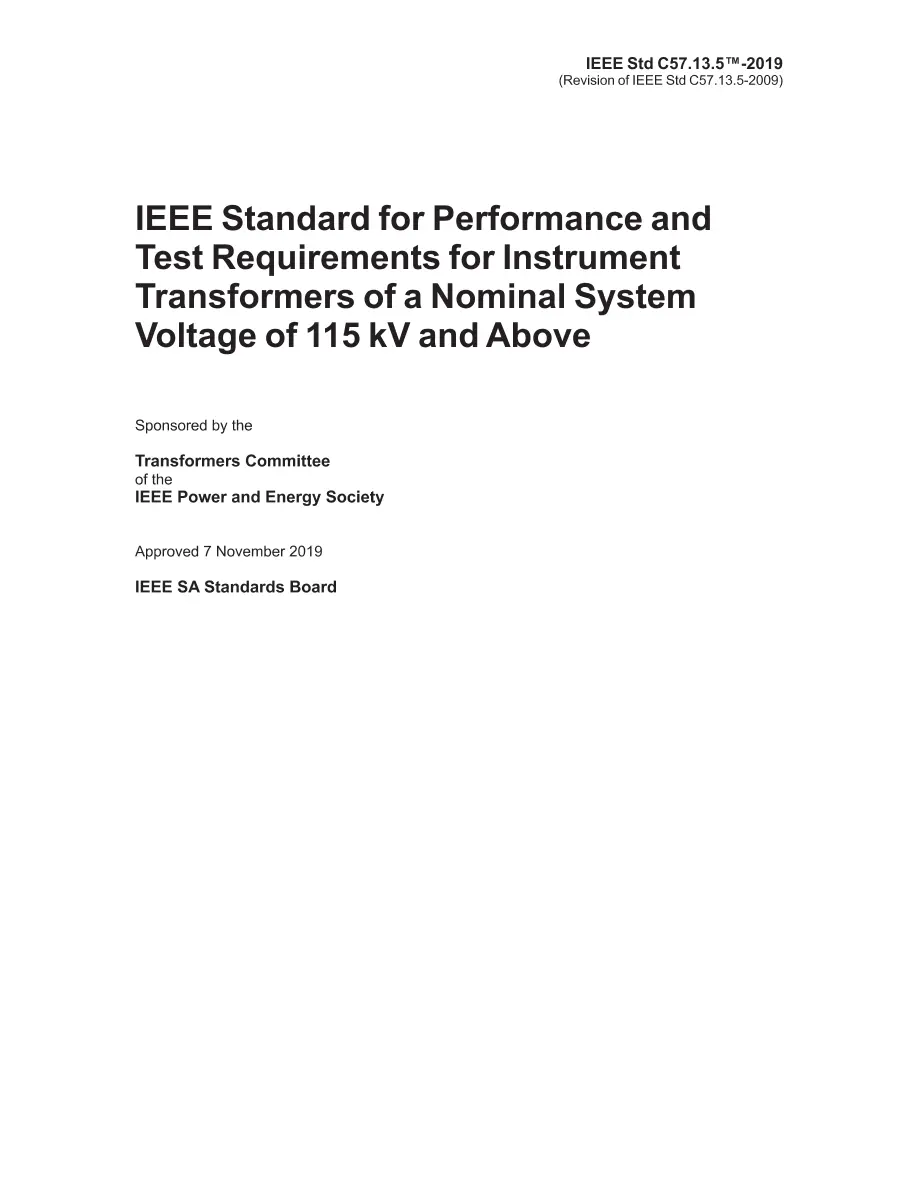

IEEE Standard for Performance and Test Requirements for Instrument Transformers of a Nominal System Voltage of 115 kV and Above

IEEE , 02/21/2020

Publisher: IEEE

File Format: PDF

$52.00$104.00


IEEE C57.13.5-2019 PDF

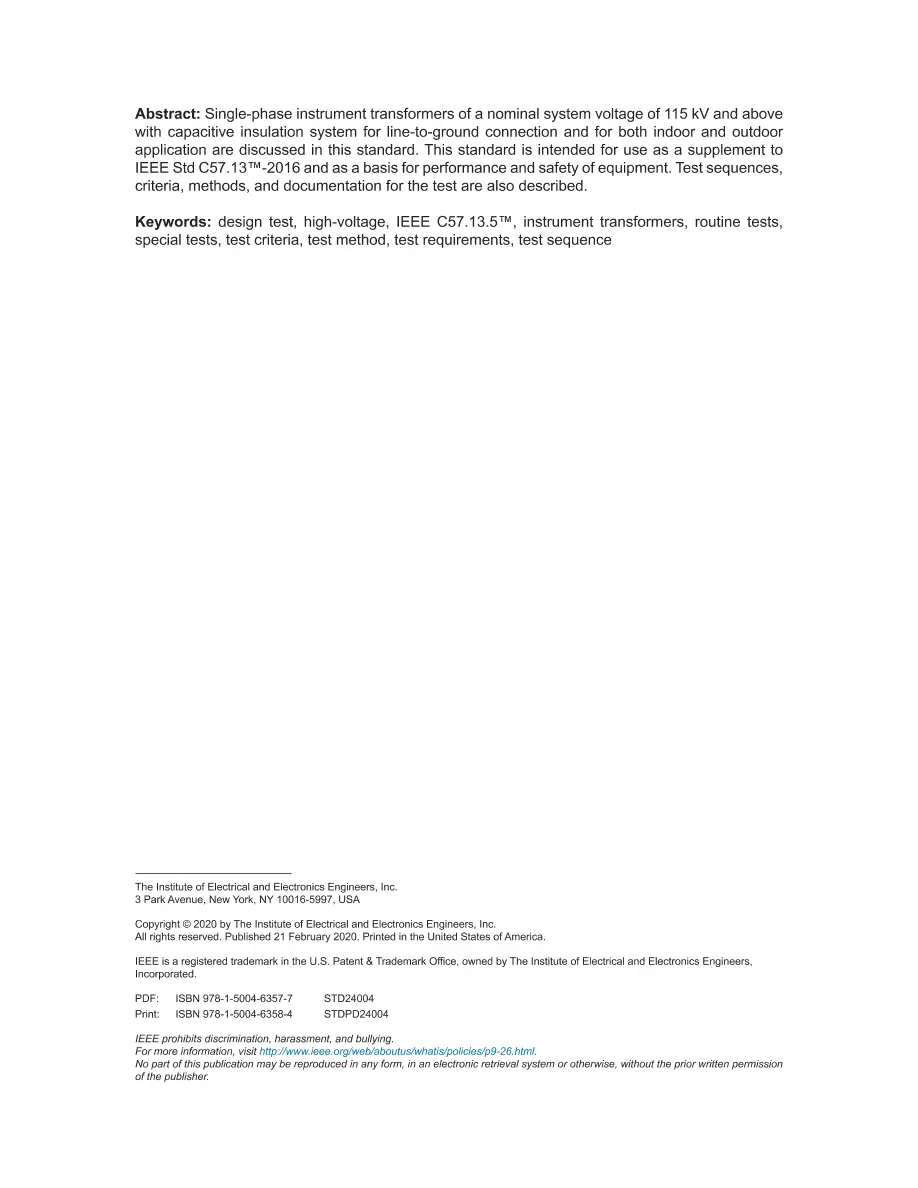

This standard is intended for use as a supplement to IEEE Std C57.13-2016 and as a basis for performance and safety of equipment.1 It also describes test sequences, criteria, methods, and documentation for tests. This standard applies to single-phase instrument transformers of a nominal system voltage of 115 kV and above with capacitive insulation system for line-to-ground connection and for both indoor and outdoor application. The purpose of this standard is to supplement the IEEE Std C57.13-2016 with specific requirements to single-phase instrument transformers of a nominal system voltage of 115 kV and above, with capacitive insulation system for line-to-ground connection, and for both indoor and outdoor application. Revision Standard - Active. Single-phase instrument transformers of a nominal system voltage of 115 kV and above with capacitive insulation system for line-to-ground connection and for both indoor and outdoor application are discussed in this standard. This standard is intended for use as a supplement to IEEE Std C57.13-2016 and as a basis for performance and safety of equipment. Test sequences, criteria, methods, and documentation for the test are also described.

IEEE C57.13.5-2019 History

IEEE C57.13.5-2019

IEEE C57.13.5-2019

$52.00 $104.00

IEEE C57.13.5-2009

IEEE C57.13.5-2009

$44.00 $89.00

IEEE C57.13.5-2003

IEEE C57.13.5-2003

$44.00 $89.00
