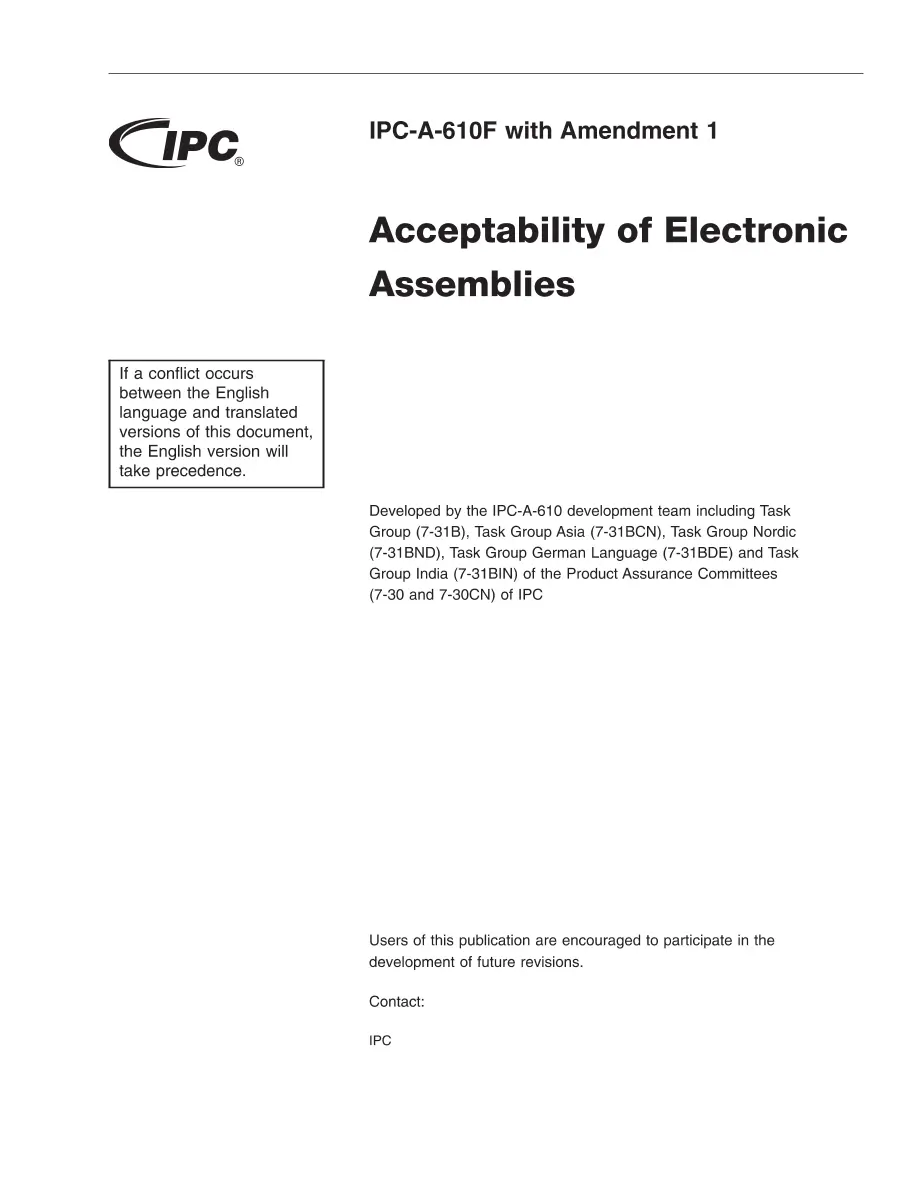

IPC A-610F-WAM1

Acceptability of Electronic Assemblies - Incorporates Amendment 1

Association Connecting Electronics Industries , 02/01/2016

Publisher: IPC

File Format: PDF

$91.00$182.00


IPC-A-610F with Amendment 1 incorporates the requirements of IPC-A-610F and IPC-A-610F Amendment 1 into one document. Criteria are presented in a seamless IPC-A-610 format, and there are no redline marks. This document is the equivalent to using IPC-A-610F and IPC-A-610F Amendment 1. IPC brings this version to industry to minimize confusion for those using both documents and those wishing to update their documentation with the latest available format.
IPC-A-610 is the most widely used electronics assembly standard in the world. A must for all quality assurance and assembly departments, IPC-A-610F illustrates industry-accepted workmanship criteria for electronics assemblies through detailed statements reflecting acceptable and defect conditions, supported by full-color photographs and illustrations. This revision includes two new SMT termination styles, as well as changes in plated-through hole fill and BGA void criteria. Additionally, wherever possible statements were modified to make readability easier and to enhance understanding - all without eleminating any requirements.
Major topics include:
  • flex attachment,
  • board-in-board,
  • part-on-part,
  • both lead-free and tin-lead criteria,
  • component orientation and soldering criteria for through hole,
  • SMT,
  • cleaning, marking, coating and laminate requirements.
IPC-A-610 is invaluable for all inspectors, operators and trainers. Revision F has 814 photos and illustrations of acceptability criteria - 86 of them new or updated. The document synchronizes to the requirements expressed in other industry consensus documents and is most often used with the material and process standard IPC J-STD-001.
