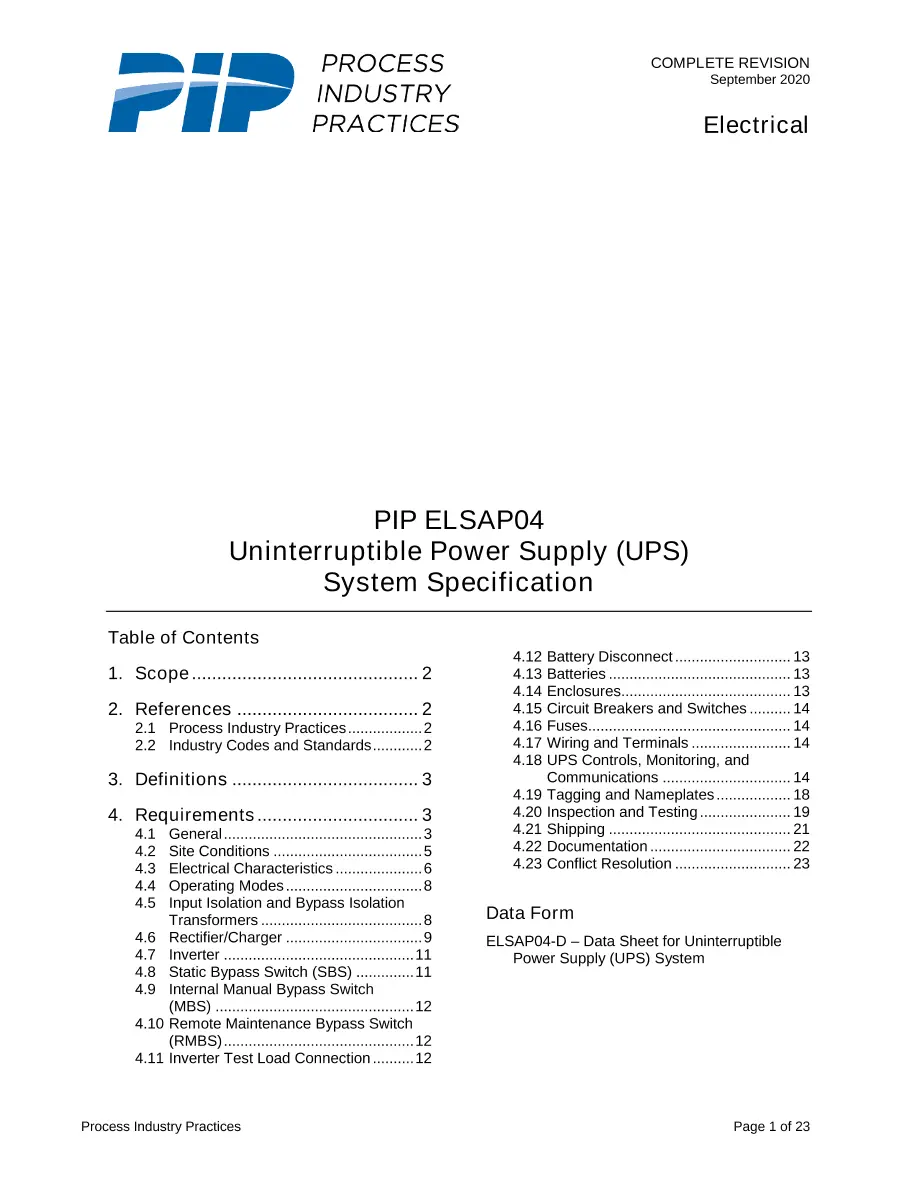

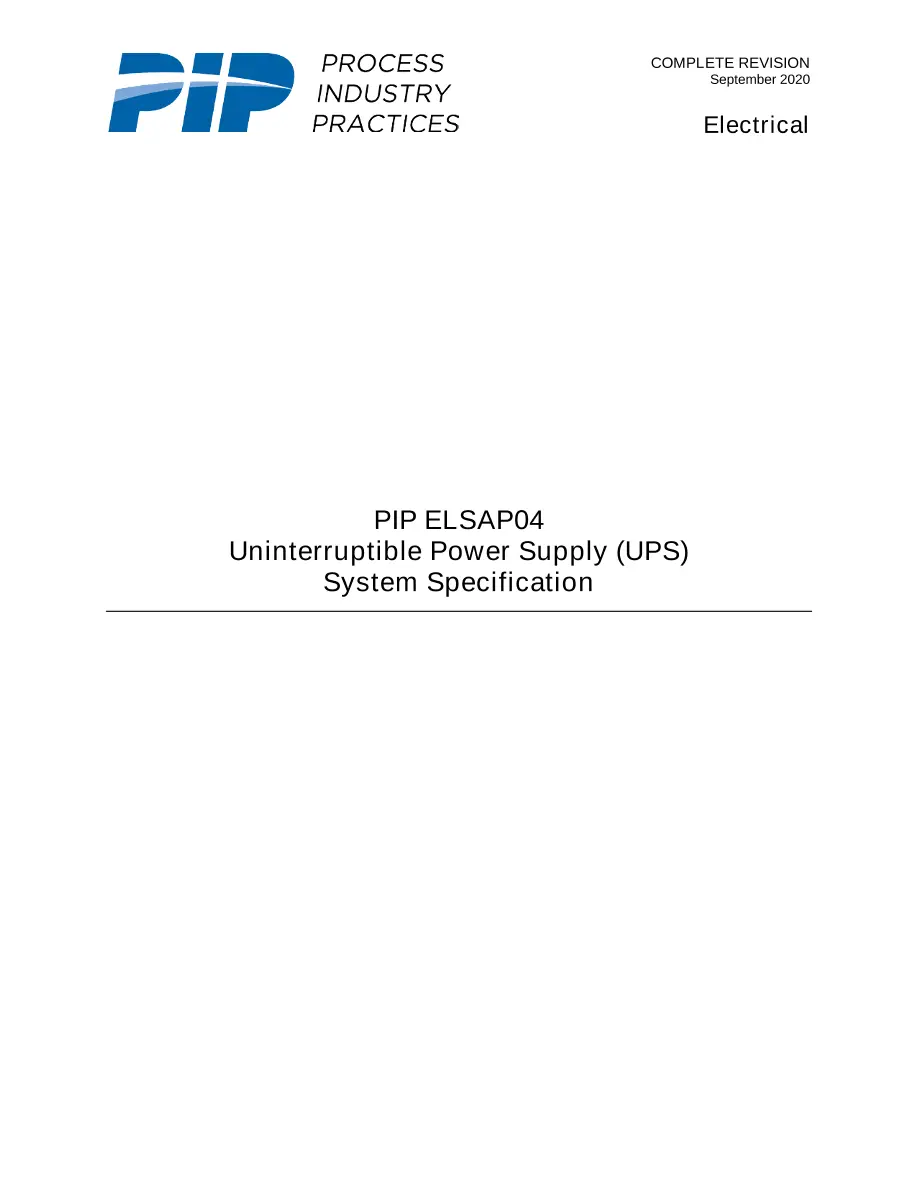

PDF Preview

PIP ELSAP04

Uninterruptible Power Supply (UPS) System Specification [Complete Revision]

Process Industry Practices , 09/01/2020

Publisher: PIP

File Format: PDF

$97.00$195.00


Standard By:Process Industry Practices , 09/01/2020
Published:09/01/2020
Pages:29
File Size:1 file , 390 KB
Language:English
Note:This product is unavailable in Ukraine, Russia, Belarus

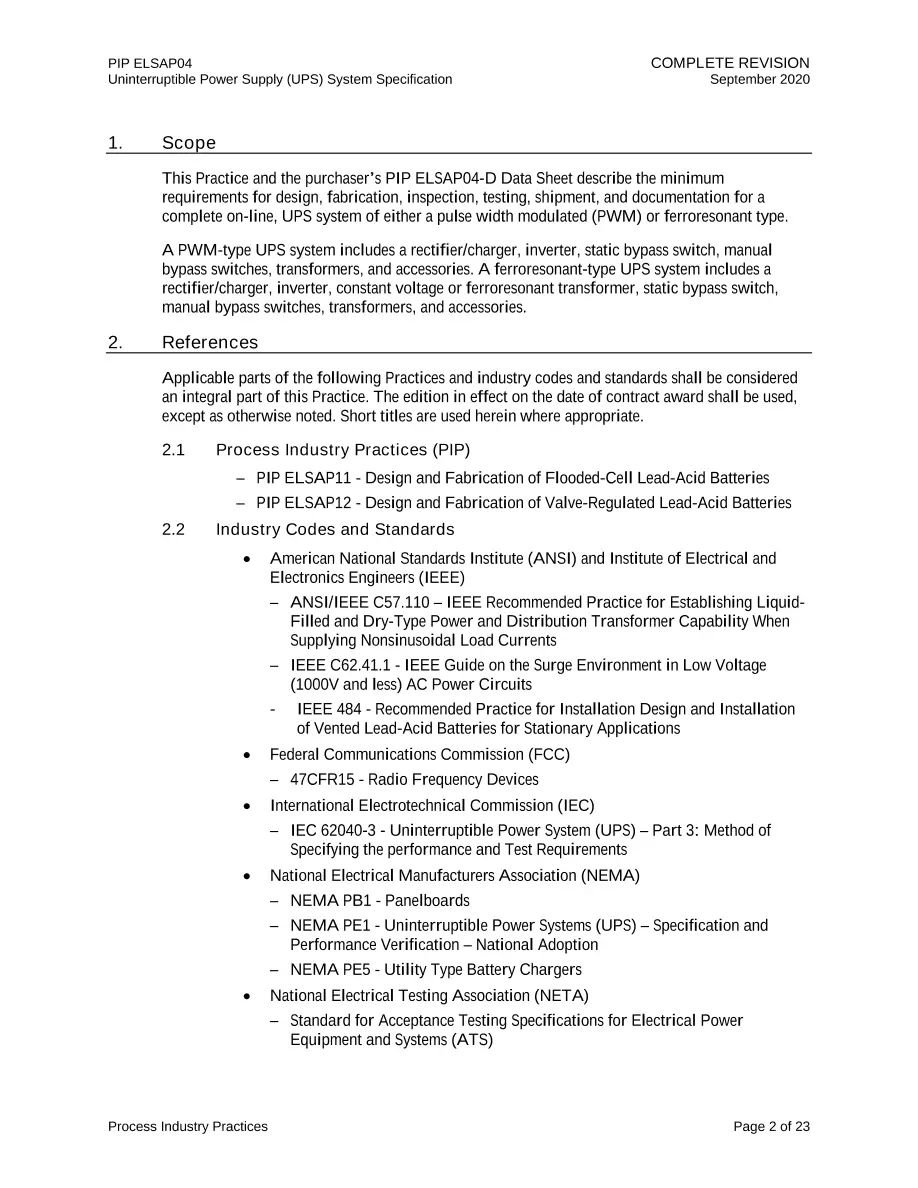

This Practice and the purchaser's PIP ELSAP04-D Data Sheet describe the minimum requirements for design, fabrication, inspection, testing, shipment, and documentation for a complete on-line, UPS system of either a pulse width modulated (PWM) or ferroresonant type.

A PWM-type UPS system includes a rectifier/charger, inverter, static bypass switch, manual bypass switches, transformers, and accessories. A ferroresonant-type UPS system includes a rectifier/charger, inverter, constant voltage or ferroresonant transformer, static bypass switch, manual bypass switches, transformers, and accessories.
