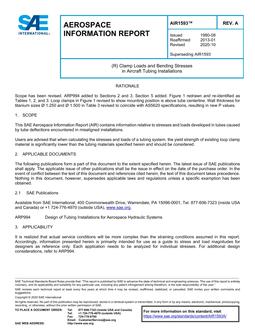

SAE AIR1593A

Clamp Loads and Bending Stresses in Aircraft Tubing Installations

SAE International , 10/09/2020

Publisher: SAE

File Format: PDF

$53.00$106.00

Description

Standard By:SAE International , 10/09/2020

Published:10/09/2020

Pages:16

File Size:1 file , 430 KB

Language:English

Note:This product is unavailable in Ukraine, Russia, Belarus

This SAE Aerospace Information Report (AIR) contains information relative to stresses and loads developed in tubes caused by tube deflections encountered in misaligned installations.

Users are advised that when calculating the stresses and loads of a tubing system, the yield strength of existing loop clamp material is significantly lower than the tubing materials specified herein and should be considered.
