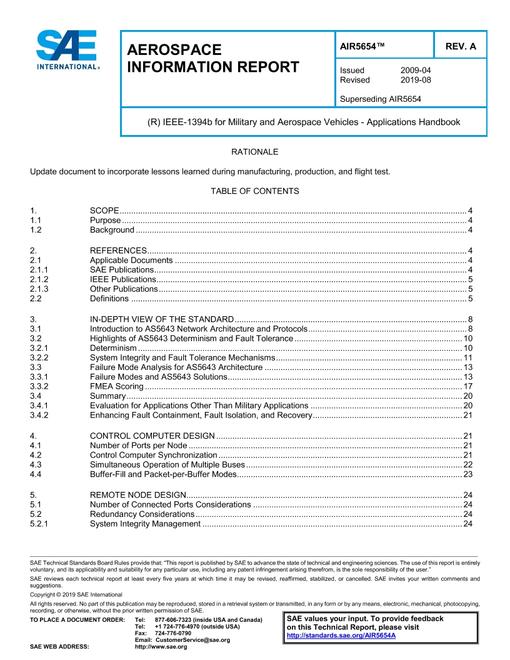

SAE AIR5654A

This Handbook is intended to accompany or incorporate AS5643, AS5643/1, AS5657, AS5706, and ARD5708. In addition, full understanding of this Handbook also requires knowledge of IEEE-1394-1995, IEEE-1394a, and IEEE-1394b standards.

This Handbook contains detailed explanations and architecture analysis on AS5643, bus timing and scheduling considerations, system redundancy design considerations, suggestions on AS5643-based system configurations, cable selection guidance, and lessons learned on failure modes.
