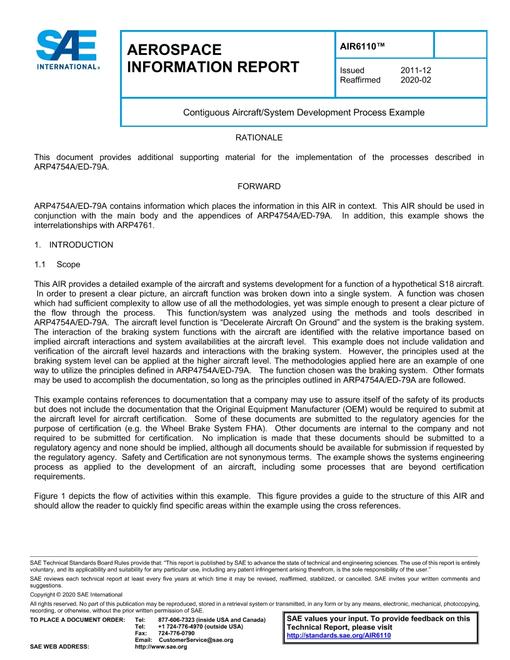

SAE AIR6110

This AIR provides a detailed example of the aircraft and systems development for a function of a hypothetical S18 aircraft. In order to present a clear picture, an aircraft function was broken down into a single system. A function was chosen which had sufficient complexity to allow use of all the methodologies, yet was simple enough to present a clear picture of the flow through the process. This function/system was analyzed using the methods and tools described in ARP4754A/ED-79A. The aircraft level function is ?Decelerate Aircraft On Ground? and the system is the braking system. The interaction of the braking system functions with the aircraft are identified with the relative importance based on implied aircraft interactions and system availabilities at the aircraft level. This example does not include validation and verification of the aircraft level hazards and interactions with the braking system. However, the principles used at the braking system level can be applied at the higher aircraft level. The methodologies applied here are an example of one way to utilize the principles defined in ARP4754A/ED-79A. The function chosen was the braking system. Other formats may be used to accomplish the documentation, so long as the principles outlined in ARP4754A/ED-79A are followed.
