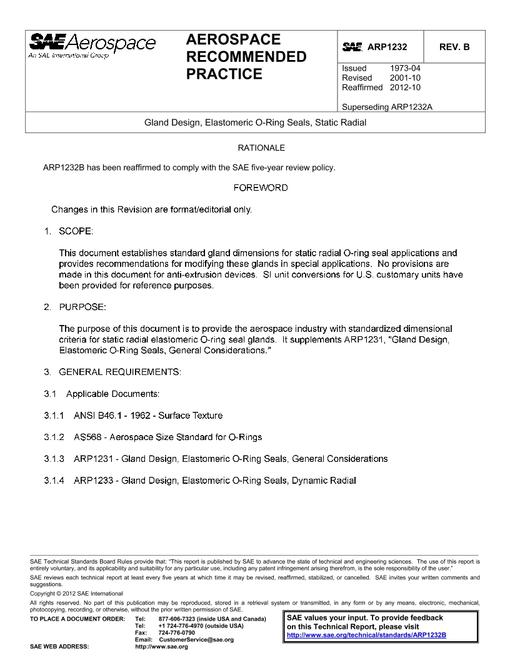

SAE ARP1232B

Gland Design, Elastomeric O-Ring Seals, Static Radial

SAE International , 10/19/2012

Publisher: SAE

File Format: PDF

$53.00$107.00

Description

Standard By:SAE International , 10/19/2012

Published:10/19/2012

File Size:1 file , 10 MB

Language:English

Note:This product is unavailable in Ukraine, Russia, Belarus

The purpose of this document is to provide the aerospace industry with standardized dimensional criteria for static radial elastomeric O-ring seals glands. It supplements ARP 1231, "Gland Design, Elastomeric O-ring Seals, General Considerations". This document establishes standard gland dimensions for static radial O-ring seal applications and provides recommendations for modifying these glands in applications. No provisions are made in this document for anti- extrusion devices. SI unit conversions for U.S. customary units have been provided for reference purposes.
