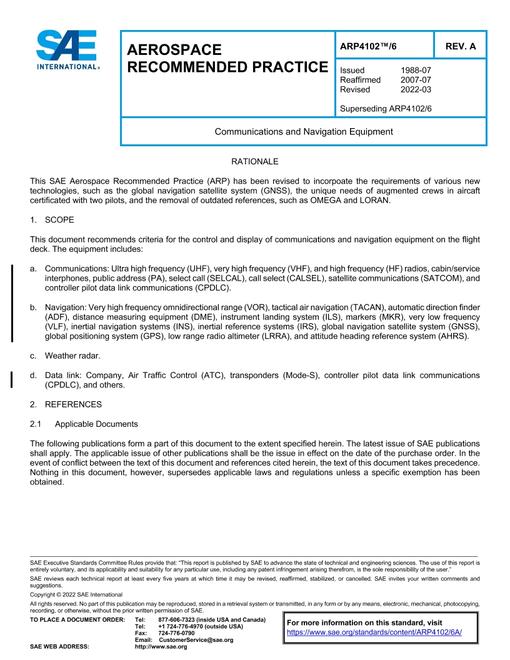

SAE ARP4102/6A

Communications and Navigation Equipment

SAE International , 03/21/2022

Publisher: SAE

File Format: PDF

$41.00$83.00

Standard By:SAE International , 03/21/2022

Published:03/21/2022

File Size:1 file , 140 KB

Language:English

Note:This product is unavailable in Ukraine, Russia, Belarus

This document recommends criteria for the control and display of communications and navigation equipment on the flight deck. The equipment includes:

a
Communications: Ultra high frequency (UHF), very high frequency (VHF), and high frequency (HF) radios, cabin/service interphones, public address (PA), select call (SELCAL), call select (CALSEL), satellite communications (SATCOM), and controller pilot data link communications (CPDLC).
b
Navigation: Very high frequency omnidirectional range (VOR), tactical air navigation (TACAN), automatic direction finder (ADF), distance measuring equipment (DME), instrument landing system (ILS), markers (MKR), very low frequency (VLF), inertial navigation systems (INS), inertial reference systems (IRS), global navigation satellite system (GNSS), global positioning system (GPS), low range radio altimeter (LRRA), and attitude heading reference system (AHRS).
c
Weather radar.
d
Data link: Company, Air Traffic Control (ATC), transponders (Mode-S), controller pilot data link communications (CPDLC), and others.
