SAE AS4832A

Gland Design: Nominal 3/8 Inch Cross Section for Compression-Type Seals

SAE International , 06/17/2019

Publisher: SAE

File Format: PDF

$48.00$97.00

Description

Standard By:SAE International , 06/17/2019

Published:06/17/2019

File Size:1 file , 790 KB

Language:English

Note:This product is unavailable in Ukraine, Russia, Belarus

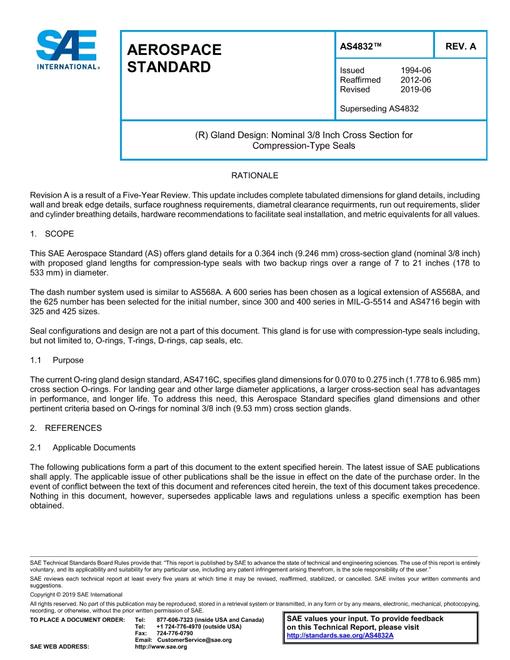

This SAE Aerospace Standard (AS) offers gland details for a 0.364 inch (9.246 mm) cross-section gland (nominal 3/8 inch) with proposed gland lengths for compression-type seals with two backup rings over a range of 7 to 21 inches (178 to 533 mm) in diameter.

The dash number system used is similar to AS568A. A 600 series has been chosen as a logical extension of AS568A, and the 625 number has been selected for the initial number, since 300 and 400 series in MIL-G-5514 and AS4716 begin with 325 and 425 sizes.

Seal configurations and design are not a part of this document. This gland is for use with compression-type seals including, but not limited to, O-rings, T-rings, D-rings, cap seals, etc.

SAE AS4832A

Gland Design: Nominal 3/8 Inch Cross Section for Compression-Type Seals

SAE AS4832A History

SAE AS4832B

SAE AS4832A

SAE AS4832
