SAE AS568F

Aerospace Size Standard for O-Rings

SAE International , 09/29/2020

Publisher: SAE

File Format: PDF

$49.00$98.00

Description

Standard By:SAE International , 09/29/2020

Published:09/29/2020

Pages:13

File Size:1 file , 490 KB

Language:English

Note:This product is unavailable in Ukraine, Russia, Belarus

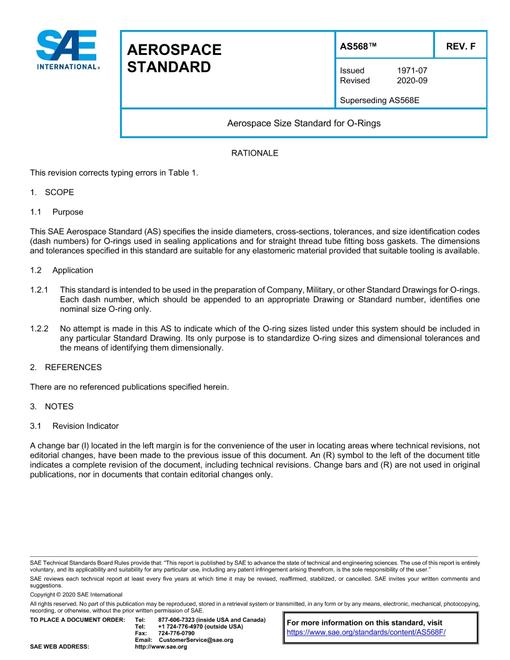

This SAE Aerospace Standard (AS) specifies the inside diameters, cross-sections, tolerances, and size identification codes (dash numbers) for O-rings used in sealing applications and for straight thread tube fitting boss gaskets. The dimensions and tolerances specified in this standard are suitable for any elastomeric material provided that suitable tooling is available.
