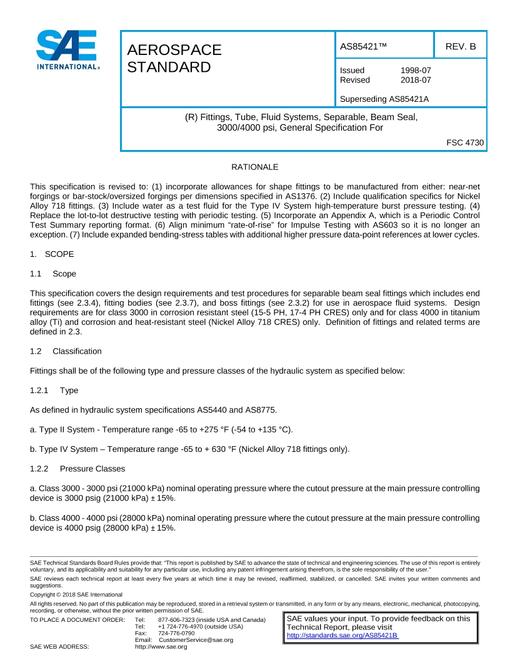

SAE AS85421B

Fittings, Tube, Fluid Systems, Separable, Beam Seal, 3000/4000 psi, General Specification For

SAE International , 07/31/2018

Publisher: SAE

File Format: PDF

$54.00$109.00

Description

Standard By:SAE International , 07/31/2018

Published:07/31/2018

Pages:24

File Size:1 file , 250 KB

Language:English

Note:This product is unavailable in Ukraine, Russia, Belarus

This specification covers the design requirements and test procedures for separable beam seal fittings which includes end fittings (see 2.3.4), fitting bodies (see 2.3.7), and boss fittings (see 2.3.2) for use in aerospace fluid systems. Design requirements are for class 3000 in corrosion resistant steel (15-5 PH, 17-4 PH CRES) only and for class 4000 in titanium alloy (Ti) and corrosion and heat-resistant steel (Nickel Alloy 718 CRES) only. Definition of fittings and related terms are defined in 2.3.
