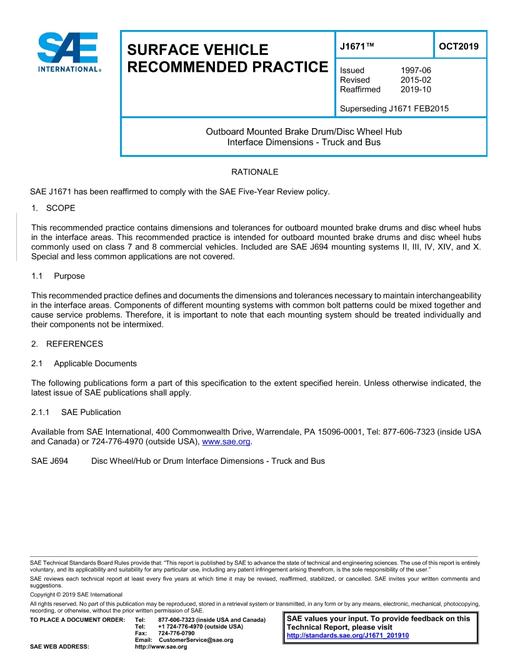

SAE J1671_201910

Outboard Mounted Brake Drum/Disc Wheel Hub Interface Dimensions - Truck and Bus

SAE International , 10/17/2019

Publisher: SAE

File Format: PDF

$33.00$66.00

Description

Standard By:SAE International , 10/17/2019

Published:10/17/2019

Pages:6

File Size:1 file , 770 KB

Language:English

Note:This product is unavailable in Ukraine, Russia, Belarus

This recommended practice contains dimensions and tolerances for outboard mounted brake drums and disc wheel hubs in the interface areas. This recommended practice is intended for outboard mounted brake drums and disc wheel hubs commonly used on class 7 and 8 commercial vehicles. Included are SAE J694 mounting systems II, III, IV, XIV, and X. Special and less common applications are not covered.
