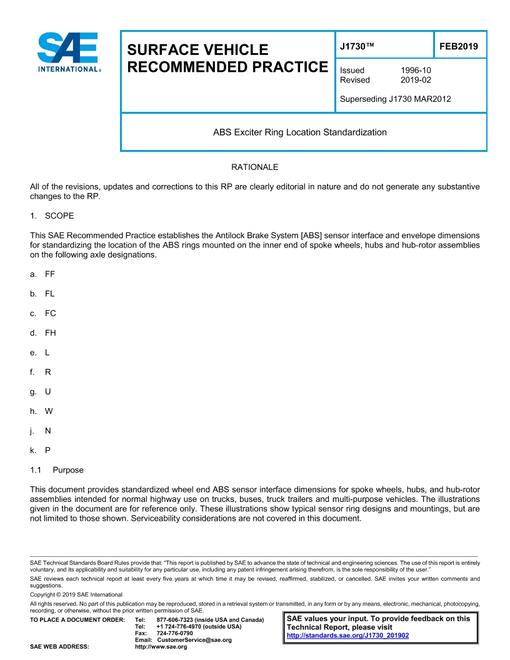

SAE J1730_201902

ABS Exciter Ring Location Standardization

SAE International , 02/11/2019

Publisher: SAE

File Format: PDF

$42.00$84.00

Description

Standard By:SAE International , 02/11/2019

Published:02/11/2019

File Size:1 file , 650 KB

Language:English

Note:This product is unavailable in Ukraine, Russia, Belarus

This SAE Recommended Practice establishes the Antilock Brake System [ABS] sensor interface and envelope dimensions for standardizing the location of the ABS rings mounted on the inner end of spoke wheels, hubs and hub-rotor assemblies on the following axle designations.

a. FF
b. FL
c. FC
d. FH
e. L
f. R
g. U
h. W
j. N
k. P
