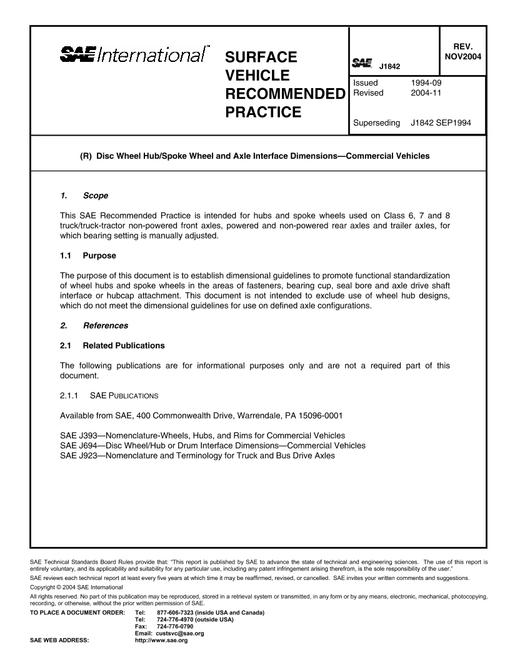

SAE J1842_200411

Disc Wheel Hub/Spoke Wheel and Axle Interface Dimensions--Commercial Vehicles

SAE International , 11/22/2004

Publisher: SAE

File Format: PDF

$37.00$74.00

Description

Standard By:SAE International , 11/22/2004

Published:11/22/2004

File Size:1 file , 200 KB

Language:English

Note:This product is unavailable in Ukraine, Russia, Belarus

This SAE Recommended Practice is intended for hubs and spoke wheels used on Class 6, 7 and 8 truck/truck-tractor non-powered front axles, powered and non-powered rear axles, and trailer axles for which bearing setting is manually adjusted.

The purpose of this document is to establish dimensional guidelines to promote a functional standardization of wheel hubs and spoke wheels in the areas of fasteners, bearing cups, seal bore, and axle drive shaft or hub cap attachment. This document is not intended to exclude the use of wheel hub designs which do not meet the dimensional guidelines for use on defined axle configurations.
