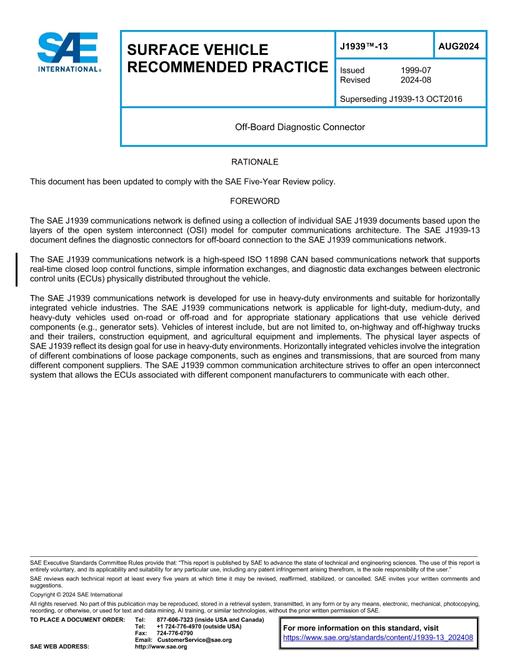

SAE J1939/13_202408

Off-Board Diagnostic Connector

SAE International , 08/12/2024

Publisher: SAE

File Format: PDF

$54.00$108.00

Description

Standard By:SAE International , 08/12/2024

Published:08/12/2024

File Size:1 file , 1.1 MB

Language:English

Note:This product is restricted and cannot be purchased in the following countries Ukraine, Russia, Belarus

SAE J1939-13 specifies the diagnostic connectors used for off-board connection to a vehicle’s SAE J1939 communication links. The defined diagnostic connectors support connection to the twisted shielded pair media (refer to SAE J1939-11), the unshielded twisted pair (refer to SAE J1939-15), the twisted pair (refer to SAE J1939-14), and the twisted unshielded quad media (refer to ISO 11783-2).
