SAE J1953_202306

Brake-Stroke Indicator Design Guideline for Cam or Disc Air-Brake Actuators

SAE International , 06/19/2023

Publisher: SAE

File Format: PDF

$28.00$57.00

Description

Standard By:SAE International , 06/19/2023

Published:06/19/2023

File Size:1 file , 740 KB

Language:English

Note:This product is unavailable in Ukraine, Russia, Belarus

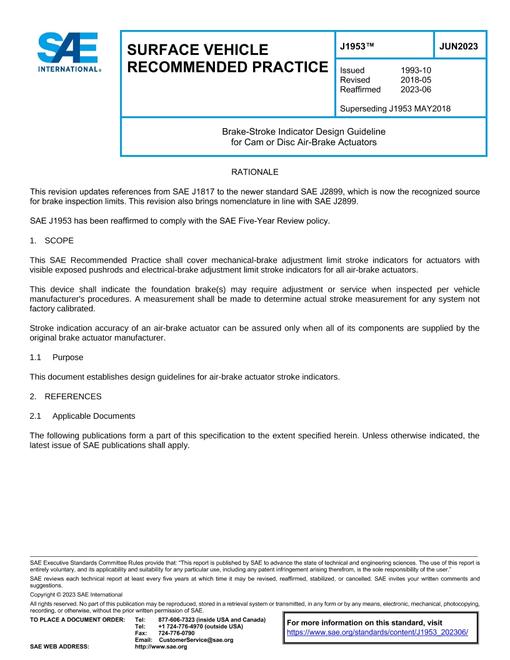

SAE J1953_202306 PDF

This SAE Recommended Practice shall cover mechanical-brake adjustment limit stroke indicators for actuators with visible exposed pushrods and electrical-brake adjustment limit stroke indicators for all air-brake actuators.

This device shall indicate the foundation brake(s) may require adjustment or service when inspected per vehicle manufacturer's procedures. A measurement shall be made to determine actual stroke measurement for any system not factory calibrated.

Stroke indication accuracy of an air-brake actuator can be assured only when all of its components are supplied by the original brake actuator manufacturer.
